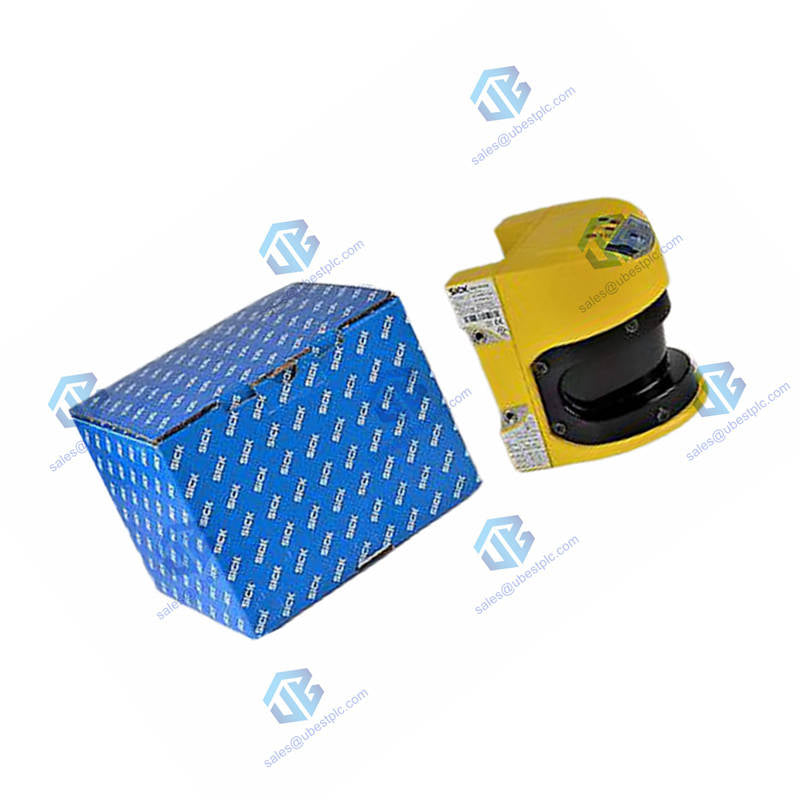

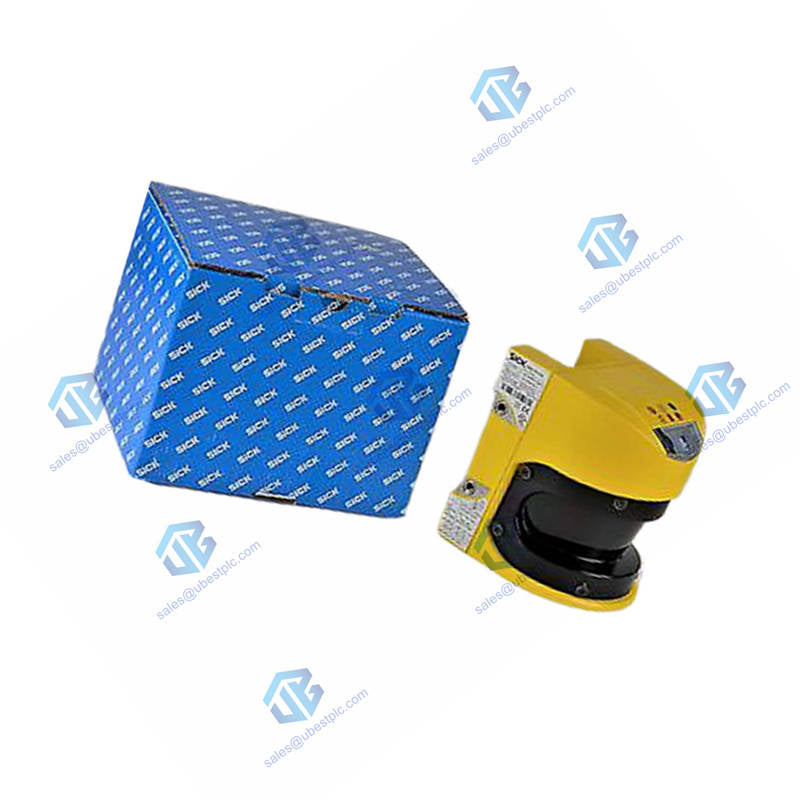

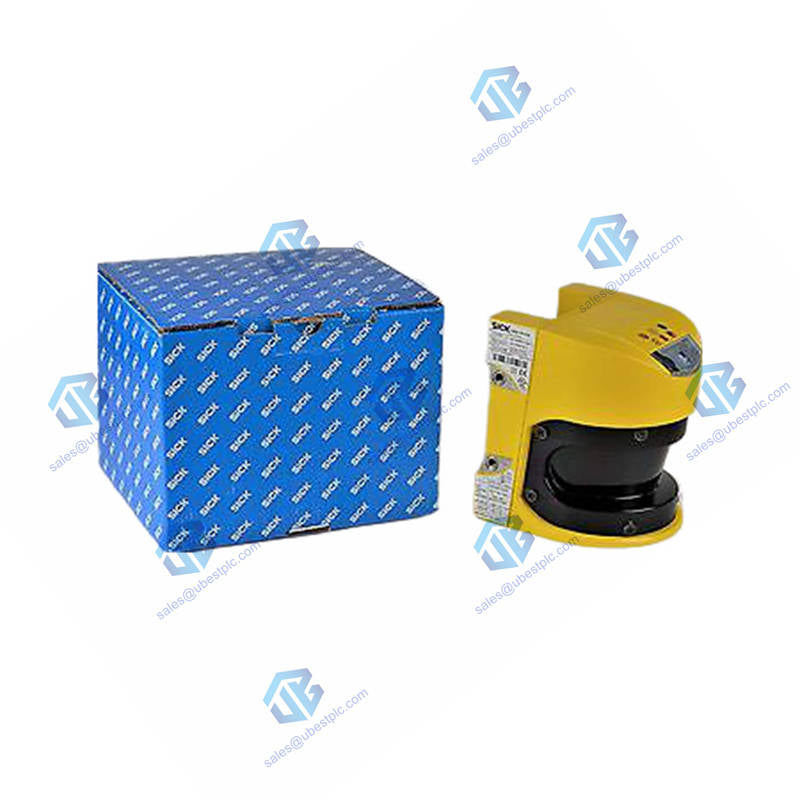

SICK S30A-7011BA Safety Laser Scanner | S3000 Standard Series
The S30A-7011BA is a cost-effective safety laser scanner from SICK's S3000 Standard series. It provides reliable protection for hazardous points and entry zones. This device offers simple configuration with solid performance for basic safety applications.
Core Specifications
- Model & Part: SICK S30A-7011BA (Alternative: 1023890).
- Series: Part of the S3000 Standard economic safety line.
- Measuring Range: Up to 8 meters detection distance.
- Response Time: Fast 60 ms reaction capability.
- Scanning Angle: Wide 190° coverage area.
- Resolution: Fine 14 mm detection capability.
Electrical & Connection Details
- Power Supply: 24V DC (16.8-28.8V range).
- Output Type: 2 PNP semiconductors with protection.
- Connection: System plug with/without cable, M12 compatible.
- Short-Circuit Protection: Yes, with cross-circuit monitoring.
- Configuration Memory: Integrated in system plug.
Physical & Environmental Ratings
- Enclosure Rating: IP65 for dust and water protection.
- Housing Material: Durable aluminum die cast.
- Weight: 3.3 kg robust construction.
- Shock Resistance: 16g for 16ms (IEC 60068-2-29).
- Temperature Range: Standard industrial operating temperatures.
Safety Field Configuration
- Protective Field: 7 meter standard protection range.
- Warning Field: Extended 49 meter alert zone.
- Simultaneous Fields: Up to 4 protective fields monitored.
- Field Sets: 1 configurable set with 4 fields.
- Monitoring Cases: 1 primary case supported.
- Resolution Options: Selectable 30-150 mm for different detections.
Key Features & Applications
- Primary Use: Protection of hazardous points and entry zones.
- AGV Safety: Ideal for automated guided vehicle protection.
- Detection Types: Configurable for hand, leg or body detection.
- Communication: Integrated EFI interface for SICK controllers.
- Reference Function: Contour as reference for vertical setups.
- Monitoring: Optional external device monitoring (EDM).
Configuration & Software
- Configuration Tool: Use SICK CDS software on PC/laptop.
- Field Definition: Easily define protective and warning fields.
- Device Replacement: Quick swap using system plug memory.
- No Laptop Needed: For basic field replacement operations.
Packaging & Support
- Packaging: Includes scanner unit with documentation.
- Shipping: Global delivery via FedEx, UPS, and DHL.
- Warranty: 12-month product warranty period.
Frequently Asked Questions
- What types of applications is this scanner best suited for?
The S30A-7011BA excels at simple point protection, machine access guards, and AGV safety. It's designed for applications needing basic zone protection without complex field patterns.
- Can I monitor multiple zones simultaneously?
Yes, with a SICK safety controller, it can monitor up to 4 protective fields at once. This is useful for different danger zones around equipment.
- How does the configuration memory in the system plug help?
It stores all safety settings. If you need to replace the scanner, simply transfer the system plug to maintain identical configuration without reprogramming.
- What detection resolution should I choose?
Use 30mm for body detection, 70mm for leg detection, or 150mm for general presence detection. The 14mm default offers high sensitivity.
- Is this suitable for mobile equipment like AGVs?
Yes, its shock resistance and compact design make it ideal for automated guided vehicles and mobile platforms needing front/side protection.
