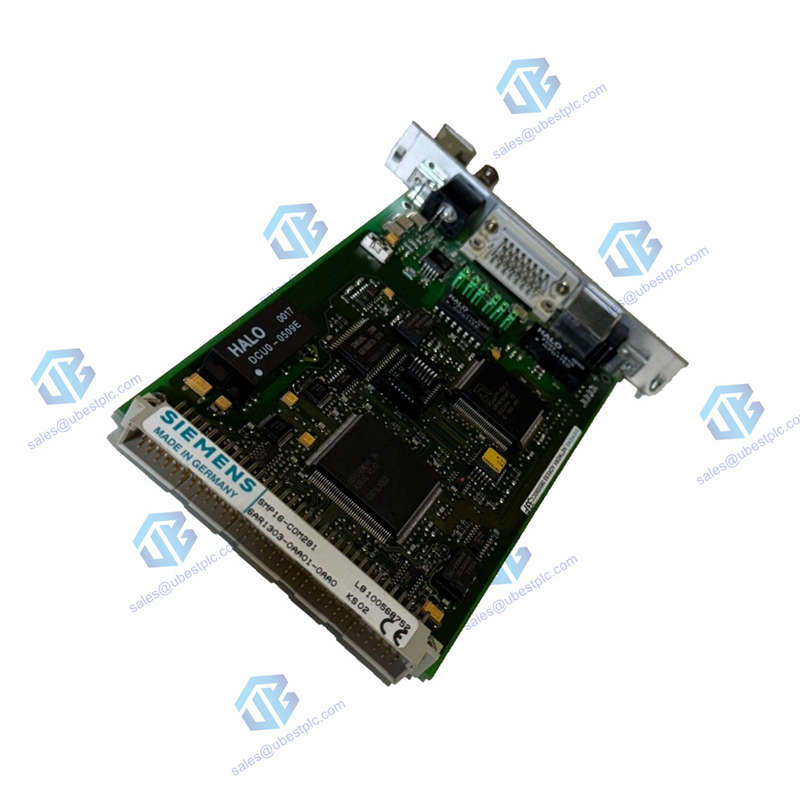

Siemens 6AR1303-0AA01-0AA0 Ethernet Interface Module

Reliable network connectivity for automation. The Siemens 6AR1303-0AA01-0AA0 is a compact interface module. It provides 10 Mbit/s Ethernet communication. Ideal for integrating devices into control networks.

Module Overview & Key Uses

• Enables Ethernet connection for industrial I/O devices.
• Simple integration into existing automation networks.
• Compact and lightweight design for easy panel mounting.
• Suitable for a wide range of industrial environments.
• Provides a standardized communication gateway.

Detailed Technical Data

• Brand & Part No.: Siemens 6AR1303-0AA01-0AA0
• Product Type: Interface Module
• Network Protocol: Industrial Ethernet (10BASE-T)
• Transmission Speed: 10 Mbit/s
• Operating Voltage: Typically 24 VDC (via connected system)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -25°C to +70°C
• Relative Humidity: Up to 80% (non-condensing)
• Maximum Altitude: 1000 m above sea level
• Protection Class: IP20 (for indoor cabinets)
• Certifications: CE Mark
• Dimensions (Approx.): Compact form factor
• Weight: Approx. 0.49 lbs (222 grams)

Compatibility & Integration

The Siemens 6AR1303-0AA01-0AA0 is designed for Siemens I/O systems. It acts as a communication adapter. It allows remote I/O racks or devices to connect to a central PLC via Ethernet, simplifying wiring and data exchange.

Shipping & Warranty Information

We ship worldwide using FedEx, UPS, and DHL. This interface module is new and comes with a reliable 12-month warranty for quality assurance.

Technical FAQ

What is the primary function of this interface module?

It converts the backplane communication of a remote I/O station into a standard 10 Mbit/s Ethernet signal, allowing it to communicate with a Siemens PLC (like an S7-1500) over a network cable.

Is this module a managed or unmanaged Ethernet switch?

It is not a switch. It is a protocol-specific interface (often for PROFINET or Siemens internal protocols) that provides a single Ethernet port for connecting an I/O station to a network.

What type of Ethernet cable should I use?

Use a standard CAT5e or higher shielded (STP) industrial Ethernet cable for reliable communication in electrically noisy environments.

Can I use this module to connect non-Siemens devices?

No. This is a proprietary Siemens interface designed specifically for use within certain Siemens remote I/O families (like ET 200S/ET 200M with specific IM modules).

From a network setup perspective, what is a key configuration step?

You must set a unique device name (Station Name) for the interface module in Siemens TIA Portal or STEP 7. The PLC controller identifies the connected I/O station using this name, not just an IP address.
