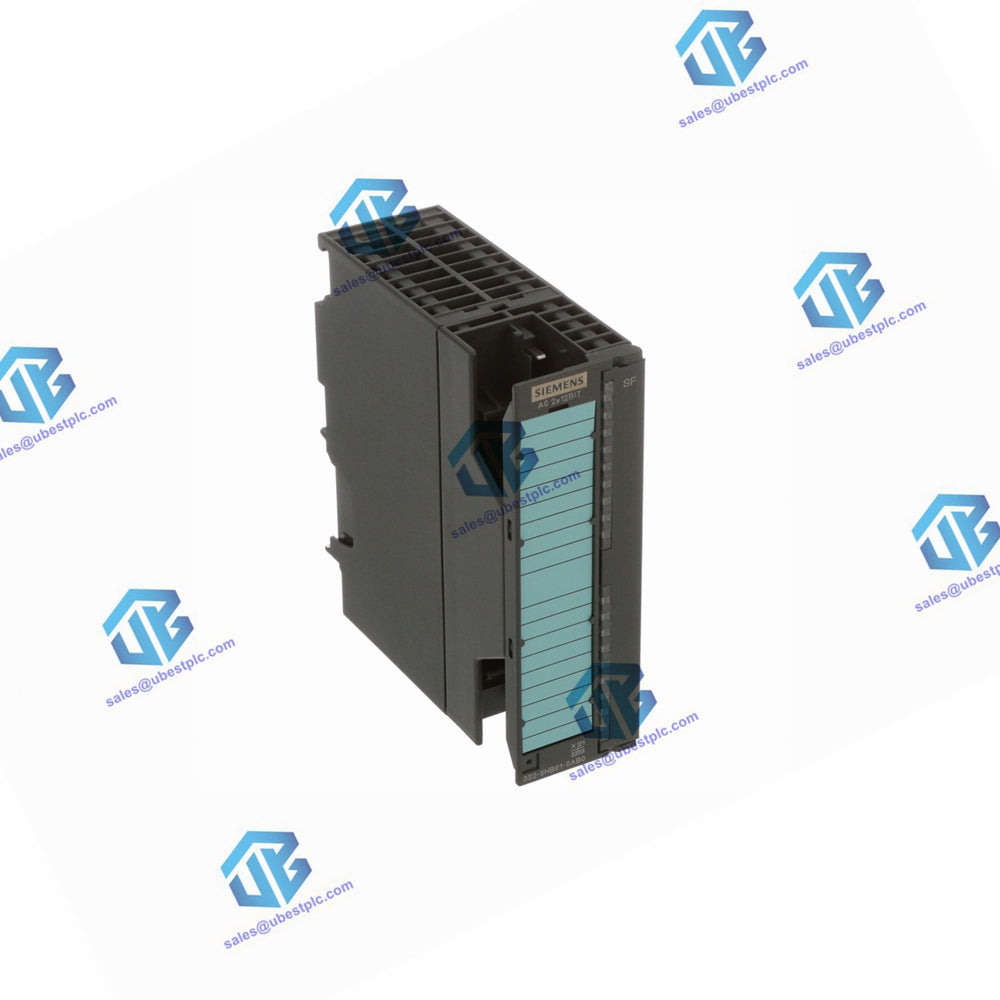

Siemens | 6ES7334-0CE01-0AA0 Analog I/O Module
Manufacturer:
Siemens
Product No.:
6ES7334-0CE01-0AA0
Condition:
In Stock
Product Type:
Analog I/O Module
Product Origin:
DE
Weight:
285g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Siemens Product Information | |
|---|---|
| Order Number: | 6ES7334-0CE01-0AA0 |
Siemens Dimensions and Weight | |
|---|---|
| Dimensions (W x H x D): | 40 x 125 x 117 mm |
| Weight: | Approx. 285 g |
Siemens Module-Specific Data | |
|---|---|
| Supports Isochronous Mode: | No |
| Number of Inputs: | 4 |
| Number of Outputs: | 2 |
| Cable Length (Shielded, Max.): | 200 m |
Siemens Voltages, Currents, Electrical Potentials | |
|---|---|
| Rated Supply Voltage of the Rated Electronics and Load Voltage L+: | 24 VDC |
| Electrical Isolation: | Yes, between channels and electronics power supply |
| Maximum Potential Difference: | 1 VDC between inputs and MANA, and between inputs |
| Isolation Test Voltage: | 500 VDC |
| Current Consumption from Backplane Bus: | Max. 55 mA |
| Current Consumption from Supply and Load Voltage L+ (No Load): | Max. 110 mA |
| Power Loss of the Module: | Typ. 3 W |
Siemens Generation of Analog Input Values | |
|---|---|
| Measuring Principle: | Resolution (including overshoot range): 8 bits |
| Integration/Conversion Time (Per Channel): | Programmable, <500 µs |
| Basic Execution Time of Inputs: | Max. 5 ms |
| Time Constant of the Input Filter: | 0.8 ms |
Siemens Generation of Analog Output Values | |
|---|---|
| Resolution (including overshoot range): | 8 bits |
| Conversion Time (Per Channel): | Programmable, <500 µs |
| Basic Execution Time of Outputs: | Max. 5 ms |
| Transient Recovery Time: | 0.3 ms (resistive load), 3.0 ms (capacitive load), 0.3 ms (inductive load) |
Siemens Interference Frequency Suppression, Error Limits for Inputs | |
|---|---|
| Interference Frequency Suppression at F = n (f1 ± 1 %) (f1 = interference frequency): | Common mode interference (Vpp < 1 V): > 60 dB |
| Crosstalk Between Outputs: | > 50 dB |
| Operational Limit (Across Entire Temperature Range): | Relative to the measurement range end value in the selected input range: Voltage Input: ±0.9% Current Input: ±0.8% |
| Basic Error Limit (Operational Limit at 25 °C): | Relative to the measurement range end value in the selected input range: Voltage Input: ±0.7% Current Input: ±0.6% |
| Temperature Error (Relative to Input Range): | ±0.005%/K |
| Linearity Error (Relative to Input Range): | ±0.05% |
| Repeat Accuracy (In Transient State at 25 °C, Relative to Input Range): | ±0.05% |
| Output Ripple; Range 0 Hz to 50 kHz (Relative to Output Range): | ±0.05% |
Siemens Interference Frequency Suppression, Error Limits of Outputs | |
|---|---|
| Crosstalk Between Outputs: | > 40 dB |
| Operational Limit (Across Entire Temperature Range): | Relative to the measurement range end value in the selected output range: Voltage Output: ±0.6% Current Output: ±1.0% |
| Basic Error Limit (Operational Limit at 25 °C): | Relative to the measurement range end value in the selected output range: Voltage Output: ±0.5% Current Output: ±0.5% |
| Temperature Error (Relative to Output Range): | ±0.02%/K |
| Linearity Error (Relative to Output Range): | ±0.05% |
| Repeat Accuracy (In Transient State at 25 °C, Relative to Output Range): | ±0.05% |
| Output Ripple (Bandwidth Relative to Output Range): | ±0.05% |
Siemens Status, Interrupts, Diagnostics | |
|---|---|
| Interrupts: | None |
| Diagnostic Functions: | None |
Siemens Sensor Selection Data | |
|---|---|
| Input Ranges (Rated Values) / Input Impedance: |
Voltage: 0 V to 10 V / 100 kΩ Current: 0 mA to 20 mA / 50 Ω |
| Maximum Voltage at Voltage Input (Destruction Limit): | Max. 20 V continuous; 75 V for max. duration of 1 s (duty factor 1:20) |
| Maximum Current at Current Input (Destruction Limit): | 40 mA |
| Wiring of the Signal Sensors: |
For Voltage Measurement: Supported For Current Measurement: Supported with external supply As 2-Wire Transducer: Supported As 4-Wire Transducer: Using a 20-pin front connector |
Siemens Actuator Selection Data | |
|---|---|
| Output Ranges (Rated Values): |
Voltage: 0 V to 10 V Current: 0 mA to 20 mA |
| Load Impedance (In the Rated Output Range): |
For Voltage Outputs: Min. 5 kΩ (capacitive load: Max. 1 µF) For Current Outputs: Max. 300 Ω (inductive load: Max. 1 mH) |
| Voltage Output: |
Short-Circuit Protection: Yes Short-Circuit Current: Max. 11 mA |
| Current Output: | No-Load Voltage: Max. 15 V |
| Destruction Limit Against External Voltages/Currents: |
Voltage at Outputs to MANA: Max. 15 V, continuous Current: Max. 50 mA d.c. |
| Wiring of the Actuators: |
For Voltage Output: 2-Wire Connection Supported 4-Wire Connection (Measuring Line): Not Supported (Using a 20-pin front connector) |
