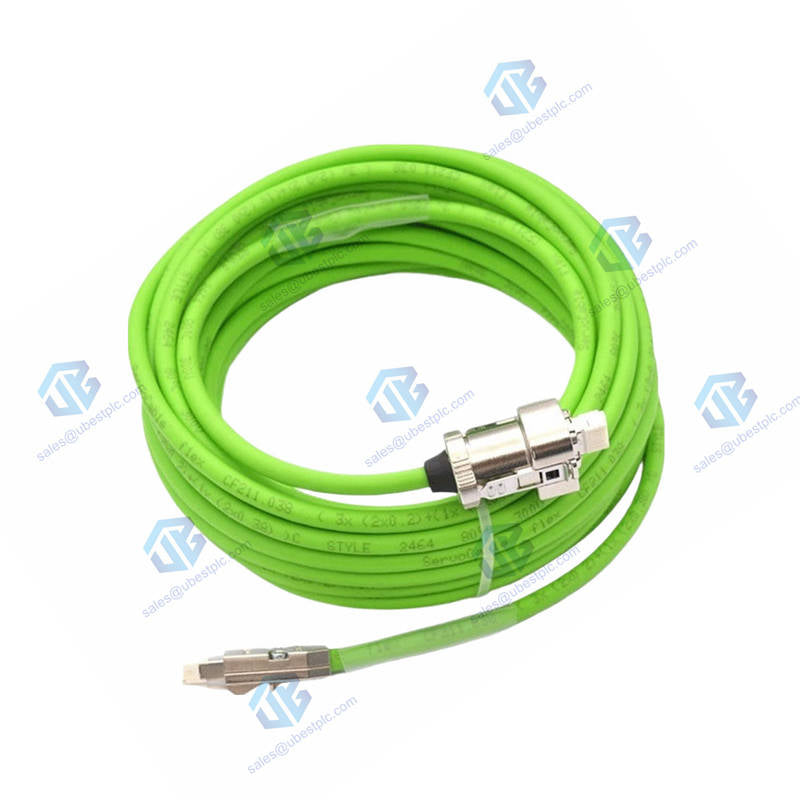

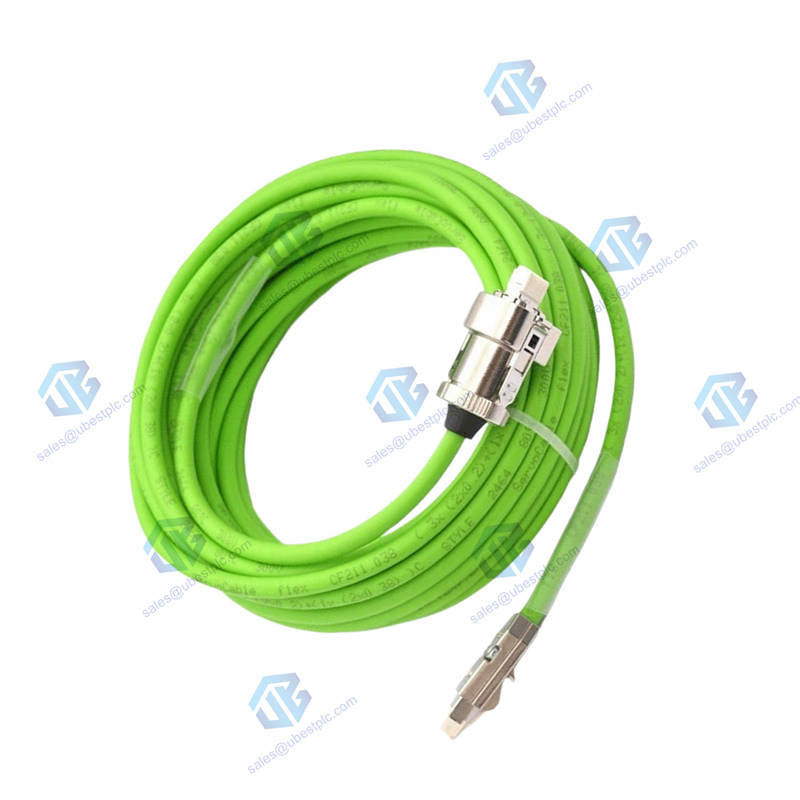

Siemens 6FX5002-2DC10-1BF0: Pre-Assembled DRIVE-CLiQ Signal Cable
This is a ready-to-use cable for Siemens drives. It connects SINAMICS S120 motor modules to the control system. The cable is 10 meters long and has robust IP20/IP67 connectors. It includes 24V power for the connection.
Complete Product Details
Order Number: 6FX5002-2DC10-1BF0 (also 6FX50022DC101BF0)
Product Family: MOTION-CONNECT 500
Cable Type: DRIVE-CLiQ Signal Cable, Pre-assembled
Primary Use: For SINAMICS S120 Motor Modules with SINUMERIK 840D sl
Cable Length: 10 meters
Connector Ratings: IP20 on one end (control cabinet), IP67 on the motor end.
Special Feature: Includes conductors for 24 Volt DC supply.
Electrical Standards: Designed for high-speed digital signal transmission.
Shielding: Fully shielded for noise immunity in industrial environments.
Bending Radius: Minimum 5x cable diameter for safe installation.
Operating Temperature: -5°C to +70°C (Flexing), -25°C to +80°C (Fixed)
Net Weight: Approximately 1.25 kg (2.76 lb)
Packaging: Supplied as 1 piece per package.
Compliance: Meets RoHS environmental directives.
Country of Origin: Slovakia
Commodity Code: 85444290
Frequently Asked Questions
Q: Can I use this cable to connect a motor to a SINAMICS G120 drive?
A: No. This specific 6FX5002 cable is designed for the DRIVE-CLiQ interface used on SINAMICS S120 motor modules and SINUMERIK 840D sl systems. The G120 series typically uses different connectors.
Q: What is the advantage of the IP67 connector?
A> The IP67 rating means the connector is dust-tight and can withstand temporary immersion in water. This allows it to be used directly on the motor housing in harsh, wet factory environments without an extra enclosure.
Q: Is the 24V power supplied by the cable itself?
A: No. The cable contains wires to carry the 24V DC power from the control unit (like the CU320) to the connected device (like a motor module or sensor). You must provide a 24V power source at the system end.
Q: Can I cut and re-terminate this cable if it's too long?
A: It is not recommended. The cable is sold as a pre-assembled, tested unit. Cutting and fitting new connectors may compromise the shielding, signal integrity, and IP rating. It is best to order the exact length needed.
Q: My old DRIVE-CLiQ cable failed. Is this a direct replacement?
A> Yes, if your old cable has the same part number (6FX5002-2DC10-1BF0) or is a 10m pre-assembled DRIVE-CLiQ cable, this is a direct replacement. Always verify the connector types match your equipment.
Package Includes
1 x Siemens DRIVE-CLiQ Signal Cable, 10 meters, part number 6FX5002-2DC10-1BF0.
