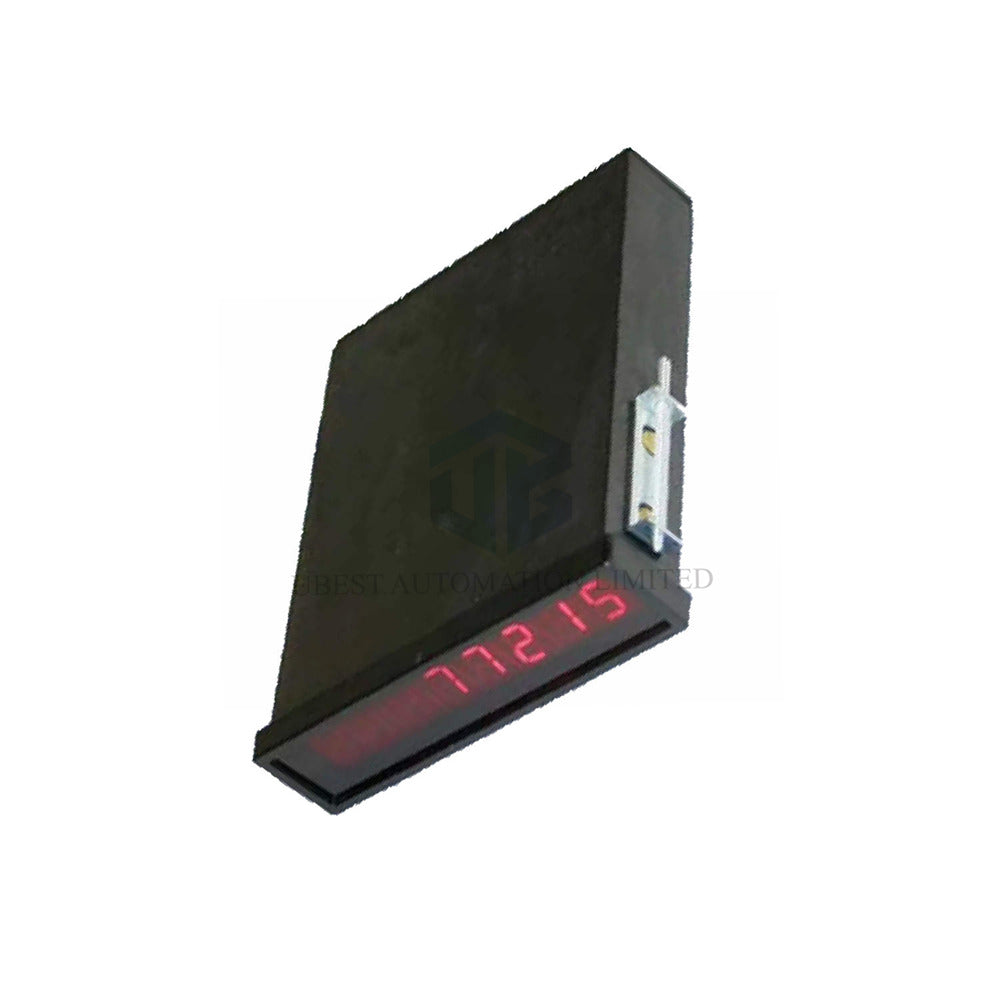

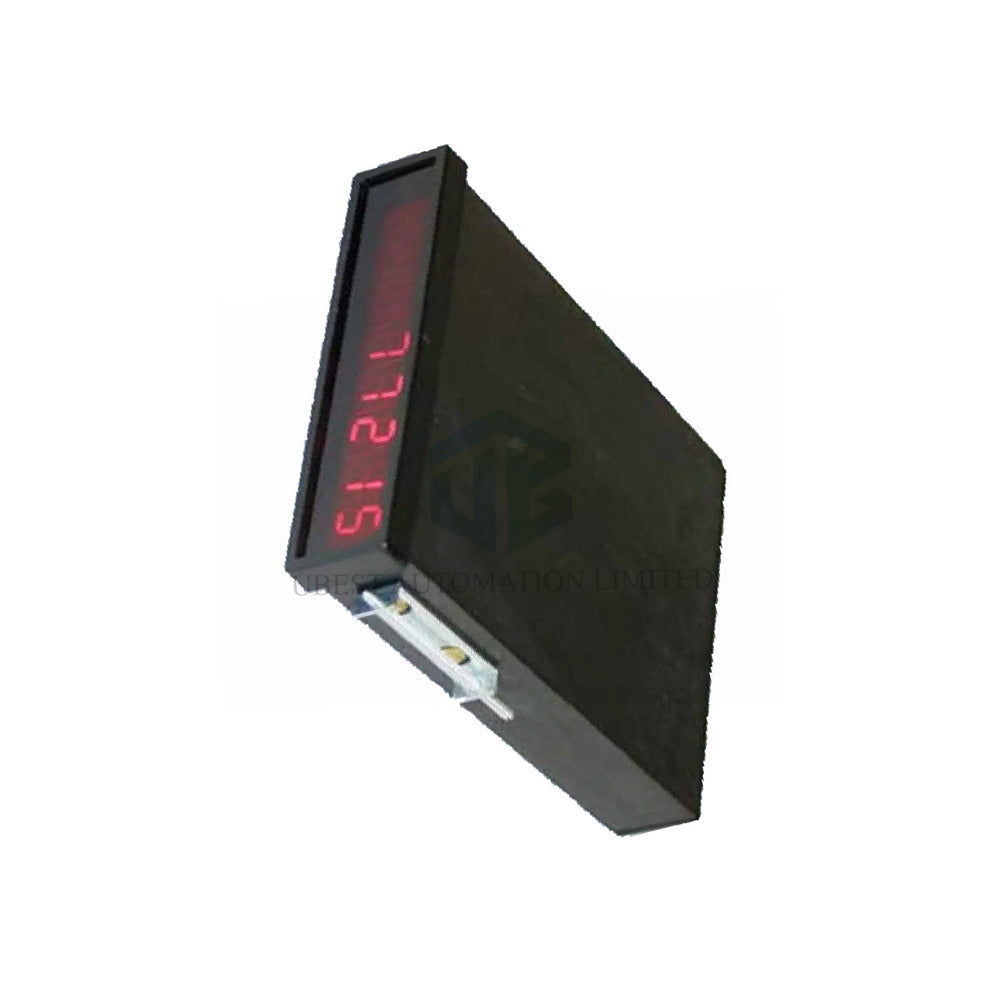

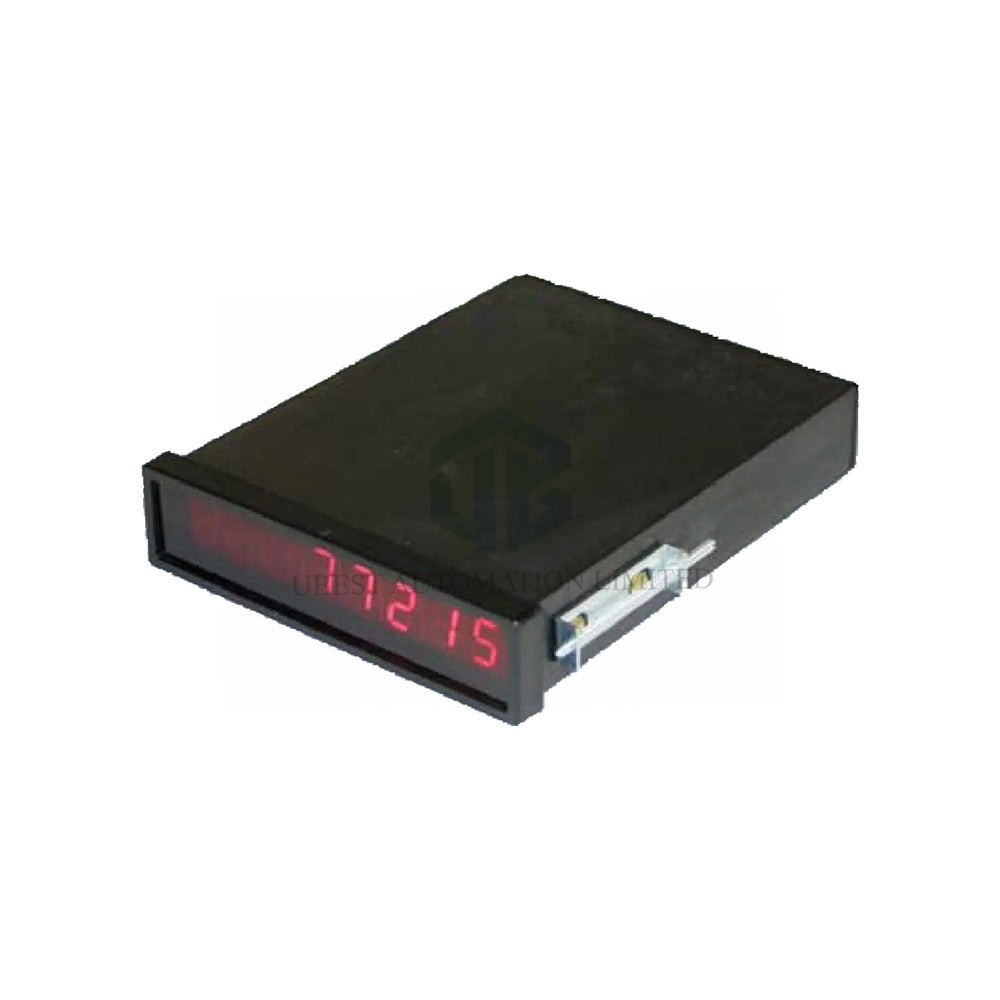

TR Electronic TAmini 485-80020 – 8-Digit Master/Slave SSI Display Unit

• Order No.: 485-80020
• Author: Ubest Automation
• Supply voltage: 11–30 V DC
• Current consumption (no load): < 350 mA
• Display: 7-segment LED, 8-digit, 10 mm height
• SSI interface frequency: 100 kHz–750 kHz
• SSI code options: Gray or Binary
• SSI data bits: 12 to 31 bits
• Mono time: > 20 µs
• Programming via USB: Use TRWinProg on Windows®
• Alternative programming: RS485 with USB/RS485 adapter
• Decimal point shifting: 0–7 digits
• Leading zeros: visible or not visible
• Output formats: Decimal (+/-), HEX, Binary
• Refresh time range: 50 ms–2000 ms
• Display capacity: ≤26 Bit
• Unit options: mm or Inch
• Offset adjustment: independent display offset
• Scaling: user specific scaling
• Count direction: user programmable
• Warning level: programmable for supply voltage
• Housing material: impact-resistant plastic
• Dimensions (WxHxD): 96 mm x 24 mm x 120 mm (without connector)
• Mounting cutout: 92.5+0.5 mm x 21.5+0.5 mm
• Total depth with connector: 167 mm
• Max panel thickness: ≤4 mm
• Mass: 0.2 kg typical
• Working temperature: 0°C to +60°C
• Protection class (DIN EN 60529): IP43

Frequently asked questions

• Q: Can I program TAmini 485-80020 without a PC?
  A: No. You need a PC with TRWinProg software via USB or RS485.
• Q: What protocols does the RS485 port support?
  A: It supports TRWinProg, EprogW32, and LTProg protocols.
• Q: How many data bits can the SSI interface handle?
  A: The SSI interface accepts 12 to 31 data bits in Gray or Binary code.
• Q: Can I change the refresh rate?
  A: Yes. Set the refresh time from 50 ms up to 2000 ms via programming.
• Q: Is the unit suitable for humid environments?
  A: The IP43 rating protects against spraying water and small objects.
