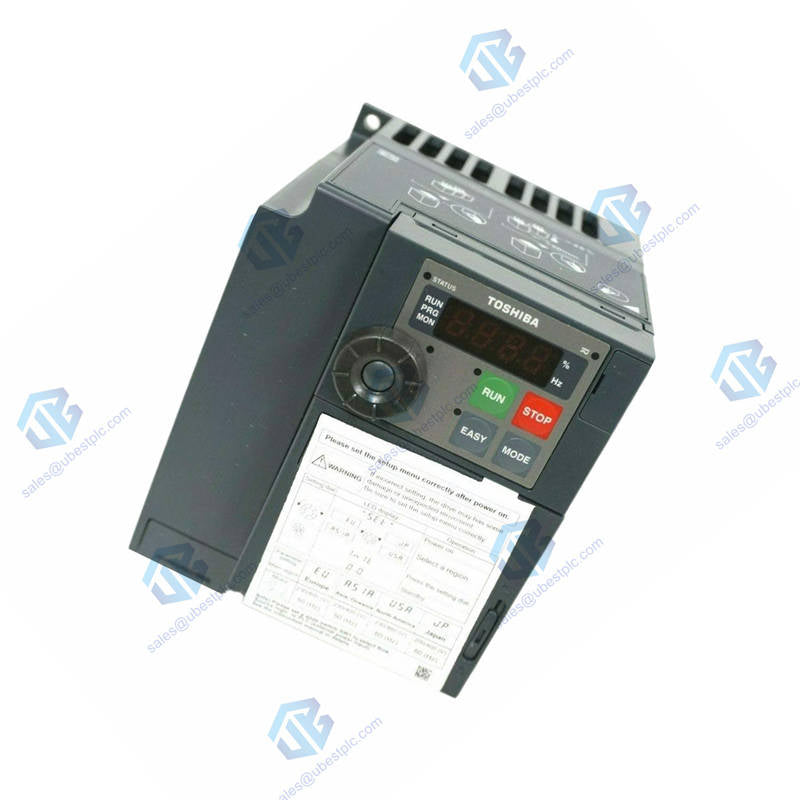

Toshiba VFS15-2015PM-W1 Compact Variable Frequency Drive

The VFS15-2015PM-W1 provides reliable variable speed control for small to medium industrial motors. This Toshiba VF-S15 Series inverter offers a compact solution for three-phase applications. The drive features a built-in operator panel and basic filter for easy installation.

Electrical and Power Specifications

• Brand: Toshiba Motors & Drives
• Model: VFS15-2015PM-W1
• Series: Toshiba VF-S15 Series (TOSVERT)
• Rated Power: 2 HP (1.5 kW) constant torque
• Output Current: 8 Amps continuous full load
• Input Voltage: 200-240 VAC, three-phase, 50/60 Hz
• Nominal Voltage: 208 VAC or 240 VAC operation
• Output Voltage: 0-240 VAC, three-phase variable
• Frequency Range: 0.1 Hz to 400.0 Hz adjustable
• Frequency Setting Resolution: 0.01 Hz digital precision
• Speed Control Range: 1:50 without feedback encoder

Physical Dimensions and Weights

• Unit Width: 10.5 cm (4.13 inches) compact design
• Unit Height: 13.0 cm (5.12 inches) space-saving
• Unit Depth: 13.0 cm (5.12 inches) from mounting surface
• Product Net Weight: 1.4 kg (2.725 lbs) lightweight
• Shipping Gross Weight: 1.58 kg (3.475 lbs) total package
• Mounting Style: Wall-mount with standard bracket
• Enclosure Rating: IP20 for general indoor protection

Control and Operational Features

• Built-in operation panel with LED display
• Integrated basic EMC filter reduces electrical noise
• Multiple preset speed settings for different applications
• Adjustable acceleration and deceleration time curves
• Automatic energy-saving operation mode available
• Fault history function stores recent error codes
• Three programmable digital inputs for control signals
• One relay output for fault or operation status

Environmental and Installation Parameters

• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Storage Temperature: -20°C to +65°C (-4°F to 149°F)
• Ambient Humidity: 5% to 95% non-condensing maximum
• Installation Altitude: Up to 1000 meters without derating
• Cooling Method: Natural convection (fanless operation)
• Vibration Resistance: 5.9 m/s² maximum during operation
• Overload Capacity: 150% for 60 seconds, 200% for 3 seconds

Package and Shipping Information

• One complete Toshiba VF-S15 Series variable frequency drive
• Wall-mounting bracket and necessary installation screws
• Comprehensive user manual with programming examples
• Terminal connection guide and safety information sheet
• Fast worldwide delivery via FedEx, UPS, or DHL couriers

Frequently Asked Questions

• What is the main application for this 2HP drive? This unit works well with small conveyors, machine tools, and ventilation fans requiring variable speed.
• How does the built-in basic EMC filter function? The filter minimizes high-frequency noise generated by the drive, protecting nearby sensitive equipment.
• Can I use this drive with a single-phase input power source? No, this specific model requires a three-phase 200-240VAC input for correct and safe operation.
• What protection features does this VFS15 model include? The drive has overcurrent, overvoltage, undervoltage, and motor overload protection as standard.
• How do I change the rotation direction of the connected motor? Use the built-in keypad or external control signals to easily set forward or reverse motor rotation.

All purchases include our standard twelve-month product warranty coverage.
