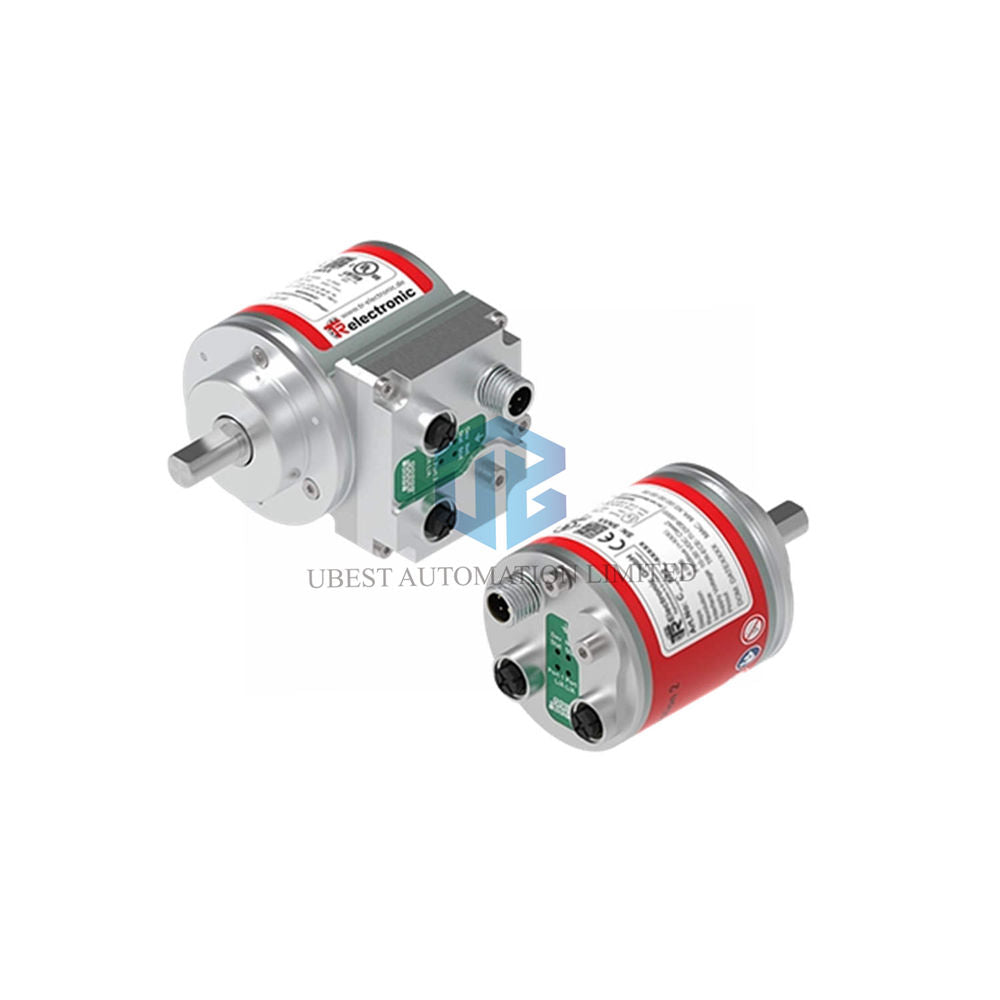

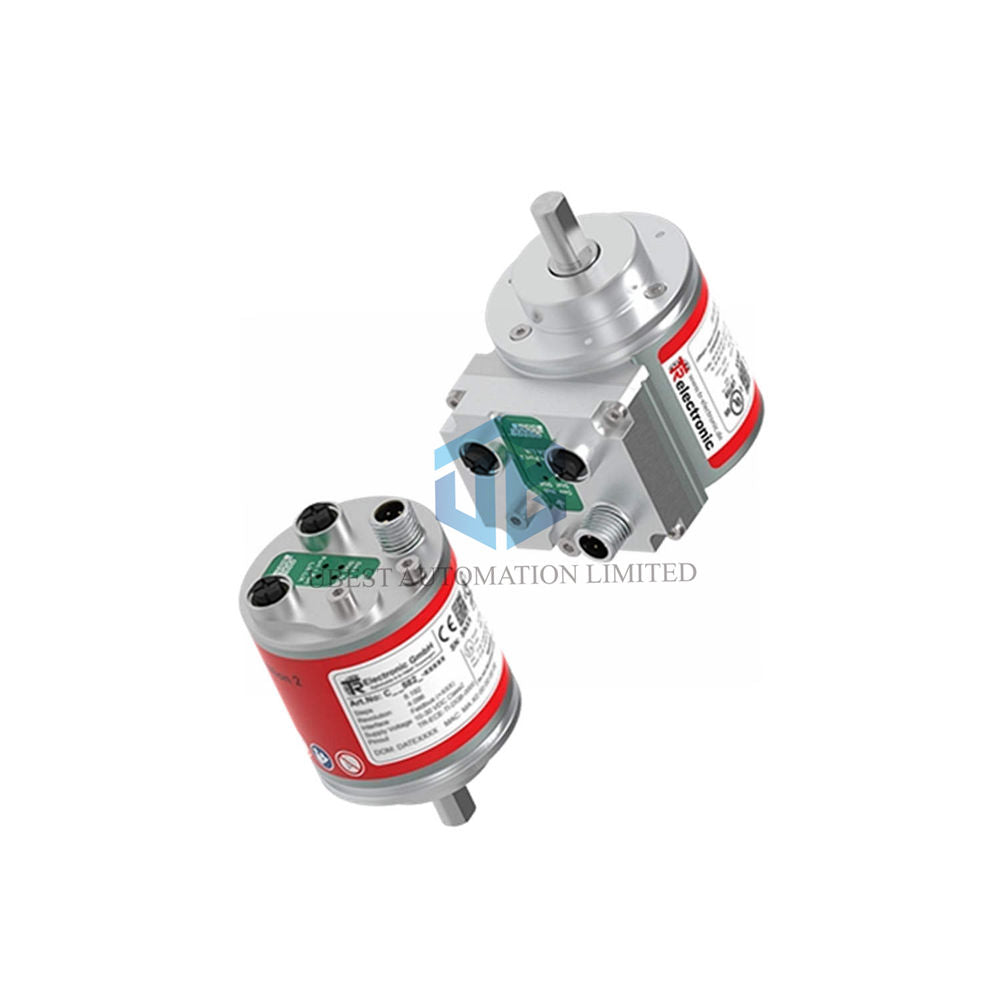

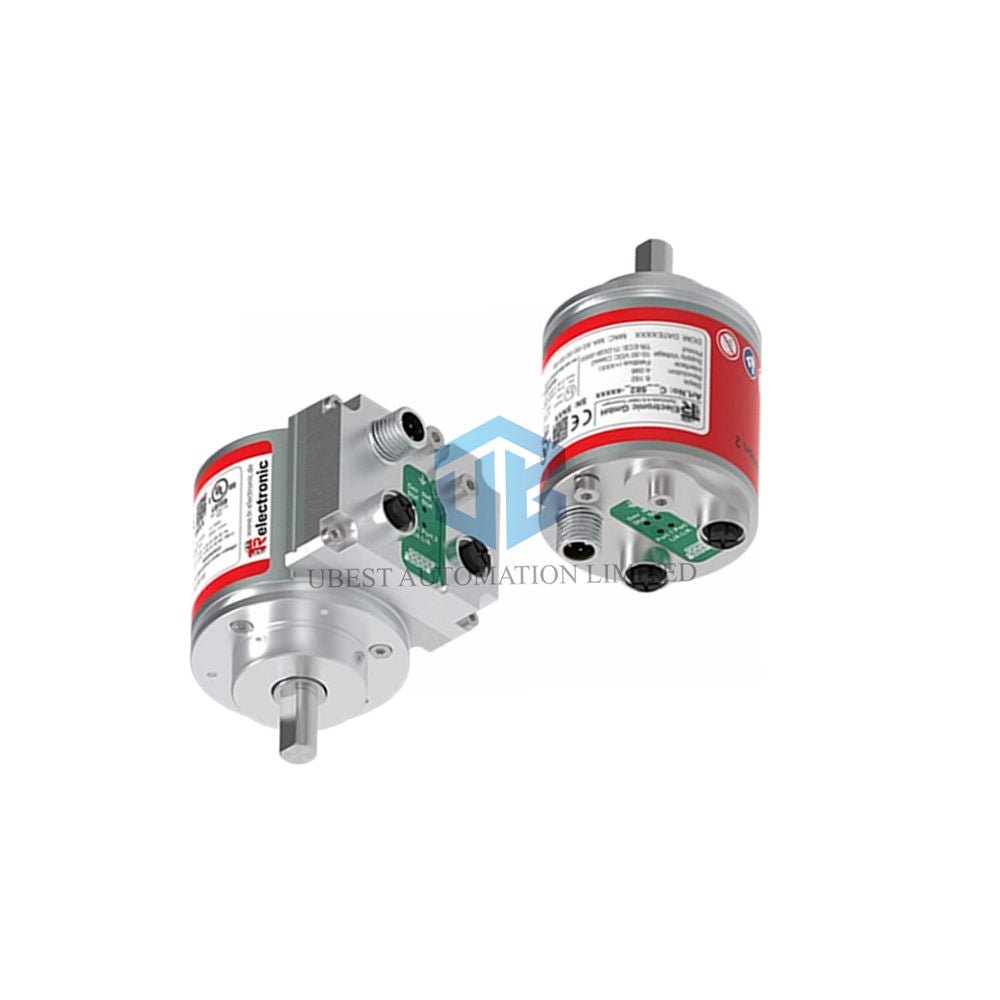

TR CEV58M-00441 Absolute Encoder – High-Precision PROFINET IO Feedback Solution

• Brand: TR Electronic
• Model: CEV58M-00441
• Category: Absolute Encoder – PROFINET IO
• Manufacturer Part No.: TR-CEV58M-00441
• Author: Ubest Automation

Key Technical Specifications

• Resolution & Accuracy
  Total resolution ≤ 33 Bit. Steps per revolution ≤ 32,768. Revolutions ≤ 256,000. Output capacity ≤ 30 Bit.
• Interface & Protocol
  PROFINET IO V2.2. Conformance Class B and C. Supports IRT (Class 3) and RT (Class 1,2).
• Supply & Power
  Supply voltage range 11-27V DC. Nominal voltage 24V DC. Unloaded current 120 mA.
• Mechanical Ratings
  Max mechanical speed ≤ 12,000 1/min. Shaft diameter options: 6, 8, 10, 12 mm or 3/8 inch. Flange type ZB36. Shaft type 10FL/19,5.
• Environmental Limits
  Working temperature -20 to +70°C. Protection class IP65. Vibration ≤ 100 m/s² (50-2000 Hz). Shock ≤ 1000 m/s² (11 ms half sine).
• Connector & Wiring
  Connector type: 1x4P M12 and 2x4P M12 D-coded female. Connector position axial. Pinout No. TR-ECE-TI-DGB-0214.
• Additional Options
  Velocity output available. Encoder Conformance Class C. Programmable parameters via fieldbus tool.

Frequently Asked Questions

• Q: Does the TR CEV58M-00441 support both single-turn and multi-turn?
  A: Yes. This encoder works as a single-turn and multi-turn absolute encoder.
• Q: What is the minimum cycle time for IRT mode?
  A: The device supports cycle time ≥ 1000 µs for both IRT and RT.
• Q: Can I use this encoder at 6000 1/min continuously?
  A: Yes. Bearing life at 6000 1/min and 60°C reaches ≥ 3.9E+10 revolutions.
• Q: Is the binary code output programmable?
  A: Yes. You can adjust counting direction, resolution, and parameter settings.
