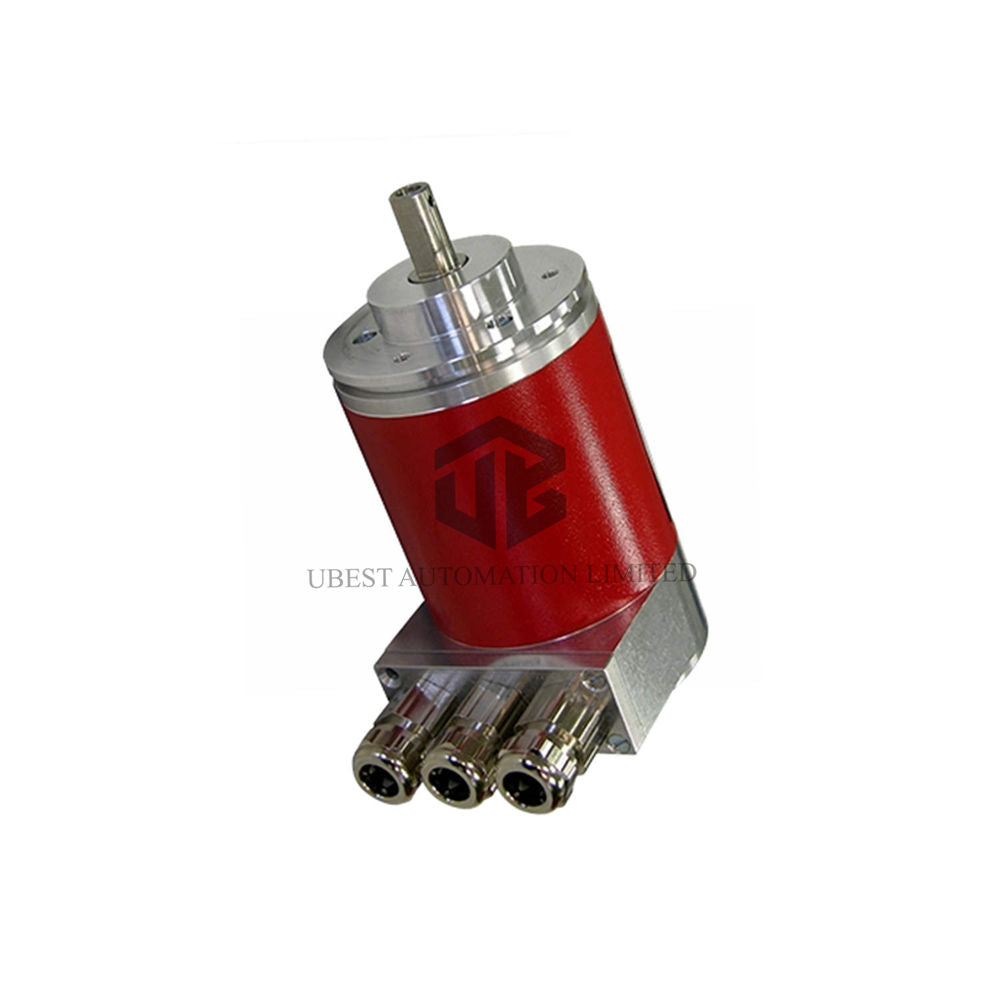

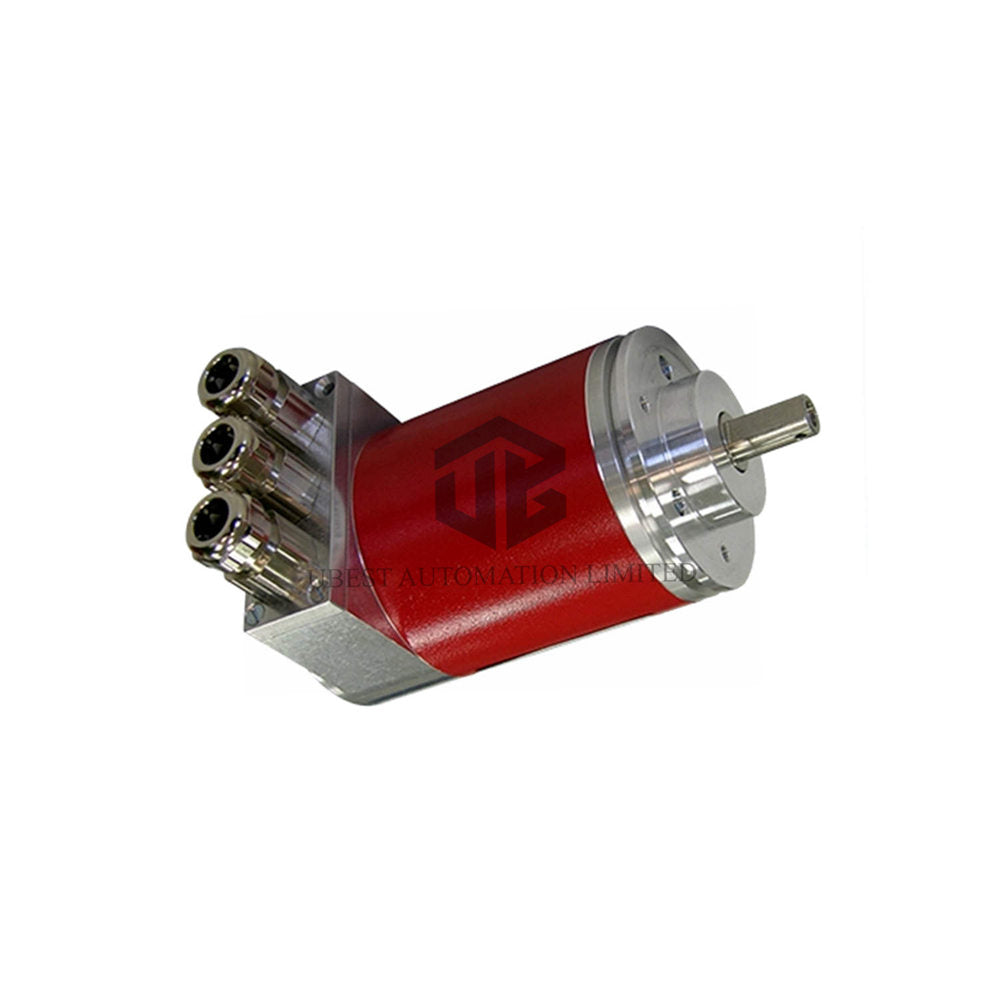

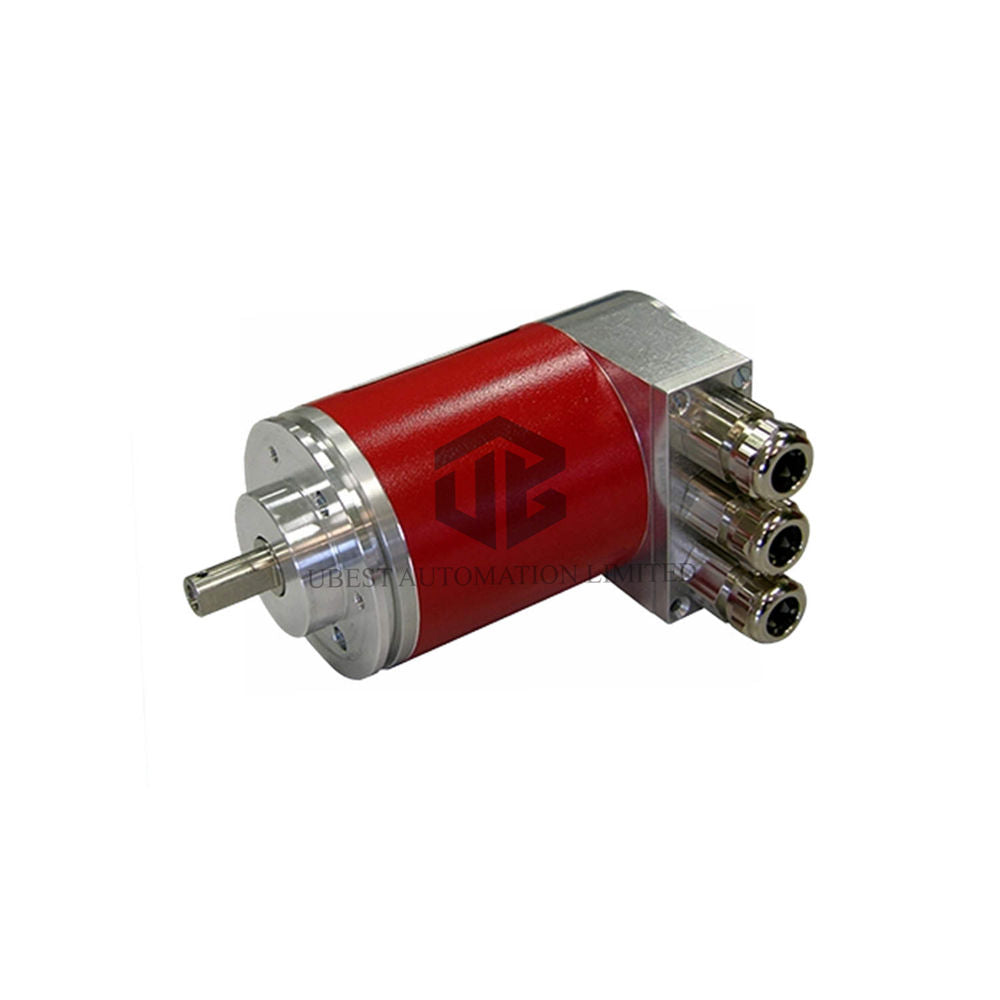

TR CEV65M-10579 Absolute Encoder – Dual-Interface PROFINET IO + SSI

• Brand: TR Electronic
• Model: TR CEV65M-10579
• Category: Absolute Encoder – PROFINET IO + SSI
• Manufacturer Part No.: TR-CEV65M-10579
• Author: Ubest Automation

Core Technical Specifications

• Resolution & Measurement Range
  Steps per revolution: 4,096,000. Number of revolutions: 4,096,000. Total resolution equals 24 bits.
• Interface & Signal Output
  Dual interface: PROFINET IO (PN Spec 2.2) plus SSI. Output levels support RS422 and RS485.
• Programmable Code & Functions
  Code type is programmable. Options include Preset 1+2 and full programmability.
• Supply & Electrical Data
  Supply voltage range 11-27V DC. Encoder conforms to Conformance Class C.
• Temperature & Environmental Tolerance
  Working temperature range -20 to +70°C. Protection class IP65 resists dust and water jets.
• Mechanical Design
  Flange type ZB36. Shaft type 10FL/19,5. Connector position is radial.
• Connector & Pinout
  Connectors: 1x4P M12, 1x8P M12, and 2x4P M12 D-coded female. Pinout No. TR-ECE-TI-DGB-0222.
• Firmware & Documentation
  Firmware No. 437892. Parameter file TR CEV65M-10579. Drawing No. 04-CEV65M-M0521.

Frequently Asked Questions

• Q: Can I use this encoder with both PROFINET and SSI at the same time?
  A: Yes. The TR CEV65M-10579 supports both interfaces simultaneously for redundant feedback.
• Q: Is the output level selectable?
  A: Yes. You can choose RS422 or RS485 output level according to your controller.
• Q: What is the maximum mechanical speed?
  A: The encoder runs reliably up to 12,000 rpm. Please refer to the drawing 04-CEV65M-M0521 for details.
• Q: Does this encoder allow field programming?
  A: Yes. Options ENC PROGRAMMABLE and ENC PRESET 1+2 give you full flexibility.
