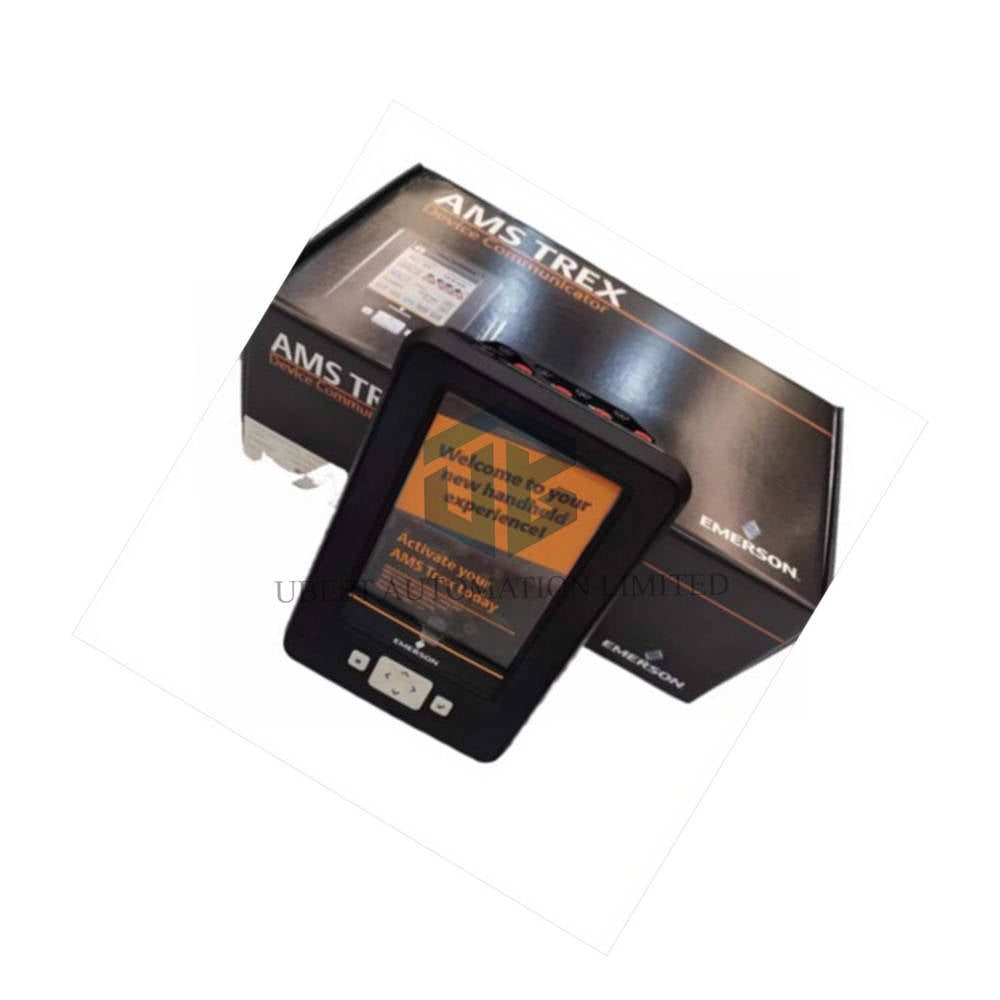

Emerson TREXCHPKLWS3 AMS Trex Device Communicator

Technical Specifications

• Brand: Emerson
• Model: TREXCHPKLWS3
• Author: Ubst Automation
• Microprocessor: 800 MHz ARM Cortex A8/NXP
• Memory: 512 MB DDR3 SDRAM
• Internal Flash: 2GB NAND + 32 GB extended flash
• Operating System: Windows Embedded Compact 2013
• Display: 640 x 480 pixel, daylight readable
• Communication Module: Device Communicator (HART Application)
• Power Module: Rechargeable Li-Ion
• Radio: Integrated Wireless option
• Product Certifications: ATEX, CSA (US/Canada), IECEx Intrinsically Safe (includes FISCO)
• Support: Standard 3 Year included
• Environmental Tolerance: Designed for hazardous industrial areas (Intrinsically Safe)
• Measurement Support: Full HART command set for device variables
• Frequency Response: HART protocol standard 1200 bps FSK
• Linearity & Resolution: Defined by connected HART device specifications
• Temperature Range: Operation -20°C to +60°C (-4°F to +140°F)
• Anti-interference: Meets industrial EMC standards for robust communication

Frequently Asked Questions (FAQ)

• Q: What are the intrinsic safety approvals for this model?
  A: The TREXCHPKLWS3 carries ATEX, CSA (US/Canada), and IECEx intrinsically safe certifications. It includes FISCO approval for use in hazardous locations.
• Q: Can I use this communicator with any HART device?
  A: Yes, it supports all HART-enabled devices. It communicates with the full range of HART instruments, reading primary and secondary variables.
• Q: What environmental conditions can this unit withstand?
  A: Emerson designed it for industrial hazardous environments, with an operating temperature range of -20°C to +60°C. It tolerates dust, moisture, and typical plant conditions.
• Q: Does it support wireless communication out of the box?
  A: Yes, this specific TREXCHPKLWS3 model includes the integrated wireless radio option. You can connect to compatible wireless networks for data transfer from safe areas.
• Q: What are the shipping methods available?
  A: We ship using trusted carriers including FedEx, UPS, and DHL for fast and reliable delivery worldwide.
