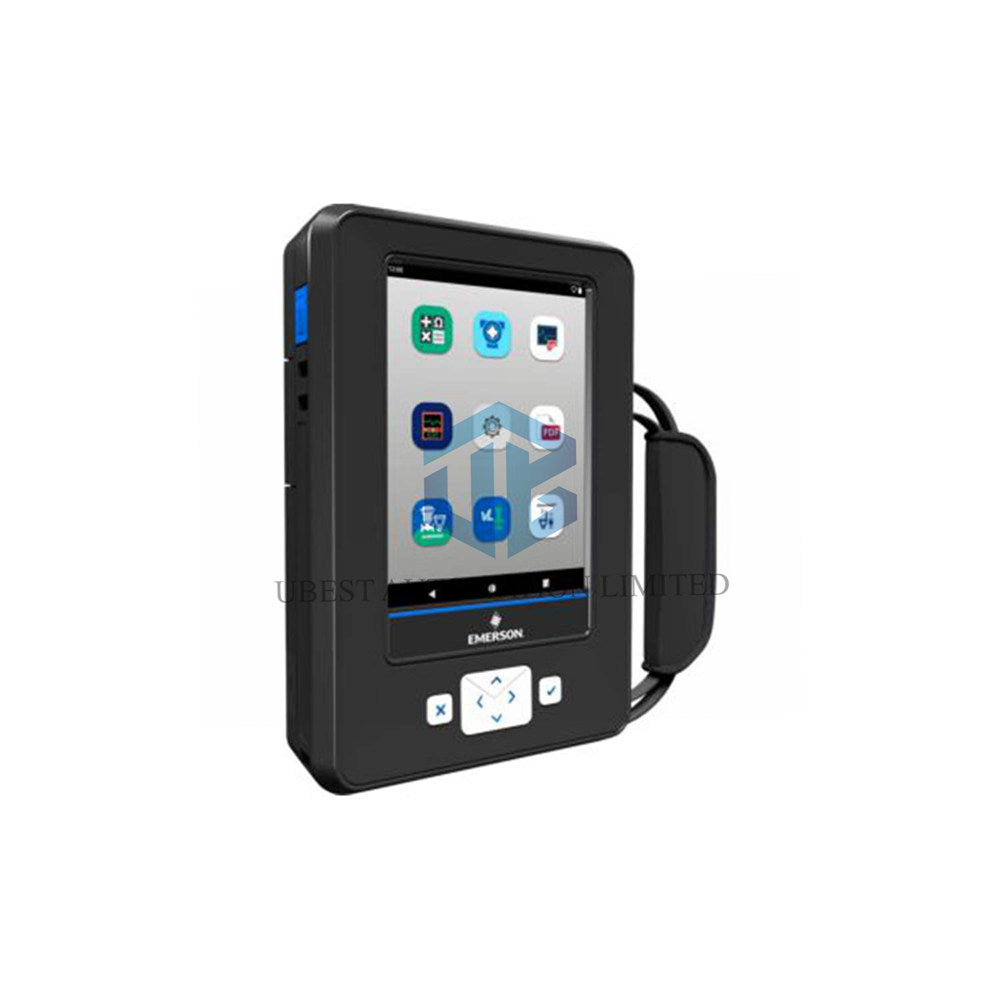

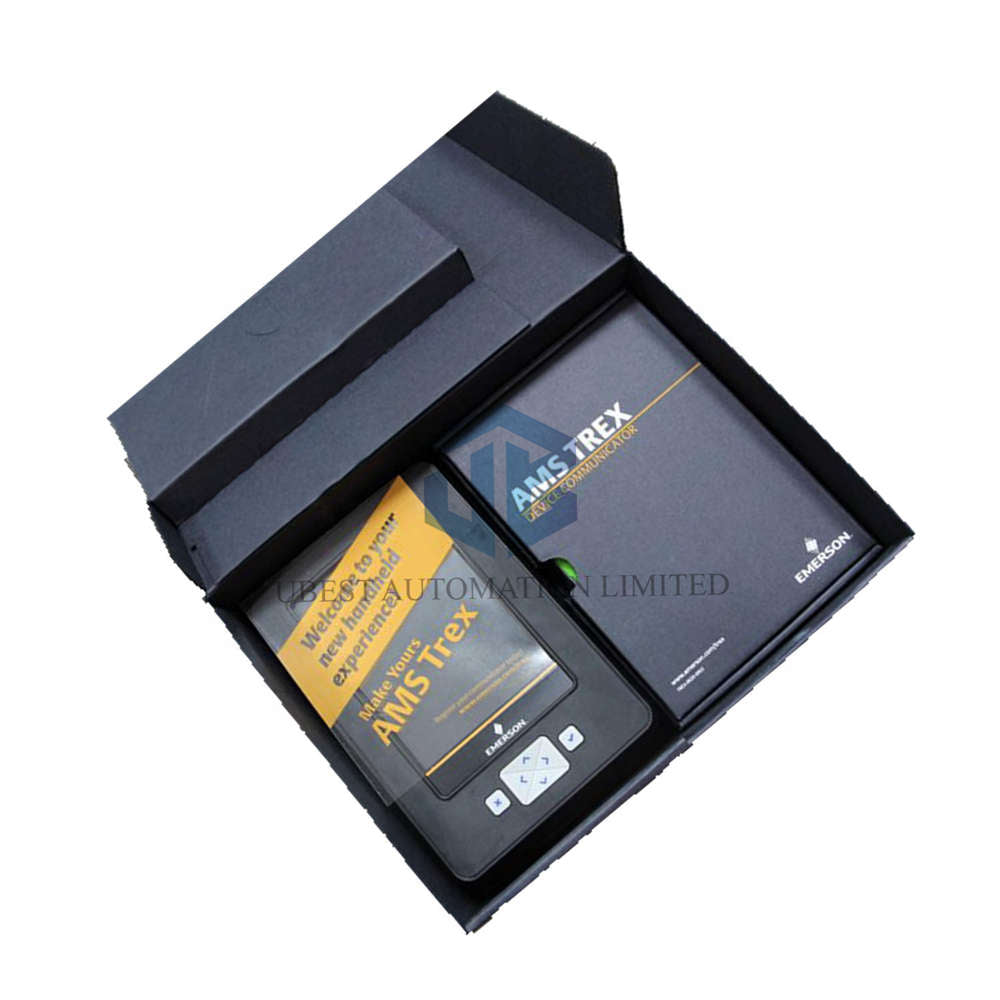

TREXCHPNAWP1S Emerson AMS Trex Device Communicator

Technical specifications

• Brand: Emerson
• Model: TREXCHPNAWP1S
• Product Type: AMS Trex Device Communicator
• Processor: 800 MHz ARM Cortex A8/NXP for smooth operation
• RAM: 512 MB DDR3 SDRAM for efficient multitasking
• Internal Storage: 2GB NAND flash and 32GB extended flash
• Operating System: Windows Embedded Compact 2013
• Display: 640 x 480 pixel high-resolution touchscreen
• Communication Module: Device Communicator module for HART
• Applications: HART Application pre-installed
• Power Module: Rechargeable Li-Ion Power Module
• Radio Options: Wireless connectivity built-in
• Support: Standard Support for 3 years included
• Certifications: NA for general purpose areas

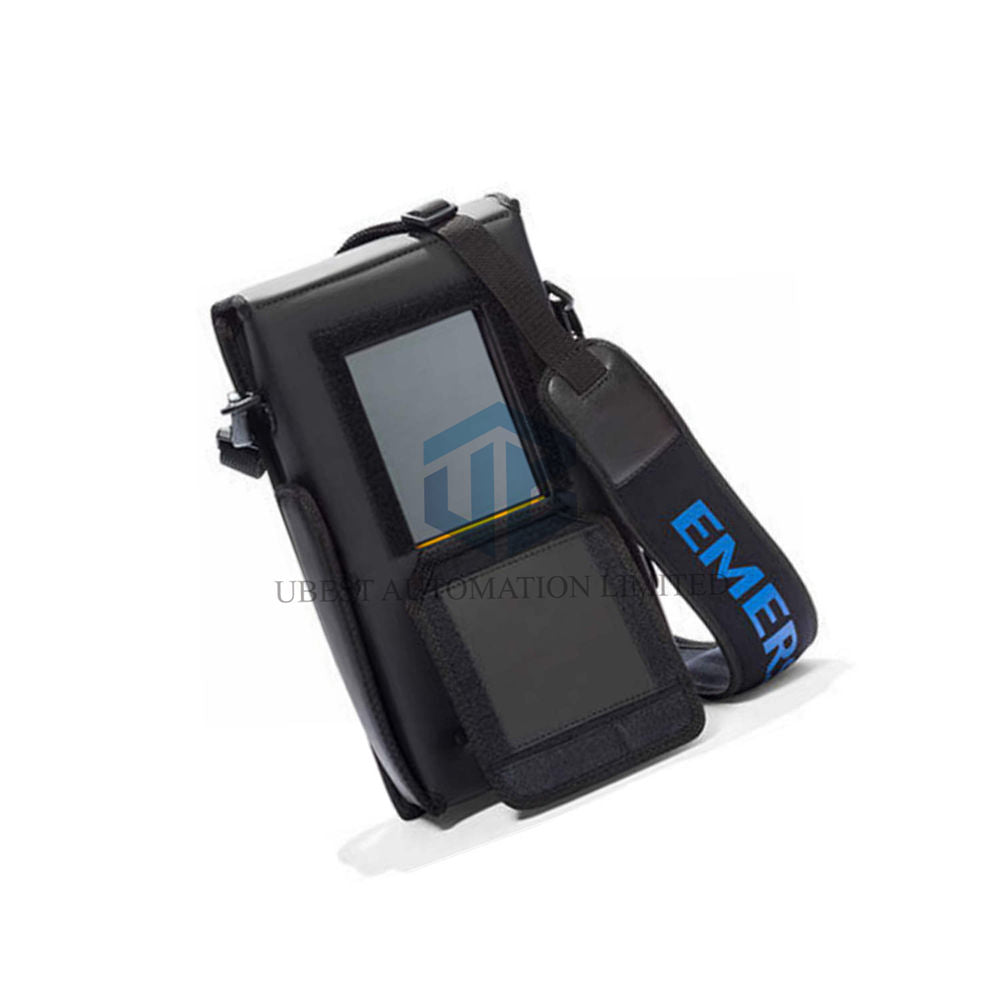

• Carrying Case: Rugged carrying case included

Key features and benefits

• The TREXCHPNAWP1S delivers fast and accurate HART device communication. It helps you identify issues before they escalate.
• This AMS Trex Device Communicator features 32GB extended flash memory. You can store device data and reports directly on the unit.
• Wireless capability allows you to share data remotely from the field. This improves collaboration with control room teams.
• The 800 MHz processor ensures smooth navigation through menus and applications. You experience minimal lag during critical tasks.
• Rechargeable Li-Ion power module supports full-day fieldwork without interruption. It charges quickly for fast turnaround.
• Emerson built this device to withstand tough industrial environments. It resists dust, vibration, and temperature extremes.

Environmental specifications

• Operating Temperature: -20°C to 55°C for reliable performance in various climates
• Storage Temperature: -40°C to 70°C for safe long-term storage
• Humidity Tolerance: 0% to 95% non-condensing for wet conditions
• Drop Protection: Engineered to survive 1-meter drops to concrete
• EMC Immunity: Strong resistance to electromagnetic interference
• Ingress Protection: Designed to resist dust and water ingress

Measurement and diagnostic capabilities

• Primary Variable Accuracy: High-precision measurement of process values
• Loop Current Measurement: 0-24 mA range with 0.01 mA resolution
• Voltage Measurement: 0-50 V range for comprehensive diagnostics
• Resolution: 16-bit analog-to-digital conversion for fine detail
• Frequency Response: Captures fast-changing process variables
• Linearity: Excellent linearity across the full measurement range

Frequently asked questions

• Q: What devices does the TREXCHPNAWP1S support? A: It supports all HART-enabled field devices from Emerson and other manufacturers.
• Q: Can I update the software on this communicator? A: Yes, you can install updates via USB or wireless connection.
• Q: How long does the battery last? A: The Li-Ion battery provides 8+ hours of continuous use.
• Q: Does this model include wireless capability? A: Yes, the 'W' in the model number indicates integrated wireless.
• Q: What is the support period for this unit? A: This model includes 3-year Standard Support from Emerson.
• Q: Is this unit intrinsically safe? A: This NA certification version is for general purpose areas. For hazardous locations, please contact us.
• Q: Can I generate reports directly on the device? A: Yes, the AMS Trex Device Communicator includes built-in reporting tools.
• Q: Does it come with a carrying case? A: Yes, the 'S' in the model number includes a rugged carrying case.
