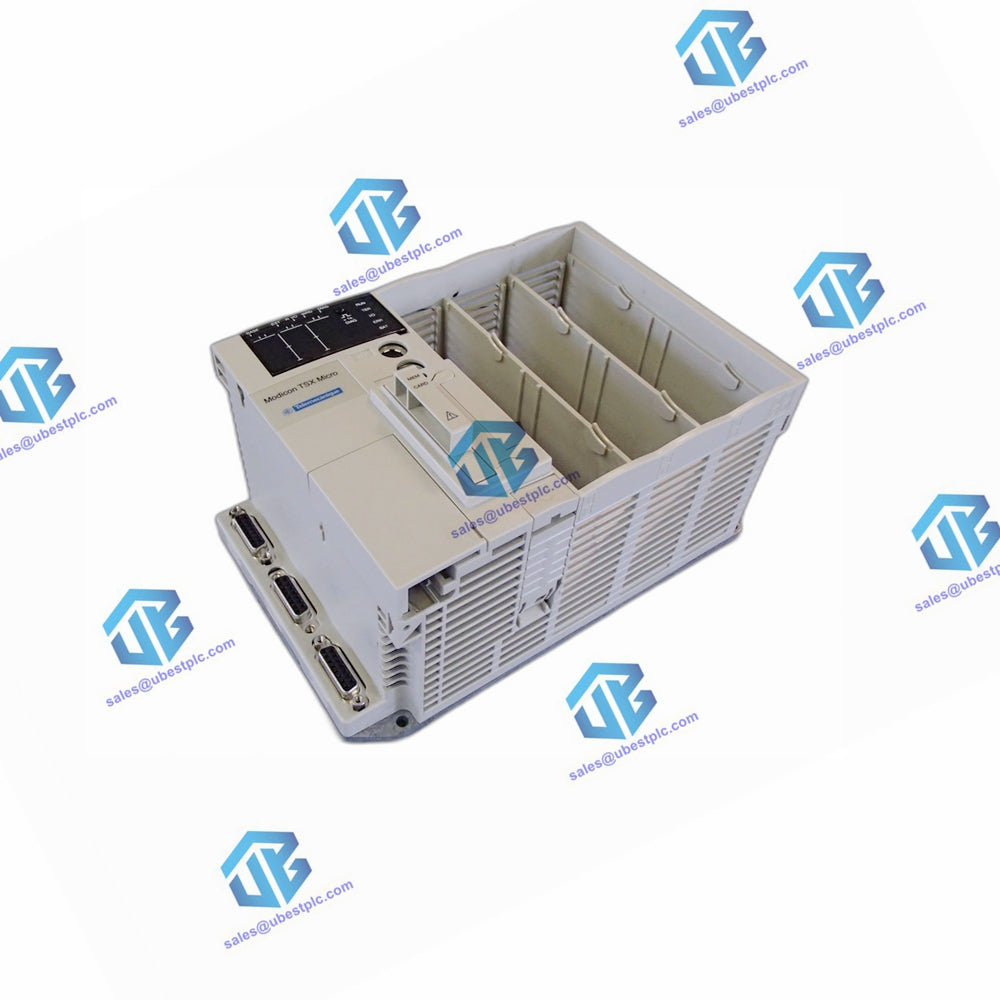

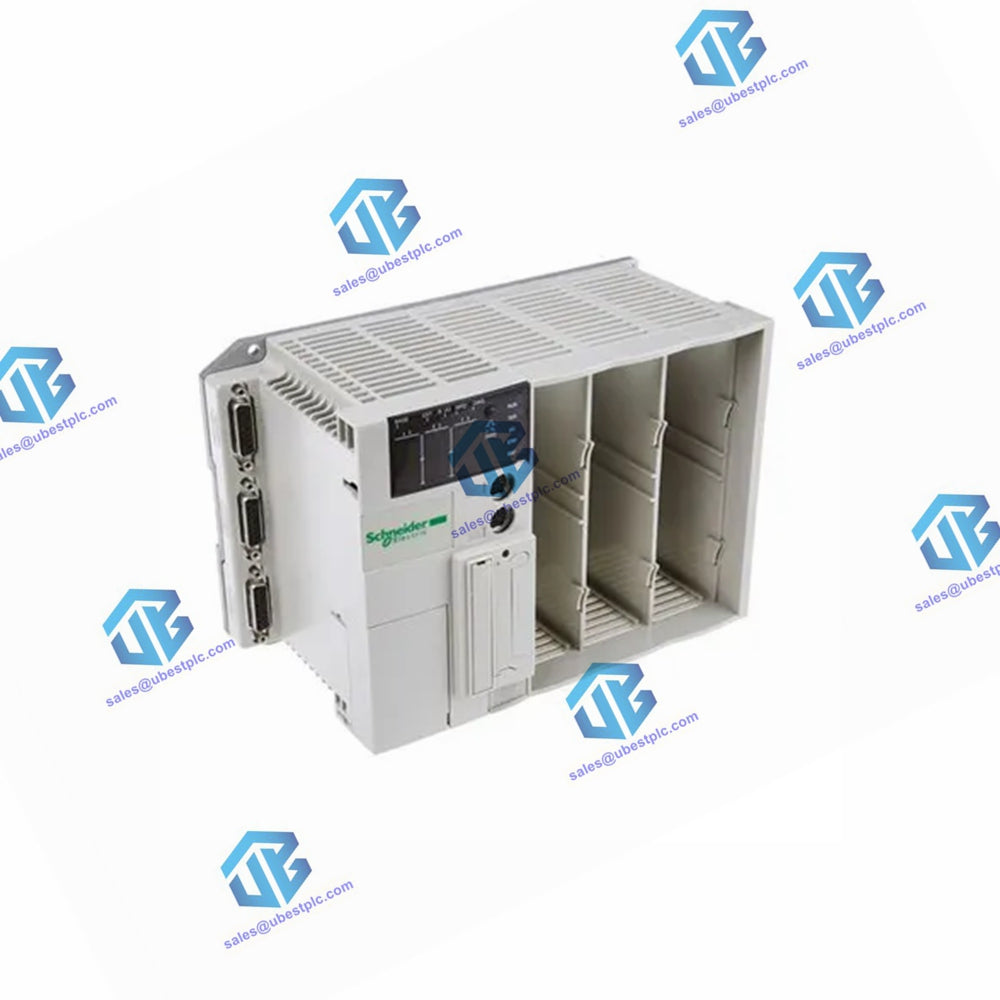

TSX3722101 Schneider Modular Base Controller

In stock
Manufacturer:
Schneider
Product No.:
TSX3722101
Condition:
In Stock
Product Type:
Modular base controller
Product Origin:
FR
Weight:
1750g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Main

Attribute Value
Range of product Modicon TSX Micro automation platform
Product or component type Modular base controller
Primary voltage 24 V 19.2…30 V DC
Input current 2 mA 60 A
Immunity to microbreaks 10 ms

Complementary

Attribute Value
Number of slots 3
Analogue input type 0...10 V 8
Analogue output type 0...10 V 1
Counting input type
  • Discrete incremental counter 1 10 Hz
  • Incremental 1 10 Hz
Integrated connection type
  • 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
  • 1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock With
Memory description
  • Flash 15 Kwords data
  • Internal RAM 20 Kwords data
  • Internal RAM (with PCMCIA card) 128 Kwords program and data
  • Internal RAM 128 Kwords data storage
Maximum size of object areas
  • 1 %MWi internal words
  • 128 %KWi constant words
  • 256 %Mi
Execution time per instruction
  • 0.13 µs Boolean without PCMCIA card
  • 4.5 µs arithmetic REAL floating without PCMCIA card
  • 0.19 µs Boolean with PCMCIA card
  • 4.5 µs arithmetic REAL floating with PCMCIA card
Execution time for 1 Kinstruction
  • 5.88 100 % Boolean without PCMCIA card
  • 4 100 % Boolean with PCMCIA card
  • 0.266 65 % Boolean and 35 % numerical with PCMCIA card
Application structure
  • 1 master task
  • 16 event tasks
  • 1 fast task
System overhead 2.3 ms for master task
Protection type
  • Short-circuit
  • Overload protection
Total useful secondary power 16 W

Environment

Attribute Value
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -25…70 °C
Relative humidity 10…95 % without condensation for operation
5…95 % without condensation for storage
Operating altitude 0...2000 m
Width 341.4 mm
Height 151 mm
Depth 152 mm
Net weight 1.75 kg
