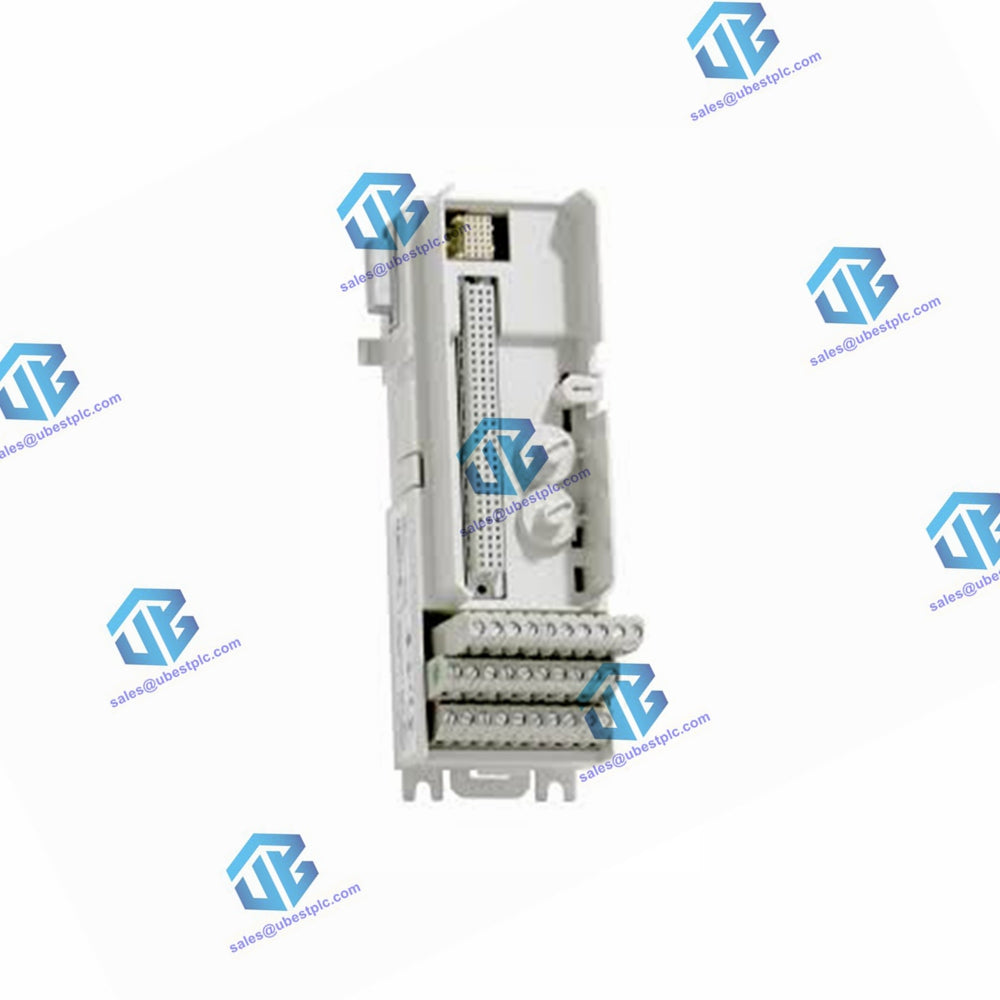

TU810/TU810V1 Compact MTU

Features

• Compatibility: Designed for 50 Volt applications, compatible with a range of I/O modules including AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, and DP840.
• Compact Installation: Allows for the compact installation of I/O modules using one-wire connections.
• Channel Capacity: Supports up to 16 channels of field signals and process power connections.
• ModuleBus Connection: Facilitates connections to ModuleBus and I/O modules.
• Mechanical Keying: Mechanical keying prevents the insertion of the wrong I/O module.
• DIN Rail Mounting: Can be mounted on a DIN rail for easy installation.

Technical Specifications

• Process Connections: 30 (up to 16 I/O channels, 2 x 2 process power, 5 x 2 process power (0 V))
• Rated Maximum Continuous Current:
  • Per I/O Channel: 2 A
  • Per Process Voltage Connection (L+): 5 A
• ModuleBus:
  • Maximum 5 V Current Distribution: 1.5 A
  • Maximum 24 V Current Distribution: 1.5 A
• Acceptable Wire Sizes:
  • Solid: 0.2 - 4 mm²
  • Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
• Mechanical Keys: 36 different combinations
• Equipment Class: Class I according to IEC 61140 (earth protected)
• Protection Rating: IP20 according to IEC 60529
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V a.c.

Dimensions

• Width: 64 mm (2.52”) including connector, 58.5 mm (2.3”) edge to edge installed
• Depth: 64 mm (2.52”) including terminals
• Height: 170 mm (6.7”) including latch
• Weight: 0.17 kg (0.37 lbs.)
