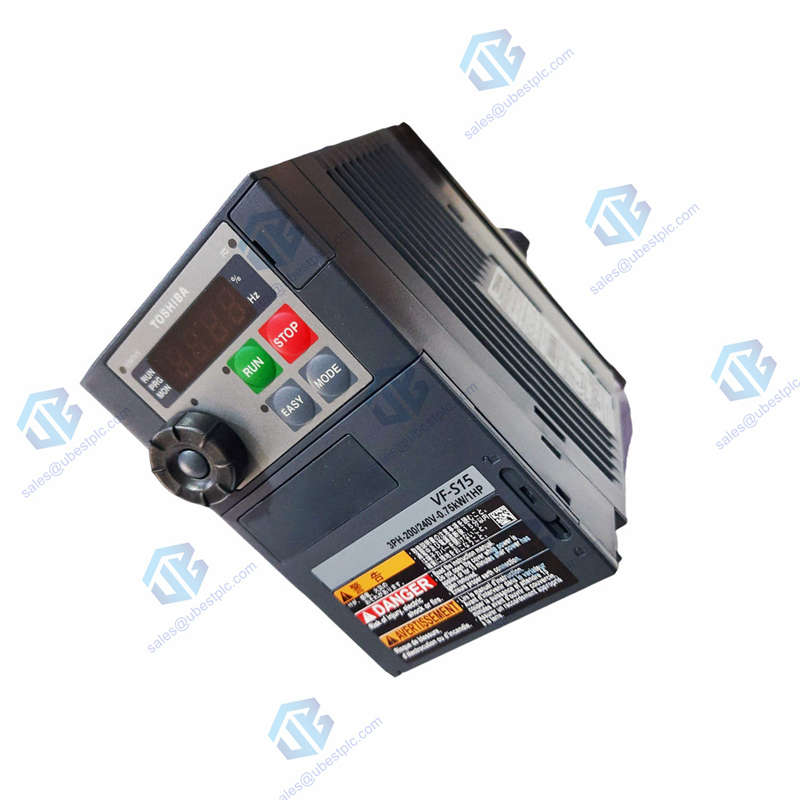

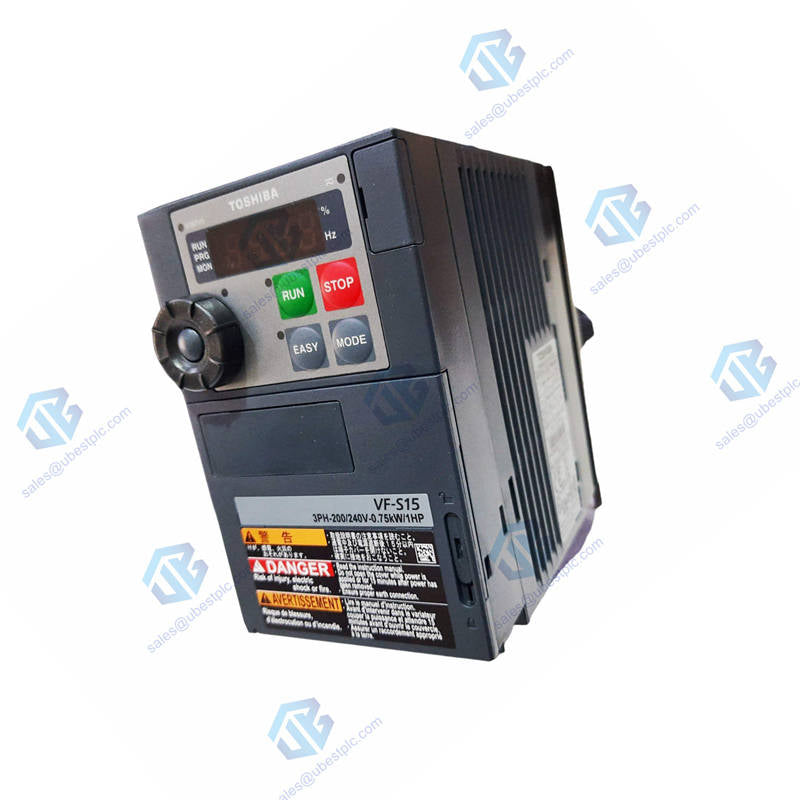

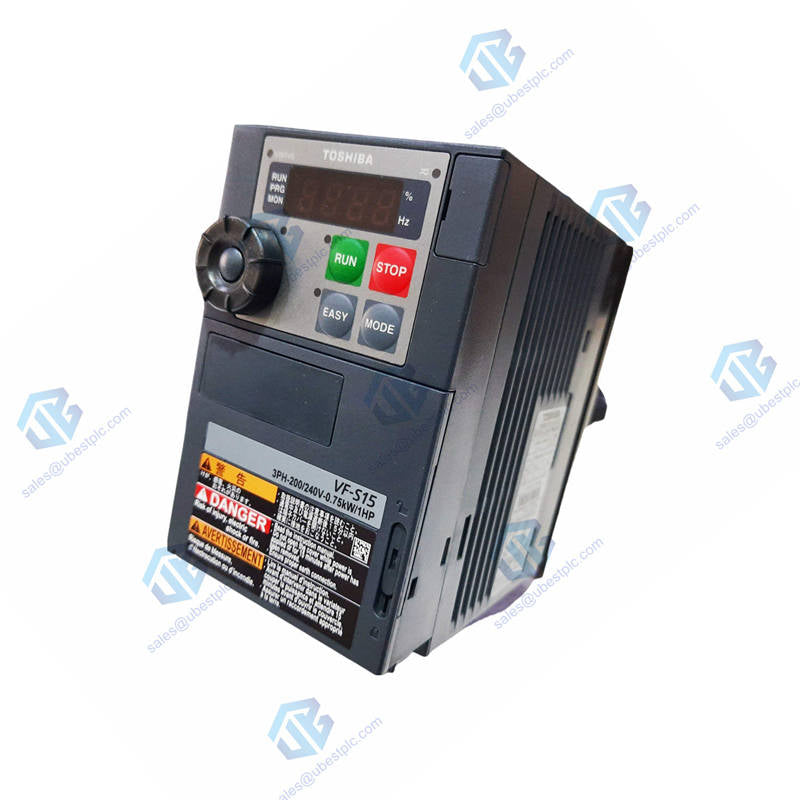

Toshiba VFS15-4007PL1-W1 1 HP Micro Drive
New Original Toshiba VFS15-4007PL1-W1 variable frequency drive, 1 HP. We ship fast via FedEx, UPS, or DHL. Backed by a reliable 12-month coverage guarantee.
Top Product Benefits
- Perfect for Pumps & Fans: Optimized for variable torque loads
- Smart Diagnostics: Stores last 8 fault records with data
- Clear Display: Four-digit LED for easy monitoring
- Network Ready: Built-in RS485 communication port
- Global Approvals: UL, CSA, and CE certified
Complete Technical Specifications
- Brand & Model: Toshiba VFS15-4007PL1-W1 (S15 Series)
- Product Type: Micro Variable Frequency Drive (VFD)
- Power Rating: 1 Horsepower (0.75 kW)
- Output Current: 2.3 Amps Full Load
- Input Voltage: 460 VAC, Three-Phase
- Output Voltage: 460 VAC, Three-Phase
- Enclosure Rating: IP20 (Open Chassis), Wall-Mount
- Display: Four-Digit / Seven-Segment LED (EOI)
- Communication: Two-Wire RS485 Port
- Ambient Temperature: -10°C to 50°C (14°F to 122°F)
- Operating Humidity: Up to 95% (Non-Condensing)
- Max Altitude: 1000 meters without power reduction
- Control Modes: V/Hz (Volts per Hertz)
- Overload Capacity: 150% for 60 seconds
- Switching Frequency: Adjustable, typically up to 15 kHz
- Braking: DC injection braking standard
- Safety & Compliance: UL Listed, cULus, CSA, CE Marked
Installation Instructions
Mount on a wall or inside a panel. Connect 460V three-phase power. Wire your 1 HP three-phase motor. Use the LED display to set parameters and view status. The RS485 port allows for remote control.
Ideal Applications
Specifically designed for centrifugal pumps, fans, and blowers. Saves energy in HVAC and water systems.
What's in the Box
- Toshiba VFS15-4007PL1-W1 VFD Unit
- Installation Guide and Manual
- 12-month product assurance
Professional FAQs
What type of motor applications is this drive best for?
This VFS15-4007PL1-W1 is ideal for variable torque applications like centrifugal pumps, fans, and blowers, offering great energy savings.
How does the fault history feature help?
It stores data for the last eight faults, helping you quickly diagnose and fix problems, reducing machine downtime.
Can I control this drive from a computer?
Yes, the built-in RS485 communication port allows you to connect it to a PLC, SCADA system, or computer for monitoring and control.
What is the operating temperature range?
It works reliably in ambient temperatures from -10°C to 50°C (14°F to 122°F).
Does it require an extra filter for noise?
This model is designed for general use. For applications in very sensitive environments, checking EMC compliance for your setup is advised.
