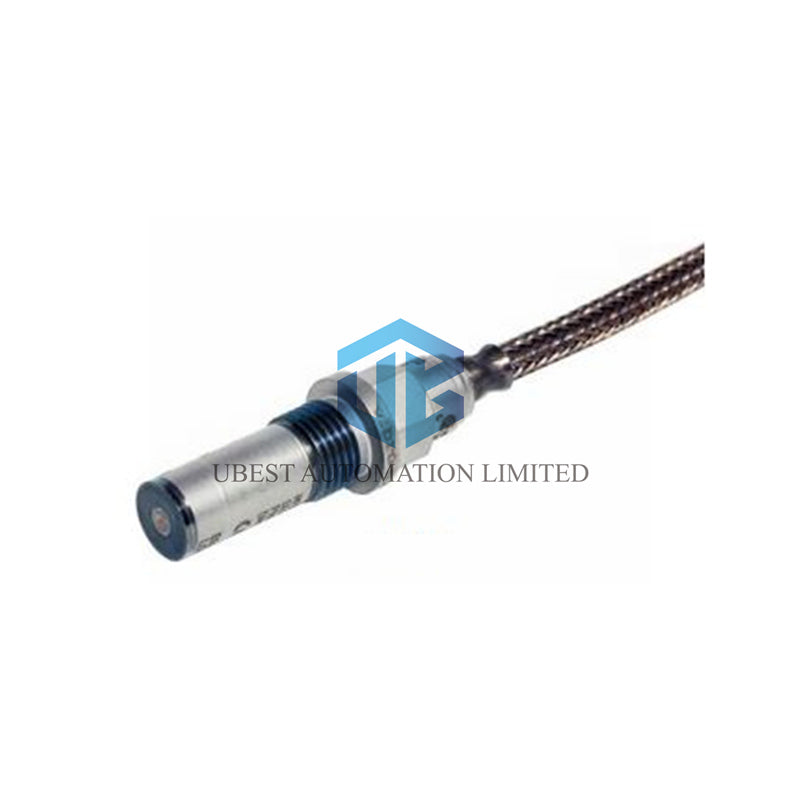

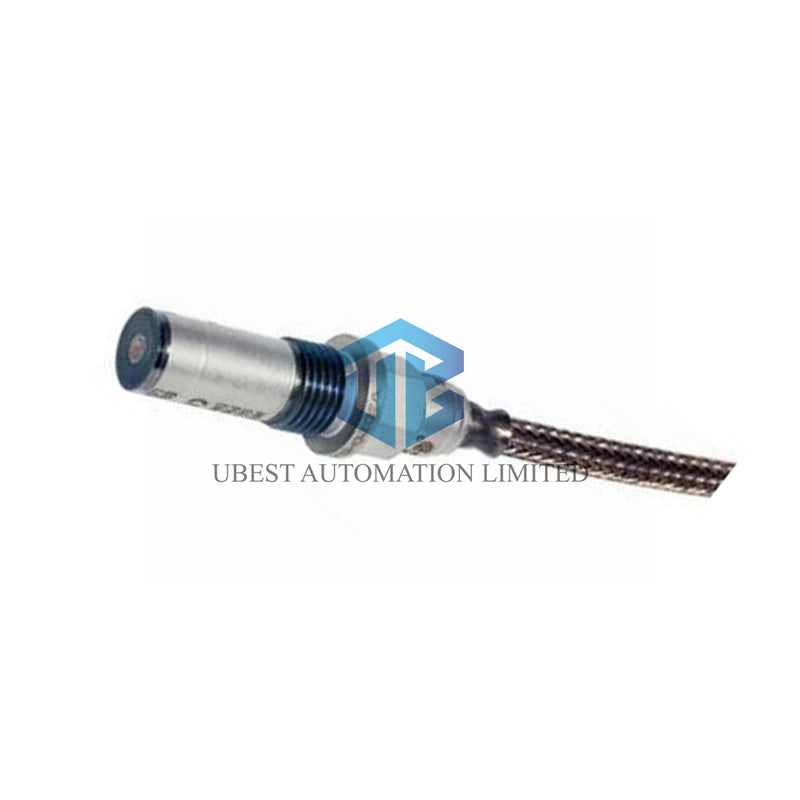

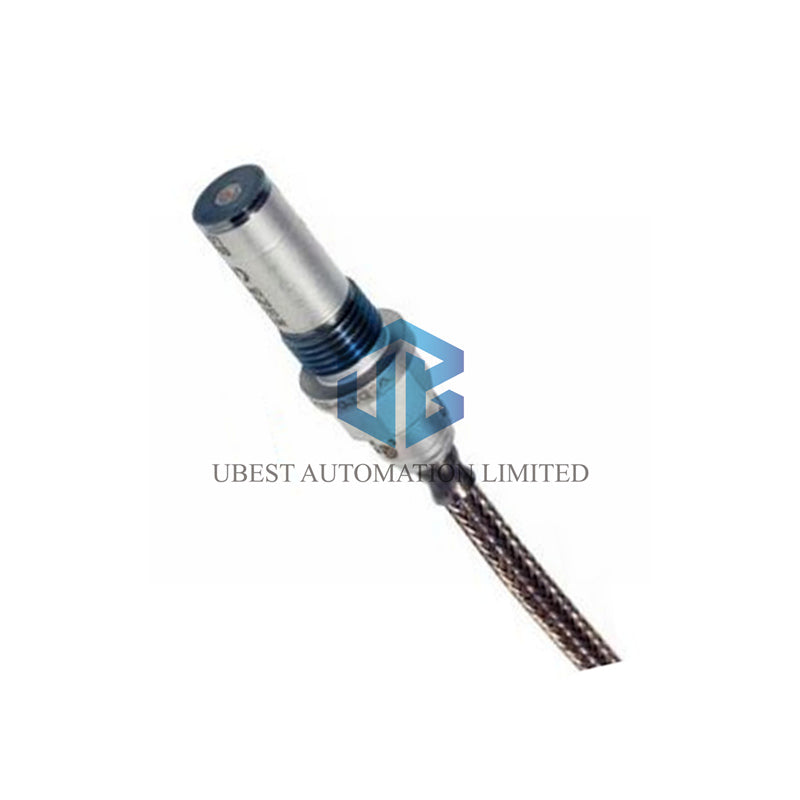

Vibro Meter CP 216 High-Temperature Pressure Transducer with 3m Cable

The CP 216 delivers precision pressure measurement in extreme thermal environments. This version features an extended 3-meter mineral insulated cable for flexible installation. Meggitt's advanced piezoelectric technology ensures reliable performance in gas turbine applications. The transducer operates without external power while maintaining exceptional accuracy.

Critical Performance Specifications

• Product Brand: Vibro-Meter® Precision Instruments
• Transducer Model: CP 216 with 3m Cable
• Pressure Sensitivity: 200 pC/bar ±2% at reference conditions
• Wide Frequency Range: 2 Hz to 15,000 Hz ±3 dB
• Dynamic Pressure Range: 0.0005 to 250 bar full scale
• Maximum Overload Pressure: 350 bar absolute maximum
• Linear Response: Better than ±0.8% of reading
• Natural Resonance: Exceeds 85,000 Hz typical
• Vibration Immunity: Less than 0.003 bar/g acceleration effect
• Electrical Isolation: > 2 GΩ at standard conditions

Extreme Environment Performance

• Continuous operation from -65°F to 878°F temperature range
• Short-term exposure capability to -94°F and 968°F extremes
• Premium NIMONIC alloy 90 construction for corrosion resistance
• Superior radiation tolerance to gamma and neutron exposure
• Withstands 2000 g mechanical shock in any orientation
• Hermetically sealed design prevents moisture ingress
• INCONEL alloy 600 cable material for maximum durability

Electrical Characteristics & Signal Output

• Two-wire charge output system requires zero power
• 320 pF typical transducer capacitance between poles
• 13 pF nominal capacitance from pole to ground
• 200 pF per meter additional cable capacitance
• LEMO connector rated for -67°F to 311°F operation
• High-temperature connector option available

Physical Properties & Construction

• Ultra-compact and lightweight at only 12 grams
• 3-meter mineral insulated cable included standard
• Total cable weight of approximately 75 grams
• Rugged hermetically welded housing construction
• Explosion-proof certified for hazardous areas
• Internal case insulation prevents ground loops

Package Contents & Delivery Options

• One complete CP 216 piezoelectric pressure transducer
• Integrated 3-meter mineral insulated cable assembly
• Factory pre-installed LEMO connector for immediate use
• Detailed calibration certificate with test results
• Optional IPC 704 signal conditioner available separately
• Fast worldwide shipping via FedEx, UPS, or DHL

Comprehensive Warranty Coverage

• Full 12-month warranty against defects
• Complete coverage for materials and workmanship
• Warranty period begins from customer receipt date
• Dedicated technical support team available
• Rapid replacement service for qualified claims

Expert Technical Questions

• What makes this transducer suitable for gas turbine applications?
• The CP 216 withstands extreme temperatures and vibrations common in turbine environments
• How does the 3-meter cable length affect performance?
• Longer cables increase capacitance but the design maintains signal integrity
• Can this transducer measure static pressure conditions?
• No, piezoelectric technology only measures dynamic pressure changes
• What signal conditioning equipment do I need?
• We recommend the Vibro-Meter IPC 704 or compatible charge amplifier
• Is special handling required for installation?
• Avoid sharp cable bends and ensure proper grounding for best results
