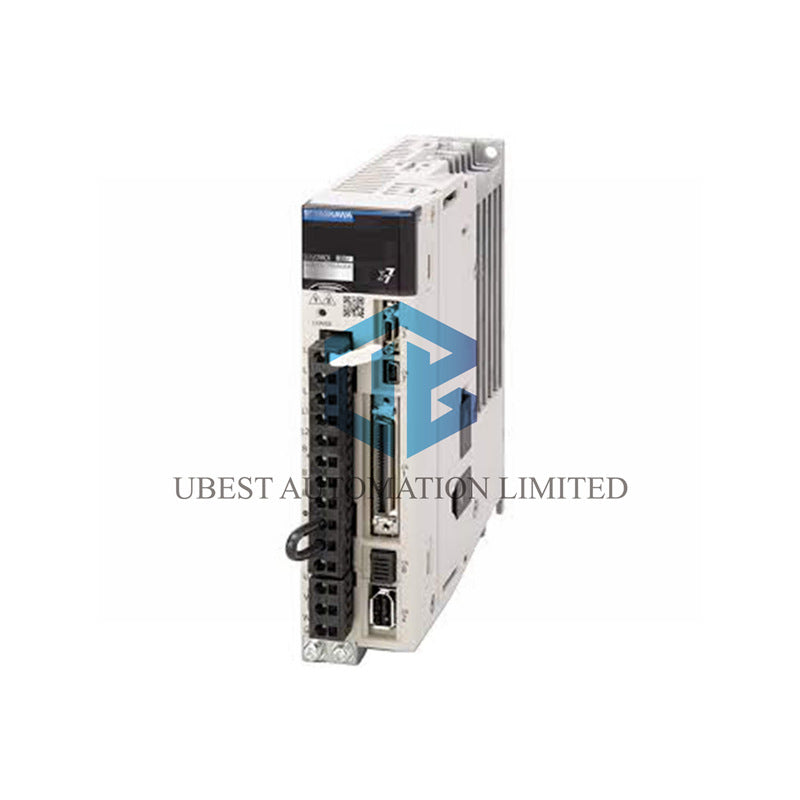

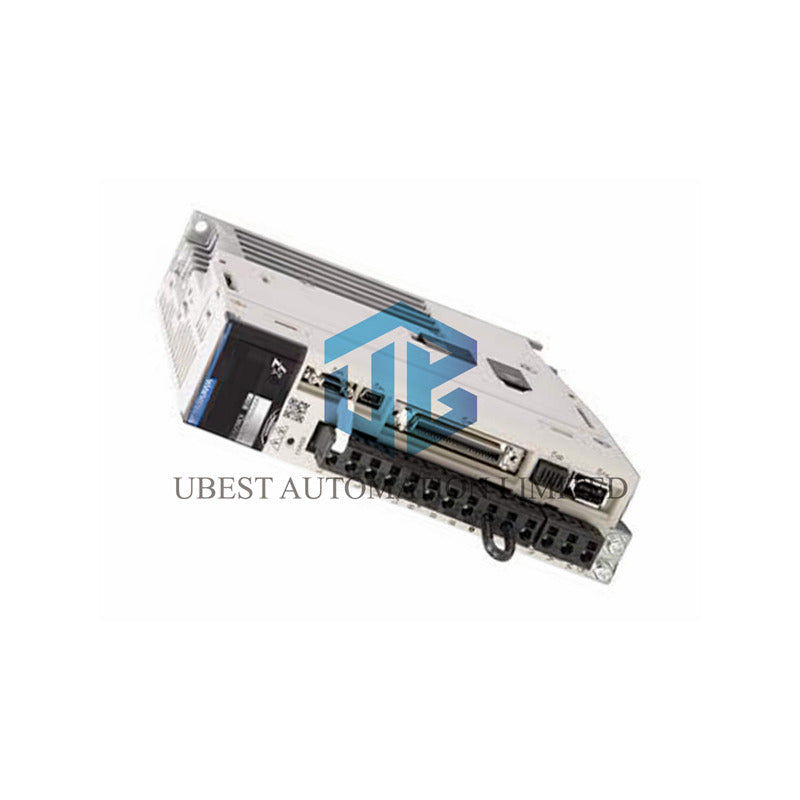

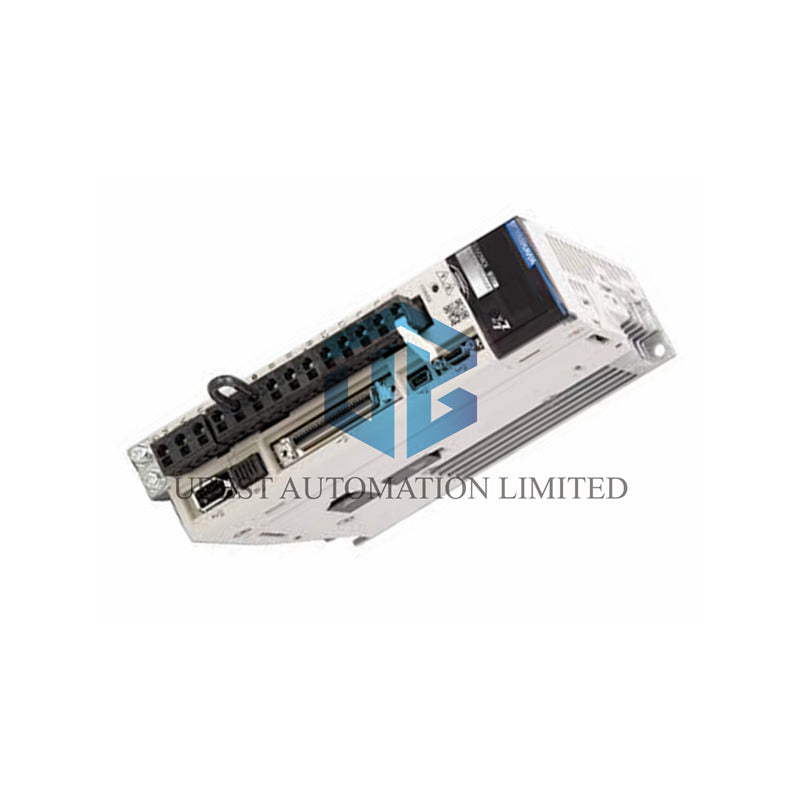

Yaskawa SGD7S-2R8A00A: Compact Precision for Small-Scale Automation

Command precise motion with the Yaskawa SGD7S-2R8A00A servo drive. This unit supports motors up to 0.4 kW, delivering 2.8 A of continuous current and a robust 9.3 A peak. It leverages Sigma-7 series technology for smooth, responsive, and energy-efficient control of your servo systems.

Designed for Efficiency & Responsiveness

• Optimized Power Range: Perfectly controls servo motors with a capacity up to 0.4 kW.
• High Dynamic Response: Delivers an instantaneous peak current of 9.3 A for rapid acceleration and deceleration.
• Wide Voltage Input: Connects directly to standard 200-240 VAC single or three-phase power supplies.
• Low Power Loss Design: Minimizes energy waste with efficient circuit design for cooler operation.
• Sigma-7 Core Technology: Enables advanced vibration suppression and adaptive tuning for optimal performance.

Complete Technical Specifications

• Brand & Model: Yaskawa SGD7S-2R8A00A
• Series: Sigma-7 (Advanced Performance)
• Max. Applicable Motor: 0.4 kW
• Continuous Output Current: 2.8 A rms
• Peak Output Current: 9.3 A rms (for short durations)
• Main Circuit Supply: 200-240 VAC, -15% to +10%, 50/60 Hz, Single/3-Phase
• Control Circuit Supply: 200-240 VAC, -15% to +10%, 50/60 Hz
• Power Supply Capacity: 1.0 kVA
• Input Current (Main): 2.5 A rms
• Input Current (Control): 0.2 A rms
• Total Power Loss: Approx. 34.5 W (Main: 22.5W + Control: 12W)
• Minimum External Brake Resistor: 40 Ω (Required for handling regenerative energy)
• Control Modes: Torque, Speed, Position, and Advanced Position (Pn001 setting).
• Feedback Support: Compatible with Sigma-7 motors with 24-bit absolute/incremental encoders.
• Communication Interfaces: Built-in pulse train input; options for MECHATROLINK-III, EtherCAT, or PROFINET.
• Response Frequency: 3.2 kHz speed loop, 2.5 kHz position loop (typical).
• Ambient Operating Temperature: 0 to 55°C (32 to 131°F).
• Storage Temperature: -25 to 85°C (-13 to 185°F).
• Vibration Resistance: 4.9 m/s² (0.5 G) at 10 to 60 Hz.
• Protection Class: IP20 (For installation inside a protective control panel).
• Dimensions (WxHxD): Approx. 45 mm x 180 mm x 169 mm.

Package Contents

• One (1) Yaskawa SGD7S-2R8A00A servo drive main unit.
• One (1) set of factory-supplied connector covers and labels.
• Basic installation and connection documentation.
• All items are packaged in original protective materials.

Warranty & Quality Assurance

• This drive is covered by a standard 12-month warranty from the date of purchase.
• The warranty ensures the product is free from functional defects upon delivery.
• Our technical support is available to assist with configuration and troubleshooting.

Global Shipping Information

• We ship worldwide using reliable express carriers: FedEx, UPS, and DHL.
• Every unit is carefully packed to ensure safe arrival at your facility.
• You will receive full tracking details as soon as the shipment is processed.

Integration & Application FAQs

Which Yaskawa servo motors are compatible with this drive?

The Yaskawa SGD7S-2R8A00A is designed for Sigma-7 series motors up to 0.4 kW, such as the SGM7J-04AFC6S. Ensure the motor's rated current is within the drive's 2.8A continuous rating for optimal matching.

What does the “2R8A00A” suffix in the model number indicate?

This suffix defines key specs: '2R8' denotes the continuous output current (2.8A), and 'A00A' specifies the voltage class (200V), basic functionality, and standard communication interface (pulse train).

Do I always need an external brake resistor with this drive?

Yes, for most applications. The drive has limited internal capacity to absorb regenerative energy from the motor during deceleration. An external resistor meeting the 40 Ω minimum requirement is necessary to prevent overvoltage faults.

Can I use this drive for simple speed control without a complex controller?

Yes. You can set the drive to "Speed Control Mode" and provide a simple analog voltage signal (0 to ±10V) to command motor speed. This allows operation directly from a PLC analog output or a potentiometer.

What is a common commissioning mistake with Sigma-7 drives?

Skipping the auto-tuning procedure. After connecting the motor, you must perform a rotational or stationary auto-tuning. This allows the drive to identify the motor's electrical characteristics and optimize its control loops for stable, responsive motion.
