Overview

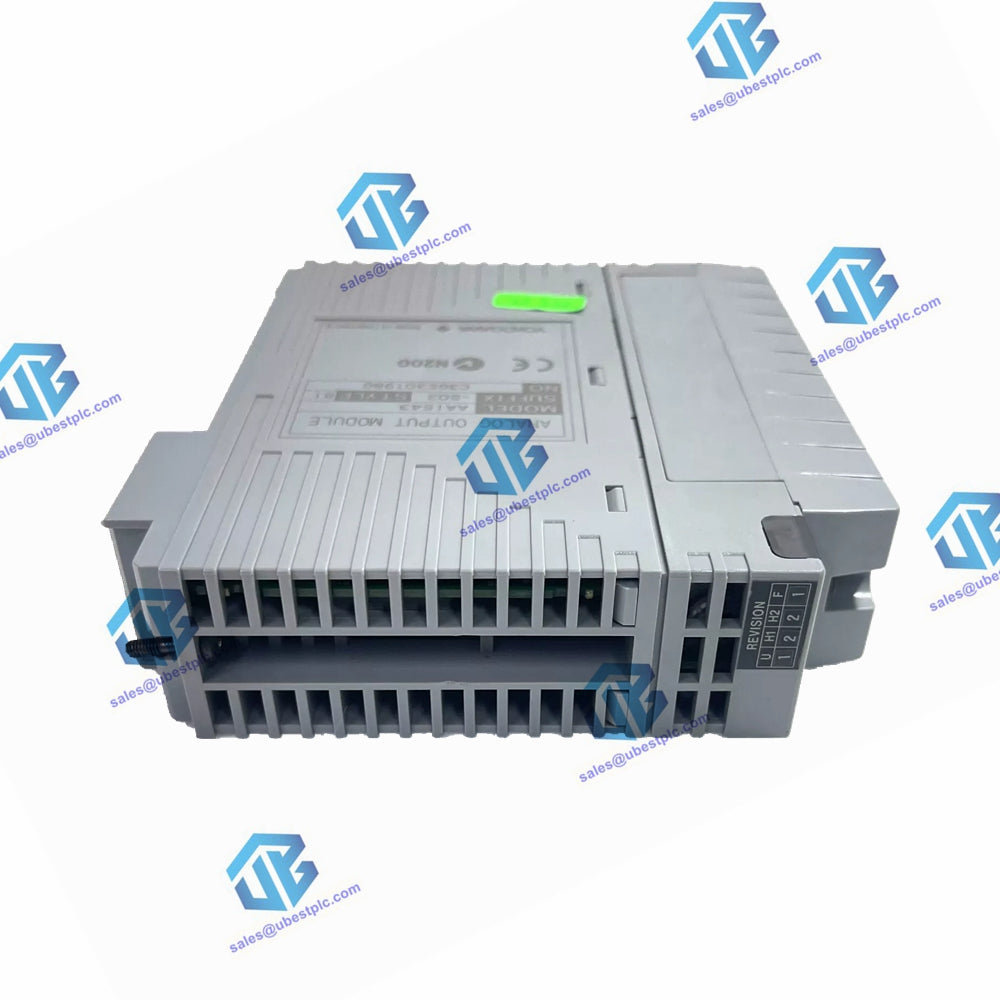

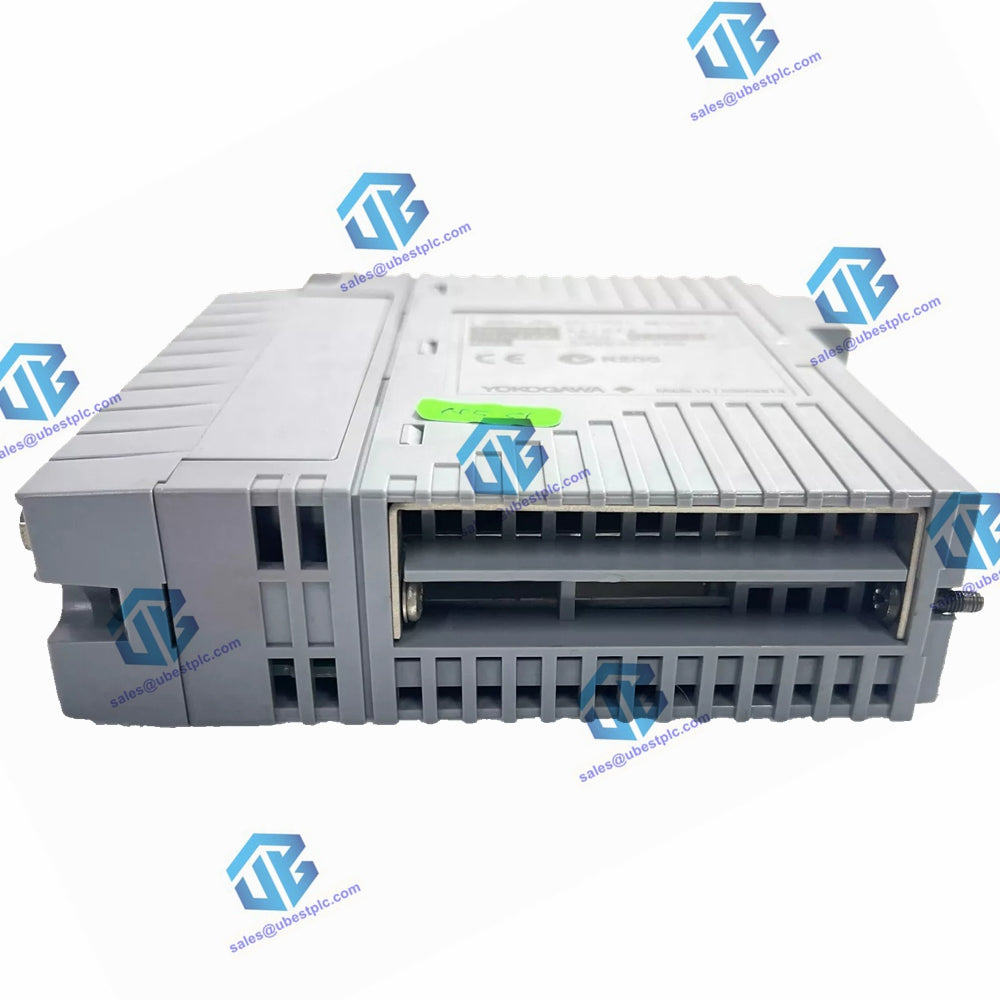

The Yokogawa AAI543-S03/A4S00 is a 16-channel isolated current output module designed for industrial applications. It features a standard switch-over response in a redundant configuration without explosion protection, with options including ISA Standard G3 and a temperature range of -20 to 70 °C. It is compatible with the KS Cable Interface Adapter for connecting the AEA4D Terminal Board.

Key Features

• 16 isolated current output channels
• Output signal range: 4 to 20 mA
• High accuracy: ±48 μA
• Fast data update period: 10 ms
• Low drift due to ambient temperature change: ±16 μA/10°C
• Standard switch-over response in redundant configurations
• ISA Standard G3 option (A4S00 suffix)
• Temperature option (-20 to 70 °C) (S03 suffix)
• Suitable for harsh environments

Technical Specifications

• Number of Output Channels: 16
• Output Signal: 4 to 20 mA
• Withstanding Voltage: Between output and system: 1500 V AC, for 1 minute
• Allowable Load Resistance: 0 to 750 Ω
• Circuit-Open Detection: Less than 0.65 mA
• Accuracy: ±48 μA
• Data Update Period: 10 ms
• Drift Due to Ambient Temperature Change: ±16 μA/10°C
• Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)
• Weight: Approx. 0.4 kg
• External Communication: Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
• HART Communication: Not available

Suffix Codes

• -S: Standard type
• -0: Standard switch-over response in redundant configuration with no explosion protection
• -3: With ISA Standard G3 option and temperature (-20 to 70 °C) option

Option Codes

• /A4S00: With Pressure Clamp Terminal Block [Model: ATA4S-00]
