Mastering Mid-Sized Industrial Automation: A Comprehensive Guide to the Siemens S7-1200 PLC

The Siemens S7-1200 stands out as the backbone for countless small-to-midsize industrial automation projects. Engineers frequently choose this compact, powerful, and budget-friendly PLC. It is a dominant force in applications like machine building, packaging lines, and specialized food processing. This guide focuses on the critical steps: core setup, proper wiring, and essential PLC programming basics. We will confidently transition you from initial installation to executing your very first logic program.

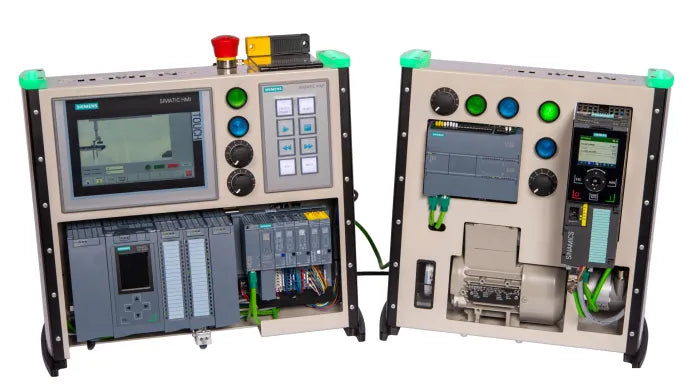

Why the Siemens S7-1200 is the Preferred Choice for Factory Automation

Many seasoned engineers consider the S7-1200 the ideal blend of affordability and advanced functionality. It delivers premium features usually found only in higher-end control systems. This balance makes it extremely popular in modern factory automation. MarketsandMarkets data suggests the compact PLC segment is expanding rapidly, and the S7-1200 is a key player.

Scalability for Growth: The unit works perfectly for standalone machine control. However, it can seamlessly expand its capabilities if your system requirements increase.
Flexible I/O Options: Its onboard digital and analog points minimize the need for immediate add-on modules. When necessary, readily available expansion modules support system growth.
Integrated PROFINET Standard: Built-in networking simplifies communication. You can effortlessly integrate HMIs, motor drives, and even link the system into a larger SCADA architecture.
Unified TIA Portal Environment: This singular software integrates the entire system—PLC, HMI, and networking configuration. This drastically reduces engineering and commissioning time.

Author's Insight: The TIA Portal is a game-changer. It lowers the learning curve significantly, which is a major factor for companies adopting new industrial automation platforms.

Essential Hardware Overview: Core Components of the S7-1200 CPU

Every S7-1200 Central Processing Unit (CPU) includes the necessary elements to manage a machine effectively. Understanding these core components is the first step in successful deployment.

Power Supply Terminals: These terminals accept a 24 VDC input to energize the controller.
PROFINET Port: This integrated port serves for programming, connecting Human-Machine Interfaces (HMIs), and establishing plant-wide communication.
Onboard I/O: The number of built-in digital and analog input/output points varies by specific CPU model number. Larger CPUs offer more integrated points.
Memory Card Slot: This slot is critical for program storage, quick system backups, and efficient firmware updates.
Design for Panel Integration: The standard DIN-rail mountable design makes for straightforward and fast panel assembly.

Ubest Automation Comment: This modularity is a massive financial advantage. Companies do not have to over-invest initially. They can add specific capability only when the application demands it.

Critical Installation and Wiring Practices for Reliability

Correctly installing and wiring the hardware prevents costly and time-consuming troubleshooting later. Follow these established industry best practices.

Proper Mounting: Mount the CPU vertically on the DIN rail. This orientation ensures adequate airflow, preventing detrimental overheating. Always maintain at least 25 mm clearance both above and below the unit for vent breathing.
Power Requirements: The S7-1200 demands a stable, regulated 24 VDC power supply. Connect terminals L+ and M to your power source. Ensure the supply's current capacity is sufficient for the CPU and all connected external devices.
Wiring Specification: For most applications, AWG 24–16 $\left(0.25–1.5 \text{ mm}^2\right)$ wiring is suitable. Crucially, double-check the polarity. Reversed wiring is a common rookie mistake that absolutely prevents the system from starting.

Handling Digital and Analog Signals with Precision

Accurate signal handling is non-negotiable in reliable control systems. Take extra care with power isolation and signal integrity.

Digital Signals (Inputs/Outputs):
Digital Inputs (I0.0, I0.1, etc.): These accept 24 VDC signals originating from sensors, limit switches, or pushbuttons.
Digital Outputs (Q0.0, Q0.1, etc.): These supply 24 VDC to various actuators, such as lamps or intermediate relays. Typical capacity is 0.5 A per channel.
Protection Note: Use external fusing to protect your outputs from overload. This is vital when driving inductive loads like solenoids or small motors.

Analog Signals (Inputs):
Analog Inputs (AI0, AI1): The PLC processes signals from transmitters for parameters like temperature or pressure. These inputs accept standard 0–10V or 4–20 mA signals.
Noise Reduction: Always use shielded cable for analog signal lines. To avoid ground loops and noise pickup, ground the shield only at one end—typically at the control panel side.

Expert Tip: Physically separating high-current power wiring from all analog and communication wiring dramatically reduces electromagnetic interference (EMI).

Programming the S7-1200: Getting Started with TIA Portal

Once hardware is secure and wired, you begin programming in the TIA Portal. This unified engineering software environment is the gateway to your factory automation logic.

Software Installation: Install the TIA Portal software on your engineering workstation.
Project Creation: Start a new project and correctly select the CPU using its specific catalog number.
Network Setup: Assign a PROFINET device name and a unique IP address. This enables communication between your PC and the PLC.
Hardware Configuration: Configure all onboard I/O points and any connected expansion modules.
Logic Development: Build your core control program within the Main Program Block, designated as OB1. All default control logic executes here.

This single-software approach accelerates development. Once engineers master TIA Portal, they can manage control systems across the entire Siemens ecosystem, including HMIs and drives.

Executing Your First Program: Simple Control Logic Demonstration

Writing a basic input-to-output program is the perfect way to confirm both your wiring and programming are functioning correctly.

Create Input Logic: Insert a Normally Open (NO) contact in the program and link it to input address I0.0 (e.g., a physical pushbutton).
Connect to Output: Connect this contact to a Coil linked to output address Q0.0 (e.g., a signal lamp or motor starter).
Expected Outcome Upon Download:
Pressing the physical pushbutton connected to I0.0 closes the rung condition.
Consequently, output Q0.0 energizes, which activates your external device.

This straightforward task validates the entire PLC control cycle and confirms correct hardware-software interaction.

Monitoring and Diagnostics for System Integrity

Effective troubleshooting is a core skill. TIA Portal offers powerful tools for this purpose.

Live Monitoring: Going "online" in TIA Portal lets you monitor the CPU status in real time. The colors of inputs and outputs change dynamically as they activate, simplifying the debugging of logic or wiring errors.
Diagnostics Buffer: The CPU's diagnostics buffer is invaluable. It logs all system events, warnings, and errors. When the program behaves unexpectedly, consulting this log provides immediate, context-specific clues.

By leveraging live monitoring alongside the diagnostics buffer, technicians can quickly isolate and resolve nearly all startup issues.

Common Initial Challenges and Troubleshooting Tips

Every newcomer faces initial hurdles. Knowing the common pitfalls will save you hours of downtime.

PLC Connection Failure: Check your IP address setting. Ensure the PROFINET device name in TIA Portal exactly matches the name on the physical PLC.
No Output Power: Verify the external 24V supply to the output terminals is connected. Check for any blown fuses protecting the output channels.
Unstable Analog Values: Use shielded cable for all analog signals and ensure proper single-point grounding to eliminate noise.
"PLC Not Consistent" Error: This typically means you downloaded the control logic but forgot to download the updated hardware configuration.

Technical Essentials Checklist:
✅ Grounding: Single-point ground analog shields.
⚙️ Power: Verify external 24 VDC on L+ and M.
🔧 Networking: Confirm matching PROFINET device name and IP.

Application Scenarios and Solutions

The S7-1200 thrives in specific industrial automation environments where its cost-to-performance ratio is unmatched.

Frequently Asked Questions (FAQs)

Q: I have set up my network, but I still cannot connect my PC to the PLC. What is the most overlooked step?
A: Often, engineers forget to ensure their PC's Ethernet adapter is configured with a static IP address in the same subnet as the PLC. For example, if the PLC is 192.168.0.10, your PC should be 192.168.0.XX (where XX is not 10) to establish a connection.

Q: How do I ensure my analog sensors are reading accurately and not drifting over time?
A: Beyond using shielded cables, perform an initial calibration check. Use a calibrated voltage/current source to simulate a 0% and 100% signal. Check the corresponding raw data values in the PLC and document them. This baseline allows you to easily diagnose sensor drift versus noise issues later on.

Q: When should I really jump to the more powerful S7-1500 series instead?
A: The switch becomes necessary when your application demands higher performance beyond simple machine control. The S7-1500 is specifically designed for: larger, complex projects (over 256 I/O points), integrated functional safety (Safety PLC), high-speed deterministic motion control, or systems requiring significant memory and faster scan times for continuous data processing.

Considering the Step Up: The Siemens S7-1500

While the S7-1200 is highly capable, some advanced applications are better suited for the high-performance S7-1500 series.

You should consider the S7-1500 if your project requires:
Significantly larger program memory capacity.
Integrated safety functions (Safety Integrated).
Substantially faster execution speeds for high-speed loops.
Advanced diagnostics and system-level fault tolerance.

For the vast majority of small and medium-scale industrial systems, however, the S7-1200 offers the perfect balance of competitive cost and powerful capability.

We trust this detailed guide helps you confidently deploy the Siemens S7-1200 in your next automation project.
