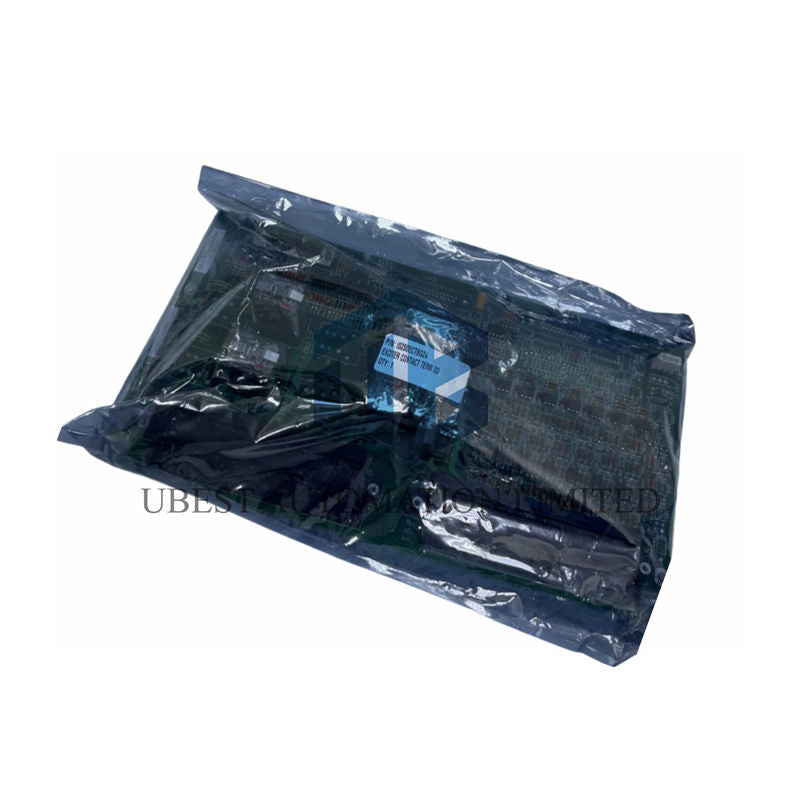

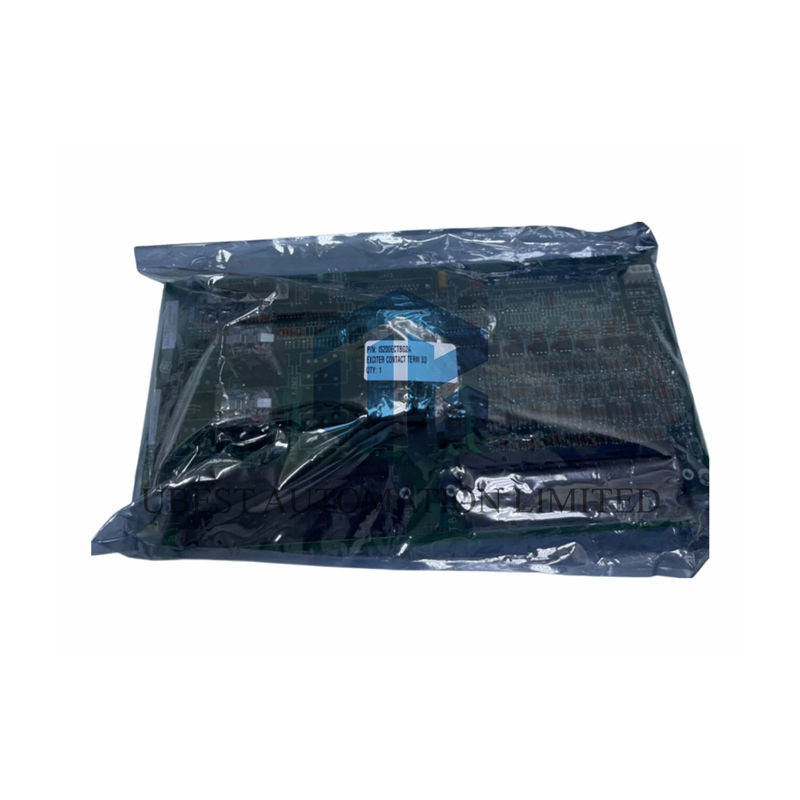

GE EX2100 Exciter Contact Terminal Board IS200ECTBG2A
This Exciter Contact Terminal Board from General Electric is a key component for the EX2100 Excitation Control System. Designed for Simplex mode operation, it manages critical contact inputs and outputs for reliable generator control. It features two trip relays for customer lockout and four general-purpose Form-C relays.
Technical Data
Here are the key specifications for the IS200ECTBG2A board:
Brand: General Electric
Model: IS200ECTBG2A
Series: EX2100
Function: Exciter Contact Terminal Board
Operational Mode: Simplex Only
Relay Control Voltage: 24 V DC
Wetting Voltage: 70 V DC
Customer Power: 125 V DC
Weight: 0.34 kg
Dimensions: 150 x 76 x 90 mm
Country of Manufacture: United States
Key Features & Benefits
Simplex Mode Design: Optimized for non-redundant control systems.
Robust Relay Outputs: Two trip relays and four Form-C relays for diverse control needs.
Integrated Contact Wetting: Simplifies wiring with built-in 70V DC wetting for inputs.
Critical Monitoring: Monitors essential 52G and 86G contact inputs for system protection.
Easy Integration: Connects seamlessly to the EX2100 system via the EMIO board.
Compatibility
This board is part of the GE EX2100 series. It is designed to work with other EX2100 components like the EMIO board. It is only for use in simplex mode applications. The ECTBG1 version is used for redundant mode.
Installation Guide
Installation is straightforward. The board connects to the EBKP backplane using three 25-pin sub-D connectors (J405, J408, J415). Terminal blocks TB1 and TB2 can be removed for easier wiring. Always follow the official GEH-6632 manual for detailed installation and safety procedures.

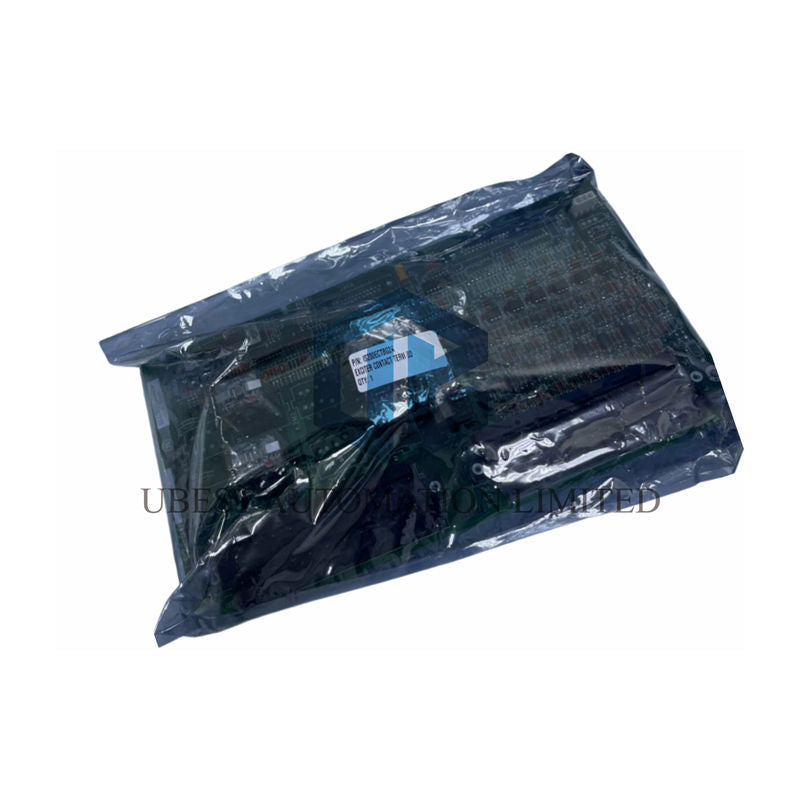

Packaging & Warranty
