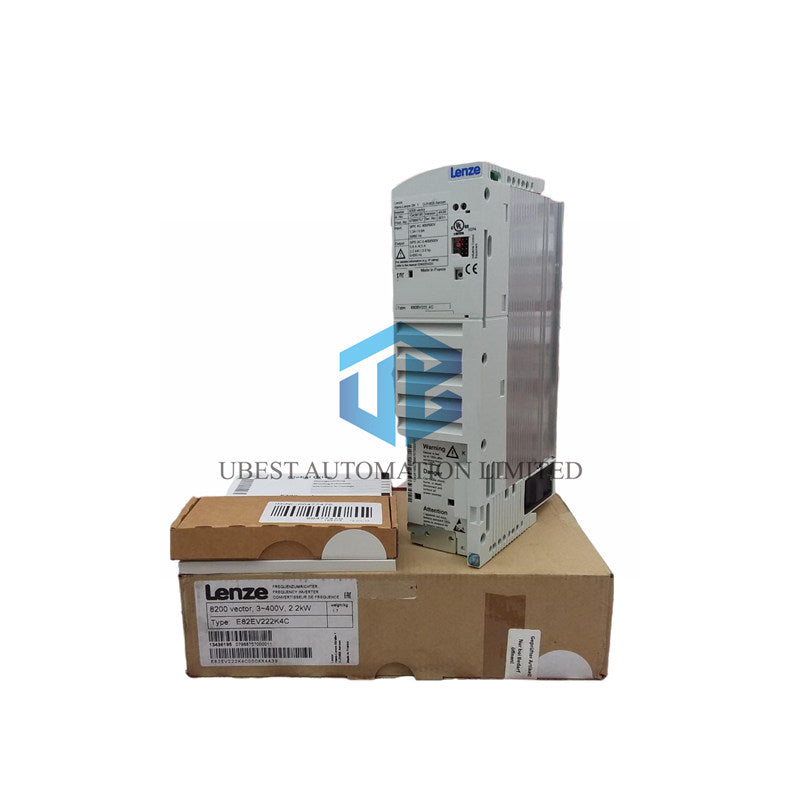

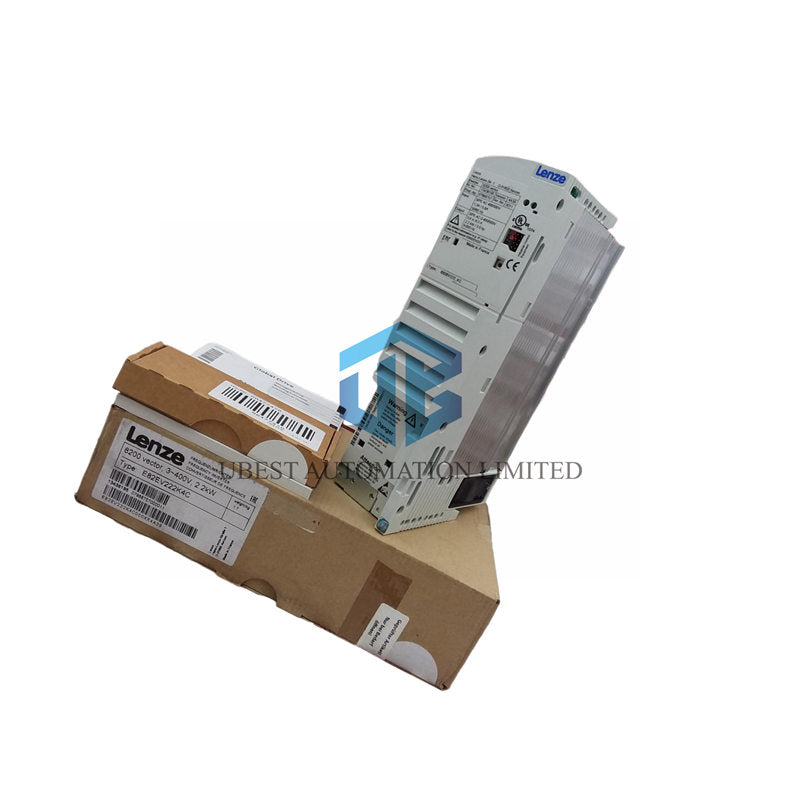

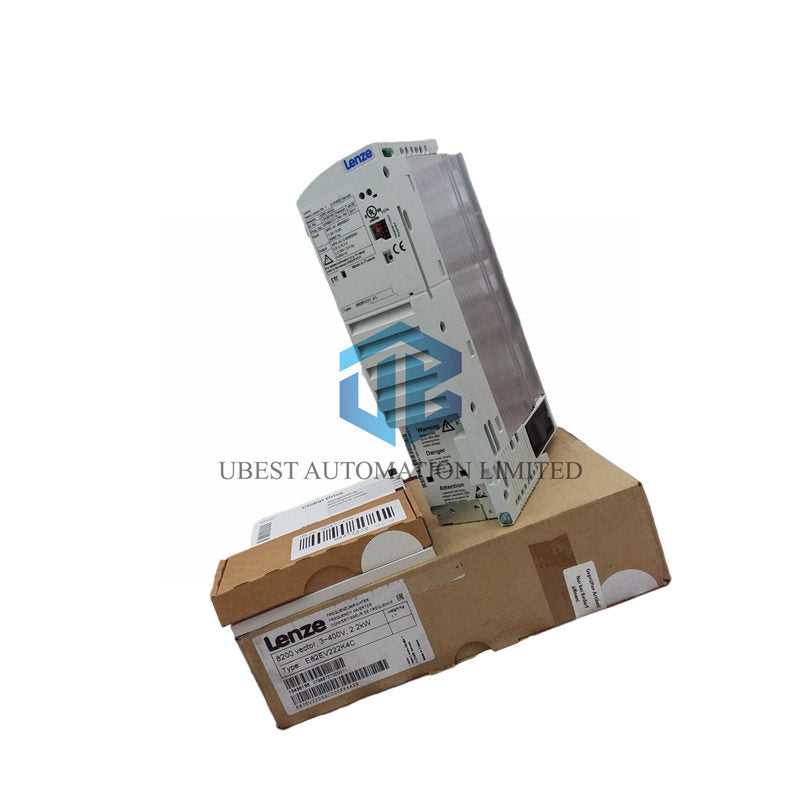

E82EV222K4C Lenze Vector Inverter | 2.2kW Drive Controller
UBEST – Fornecedor Global Confiável de Peças para Automação
Oferecemos uma ampla variedade de peças de reposição para automação industrial em estoque. Todos os produtos possuem garantia de 12 meses e uma política de reembolso de 30 dias para problemas de qualidade.
Lenze E82EV222K4C Frequency Inverter: Smart Motor Control
Discover the Lenze E82EV222K4C frequency inverter from the 8200 series. This compact base controller delivers precise vector control for your motors. The E82EV222K4C handles wide voltage ranges while maintaining reliable performance.
- Easy Installation: Compact size fits in tight spaces
- Flexible Power Options: Works with AC and DC power sources
- Precise Control: Advanced vector control technology
- Wide Compatibility: Suitable for various motor applications
Technical Specifications
Product Model: Lenze E82EV222K4C Frequency Inverter
Product Series: 8200 Vector Base Controller
Rated Power: 2.2 kW
Input Voltage: 320-550V AC, 3-Phase
DC Supply: 450-775V DC
Frequency Range: 45-65 Hz
Rated Output Current: 3.9A at 8kHz
Maximum Output Current: 5.9A at 8kHz
Brake Chopper Resistance: 230Ω minimum
Power Loss: 100W typical
Protection Rating: IP20
Operating Temperature: -10°C to +55°C
Storage Temperature: -25°C to +60°C
Weight: 1.6 kg
Cooling Method: Natural convection
Control Method: Sensorless vector control
Warranty & Shipping
This product comes with complete 12-month warranty coverage. We ship quickly worldwide using FedEx, UPS, and DHL services.
Frequently Asked Questions
What applications is this inverter best suited for?
Perfect for conveyor systems, pumps, fans and basic machinery requiring speed control.
Does it need special programming software?
Yes, Lenze's free software allows easy parameter setting and operation monitoring.
Can it operate in dirty environments?
The IP20 rating means it should be installed in clean, protected electrical cabinets.
What's the advantage of vector control?
It provides better low-speed torque and more precise speed regulation than standard control.
How do I connect external brake resistors?
Use the brake chopper terminals with resistors rated at least 230 ohms for proper braking.
