6ES7416-3ER05-0AB0 Siemens S7-400 CPU | 11.2MB Memory
UBEST – Надежный глобальный поставщик запчастей для автоматизации
Мы предлагаем широкий ассортимент запасных частей для промышленной автоматизации, имеющихся на складе. Все продукты имеют 12-месячную гарантию и 30-дневный возврат в случае проблем с качеством.

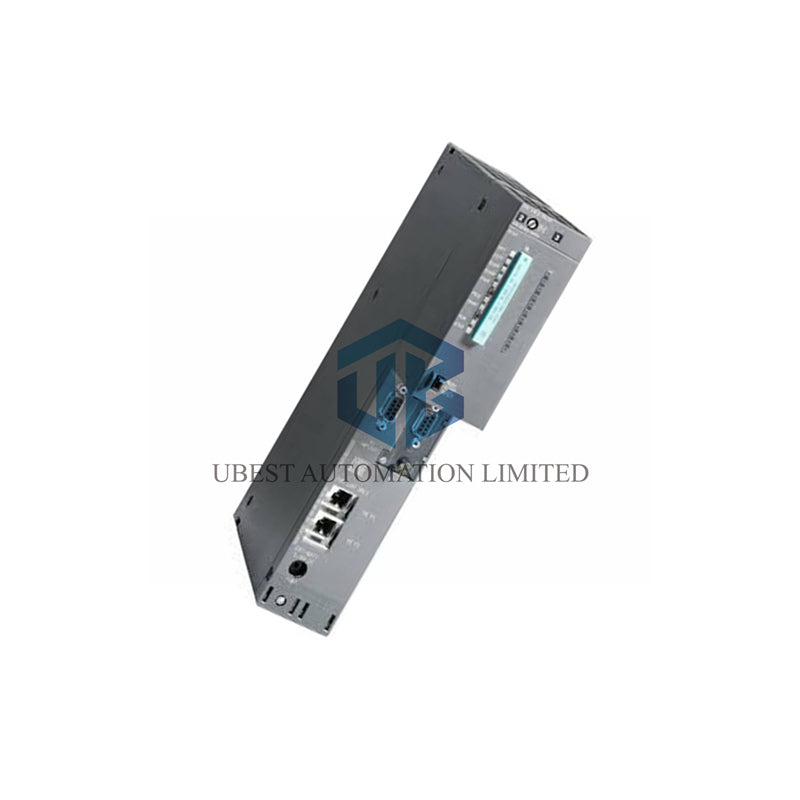

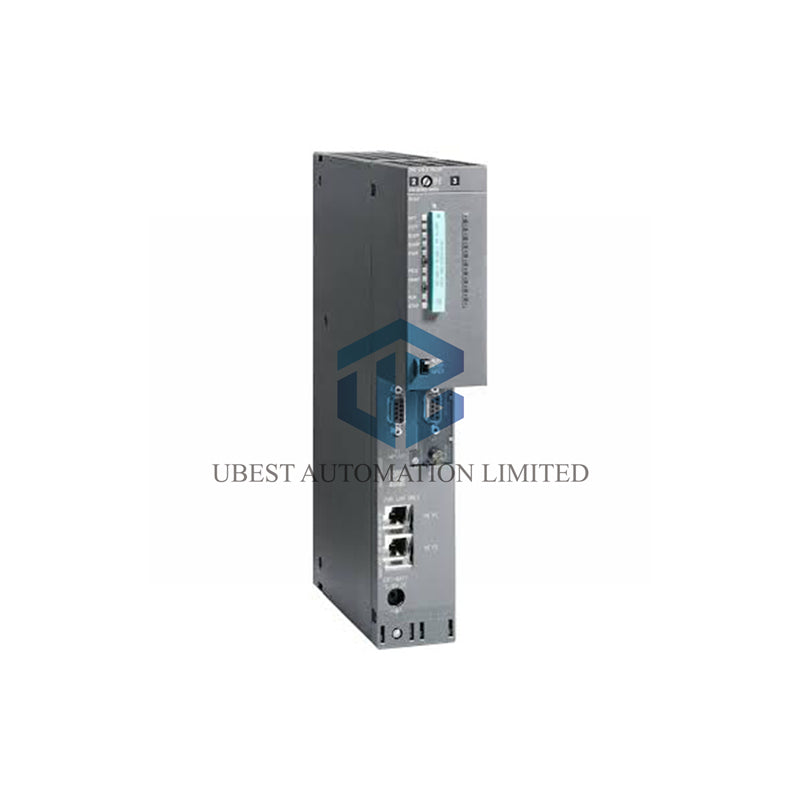

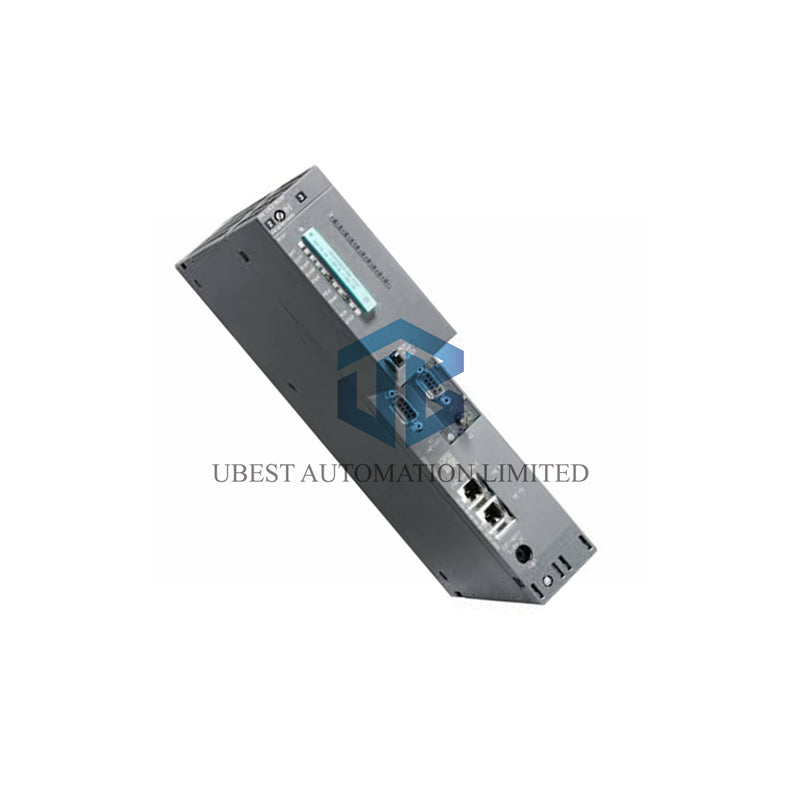

Siemens 6ES7416-3XR05-0AB0 CPU 416-3: High-Performance Automation Controller
This powerful S7-400 CPU delivers exceptional processing speed for complex automation tasks. The 6ES7416-3XR05-0AB0 features 11.2 MB memory and multiple communication interfaces, making it ideal for large-scale industrial applications requiring reliable performance.
Key Advantages
- Fast Processing: 30ns instruction execution for rapid response
- Large Memory: 11.2 MB total (5.6 MB code, 5.6 MB data)
- Multiple Interfaces: MPI/DP and PROFIBUS DP connectivity
- Expandable System: Supports up to 21 expansion devices
- Robust Design: Industrial-grade construction for harsh environments
Technical Specifications
- Product Code: 6ES7416-3XR05-0AB0
- CPU Type: SIMATIC S7-400 Series
- Work Memory: 11.2 MB (5.6 MB code + 5.6 MB data)
- Load Memory: Up to 64 MB with memory card
- Processing Speed: 30ns for bit operations
- Communication Ports: 2 integrated + 1 optional interface
- Max Digital I/O: 131,072 inputs and outputs
- Max Analog I/O: 8,192 inputs and outputs
- Power Consumption: 5.5W typical, 6W maximum
- Backup Current: 125 μA typical with battery
Frequently Asked Questions
What programming software is required?
This 6ES7416-3XR05-0AB0 CPU requires STEP 7 V5.3 SP2 or higher with hardware update for configuration.
How many expansion modules can be connected?
The system supports up to 21 expansion devices and 4 CPUs in multicomputing configuration.
What communication protocols are supported?
It handles MPI, PROFIBUS DP master/slave, and offers routing capabilities for network communication.
Is battery backup required for memory retention?
Yes, the CPU requires battery backup to maintain data when main power is disconnected.
What's the maximum number of connected OPs?
You can connect up to 63 operator panels for comprehensive system monitoring and control.
Shipping & Protection
We ship worldwide via FedEx, UPS, and DHL. Your purchase includes 12-month comprehensive protection ensuring reliable operation.
