913-402-000-013 Meggitt Vibro-Meter - 4m Proximity Sensor
UBEST – Надежный глобальный поставщик запчастей для автоматизации
Мы предлагаем широкий ассортимент запасных частей для промышленной автоматизации, имеющихся на складе. Все продукты имеют 12-месячную гарантию и 30-дневный возврат в случае проблем с качеством.

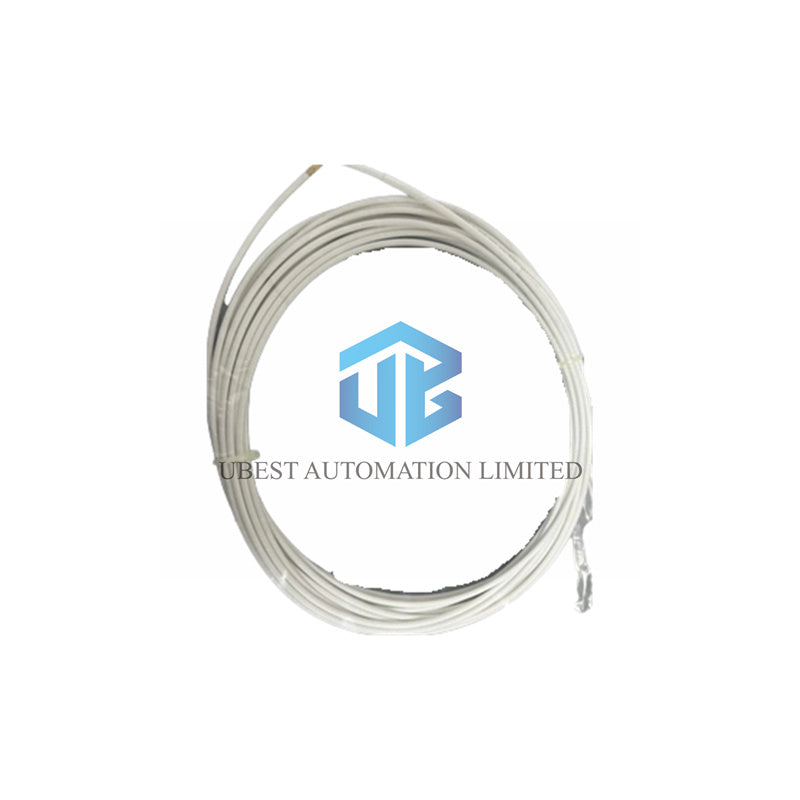

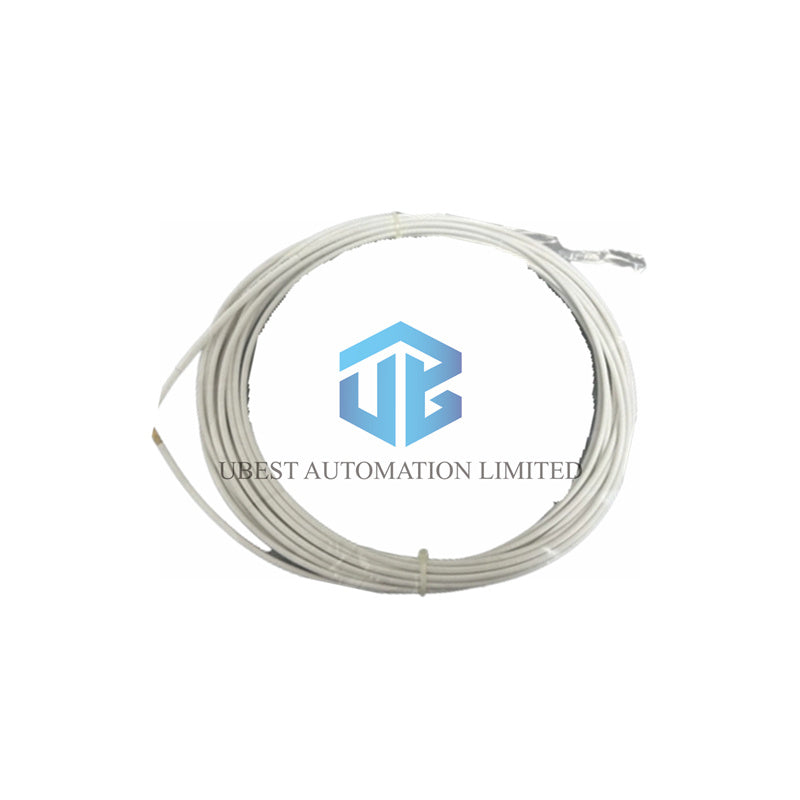

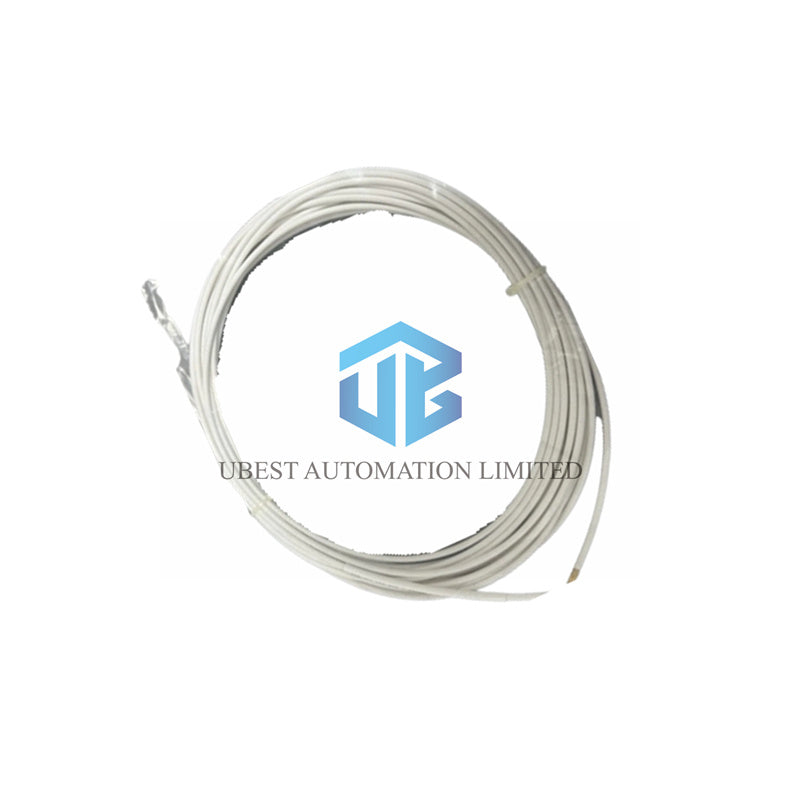

Meggitt Vibro-Meter Proximity Sensor System - 4m Cable
- Premium Quality - Genuine Meggitt Vibro-Meter eddy-current sensor
- Compact 4m Cable - Perfect for medium-distance installations
- Industrial Tough - IP68 rated, handles extreme conditions
- Fast Shipping - Available via FedEx, UPS, DHL worldwide
About This Product
The Meggitt Vibro-Meter proximity system delivers precise vibration monitoring with 4-meter cable. This proximity measuring system uses eddy-current technology for non-contact shaft measurement. Excellent for machinery protection in demanding industrial applications.
Technical Details
- Product Number: 913-402-000-013/A1-E040-F0-G000
- System Type: Proximity Measuring System
- Cable Length: 4.0 meters exact length
- Probe Diameter: 8 mm standard size
- Measurement Range: 2 mm or 4 mm options
- Frequency Range: DC to 20,000 Hz
- Temperature Limit: -40°C to +180°C
- IP Protection: IP68 waterproof rating
- Cable Material: FEP coaxial, 70 ohm
- Mounting Style: Two M4 screw holes
- Weight Complete: 220 grams total
- Vibration Proof: 5g peak resistance
Why Choose This System
- No external protection needed
- Temperature compensation built-in
- Short circuit protection
- API 670 standard compliant
- Works with VM600 systems
- Self-locking secure connectors
Easy Installation
Mount with two M4 screws. Connect to IQS900 conditioner. Hand-tighten connectors until locked. Set proper gap distance. Route 4m cable to monitoring system.
Common Questions
What makes this model different from others?
This version has exact 4.0 meter cable length without protective hose, ideal for controlled environments.
How accurate is the gap measurement?
Provides micron-level accuracy when properly installed and calibrated with correct target material.
Can it handle high-speed machinery?
Yes, 20 kHz frequency response covers most industrial rotating equipment including turbines and compressors.
What maintenance is required?
Virtually maintenance-free. Periodic visual inspection and connector check recommended.
Is special training needed for installation?
Basic mechanical skills sufficient. Follow installation manual for gap setting and electrical connections.
Our Promise
All products include 12-month quality guarantee. Full technical support provided. Quick dispatch from inventory.
