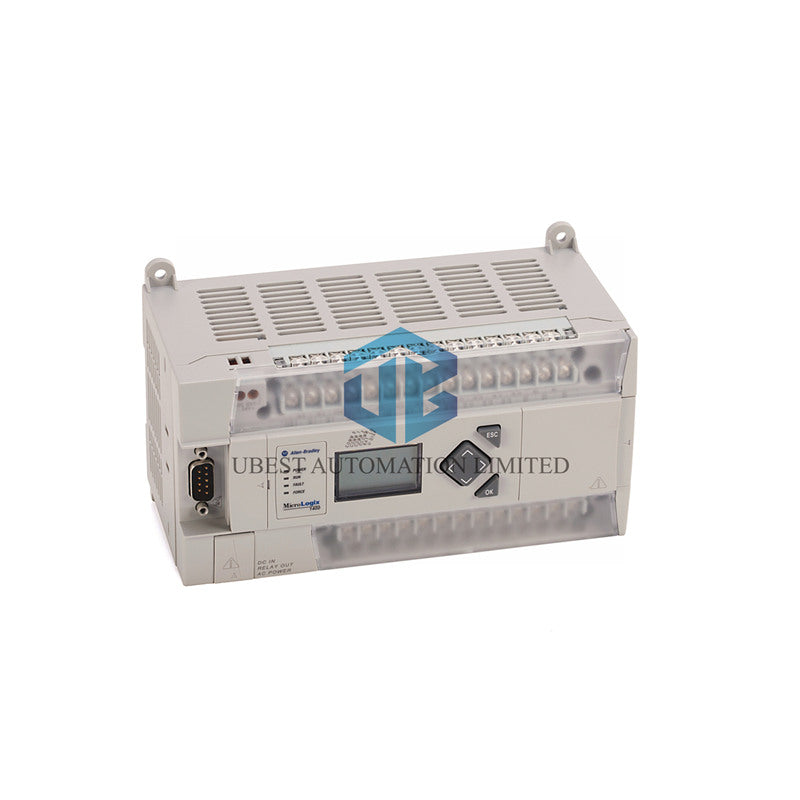

Allen-Bradley 1766-L32AWA MicroLogix 1400 Controller

Powerful compact controller with triple communication ports and expandable I/O. Ideal for complex automation systems requiring connectivity and reliability.

Key Advantages

• 20 digital inputs (120V AC)
• 12 relay outputs
• 3 communication ports
• Ethernet with web server
• Built-in real-time clock
• LCD display
• Expandable with 7 modules

Technical Specifications

Brand: Allen-Bradley
Model: 1766-L32AWA
Series: MicroLogix 1400
Input Power: 120-240V AC
Power Consumption: 100 VA
Digital Inputs: 20 points, 120V AC
Relay Outputs: 12 points
Memory: 20 KB user program
Communication Ports: 3 total
Ethernet Protocols: Ethernet/IP, MODBUS TCP/IP
Serial Protocols: DF1, MODBUS RTU, ASCII
Real-Time Clock: Built-in
Display: Integrated LCD
Expansion: Up to 7 modules
Dimensions: 90 x 180 x 87 mm
Weight: 2 pounds

Installation Options

Panel or DIN rail mounting. Horizontal orientation recommended. Use in industrial enclosure. Remove debris strip after installation.

Shipping & Protection

12-month full warranty. Fast delivery via FedEx, UPS, DHL. Secure packaging.

Download Documentation

Access complete technical resources:

• Installation guide
• Programming manual
• Communication setup
• Wiring diagrams
• Application examples

Download Complete Technical Manual

Technical Support

How many expansion modules can be connected?

Supports up to 7 expansion I/O modules for system flexibility.

What Ethernet protocols are supported?

EtherNet/IP, MODBUS TCP/IP, and DNP3 for industrial networking.

Does the controller have email capability?

Yes, the embedded web server includes email functionality for alerts.

What is the user memory capacity?

20 KB of memory available for user programs and data storage.

Can I use MODBUS communication?

Yes, supports both MODBUS RTU for serial and MODBUS TCP for Ethernet.
