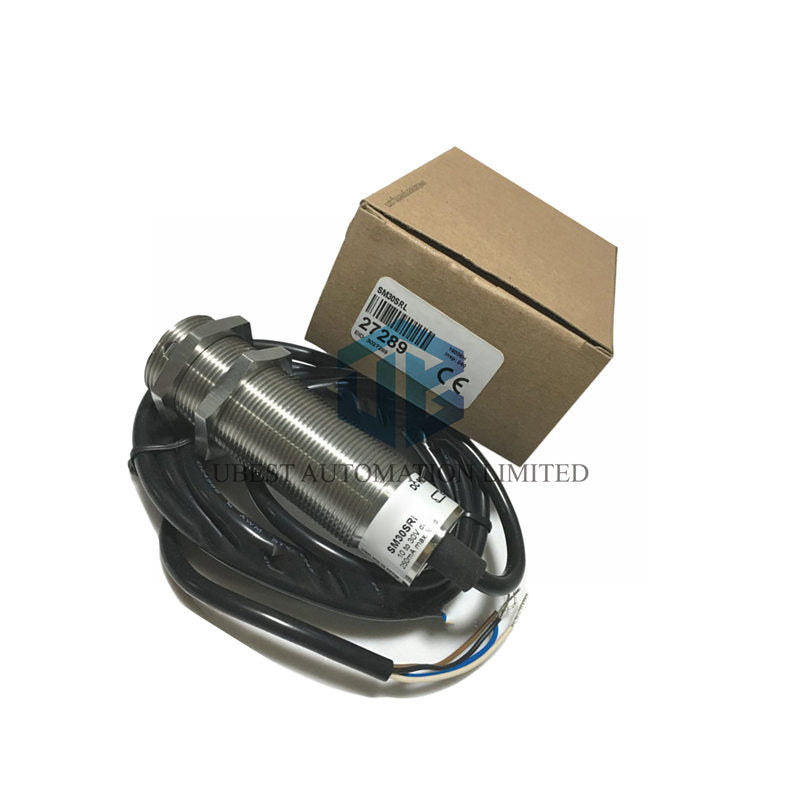

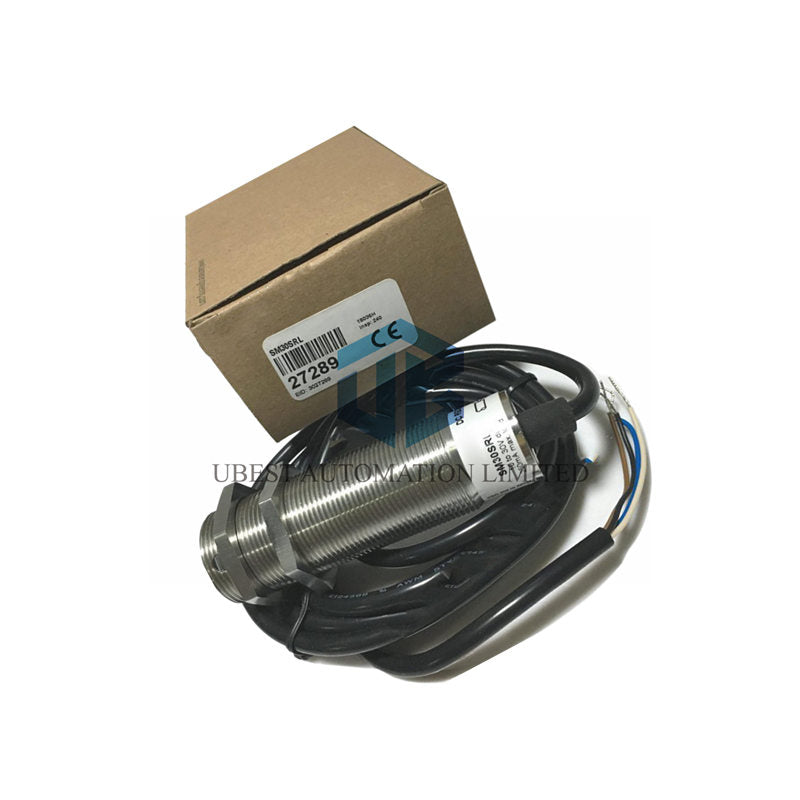

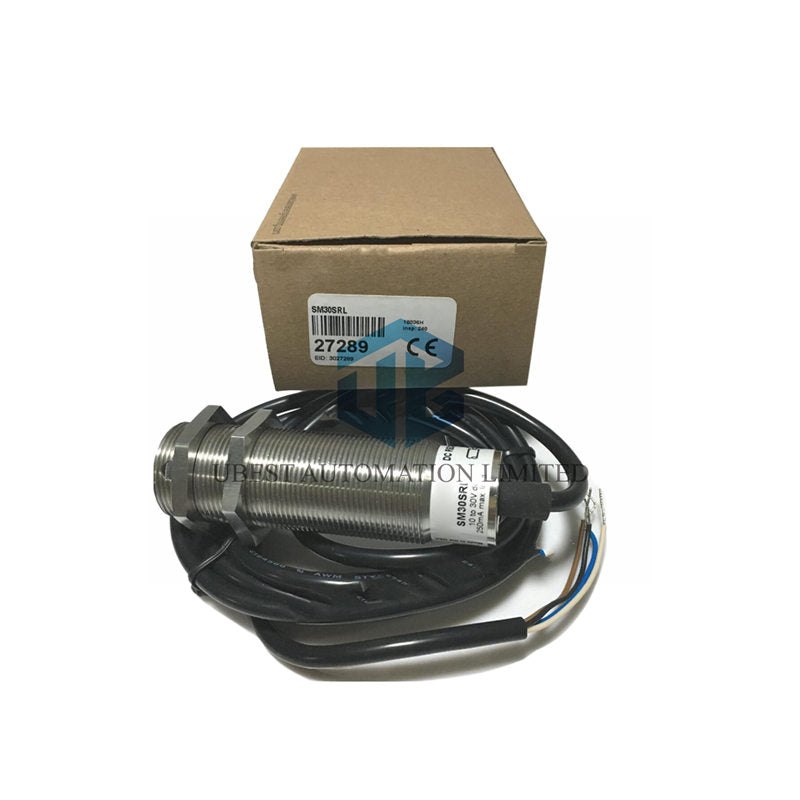

Banner SM30SRL Stainless Steel Photoelectric Sensor | 150m Long-Range Detection

• Reach new distances with reliable 150-meter sensing
• Built tough with durable stainless steel housing
• Easy connection to any system with dual NPN and PNP outputs
• Ready to use with a factory-attached 2-meter cable
• Trusted performance for harsh industrial environments

Product Overview

This Banner SM30SRL sensor is a long-range receiver. It detects infrared beams from its paired emitter up to 150 meters away. The strong stainless steel body resists corrosion and tough conditions. It works with 10-30V DC power and gives you both NPN and PNP output signals for maximum flexibility.

Key Specifications

• Brand & Model: Banner, SM30SRL Receiver
• Sensing Distance: 150,000 mm (150 m)
• Power Supply: 10 to 30 Volts DC
• Output Signal: 1 NPN and 1 PNP output
• Housing Material: Solid Stainless Steel
• Protection Rating: IP67, NEMA 4X
• Connection: 2-meter fixed cable
• Response Speed: 10 milliseconds
• Temperature Range: -40°C to +70°C
• Repeatability: 1000 µs

Simple Installation Steps

1. Securely mount the 30mm barrel sensor.
2. Align it accurately with the matching emitter unit.
3. Connect the 2-meter cable to your power and control system.
4. Apply power and verify the indicator LED for correct operation.

Frequently Asked Questions

What is the main advantage of this SM30SRL model?

Its stainless steel body offers superior durability in wet or corrosive areas compared to plastic sensors.

Can I use this with any programmable logic controller (PLC)?

Yes. The dual NPN and PNP outputs ensure compatibility with almost all common PLC input types.

How do I ensure a stable long-range beam?

Use a rigid mount and keep the lens clean. For very long ranges, ensure the emitter and receiver are perfectly aligned.

Is the attached cable long enough for my setup?

The included cable is 2 meters. For longer runs, you can splice and extend it using proper industrial cable and connectors.

What happens if the sensor gets dirty?

The IP67 rating protects against dust and water immersion. For best performance, regularly clean the lens with a soft cloth.

Package & Support

• What's in the Box: 1 x SM30SRL Sensor
• Your Guarantee: Full 12-month warranty for peace of mind.
• Fast Delivery: Shipped worldwide via FedEx, UPS, and DHL.
