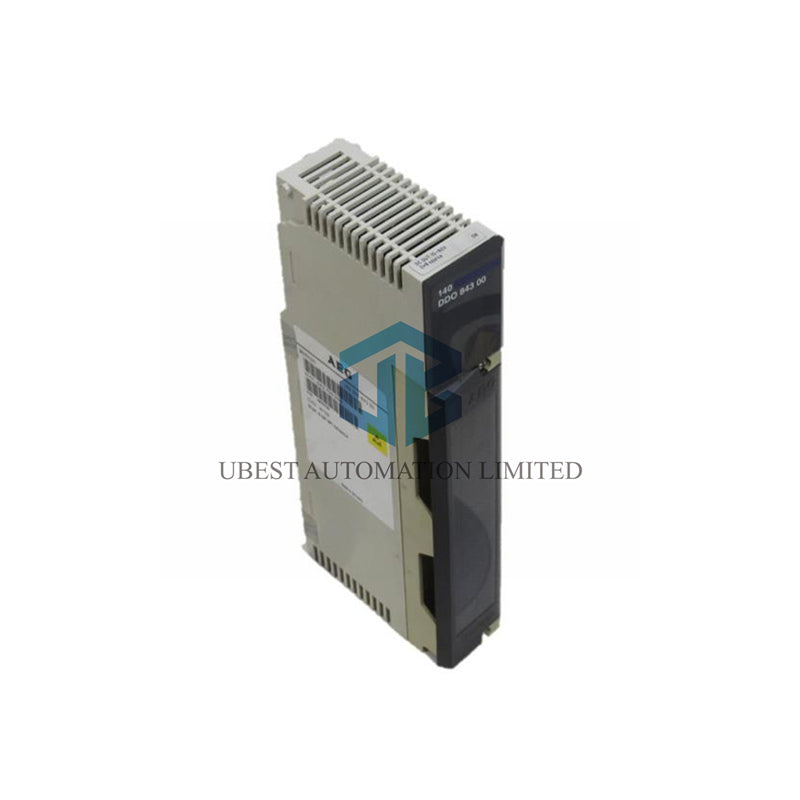

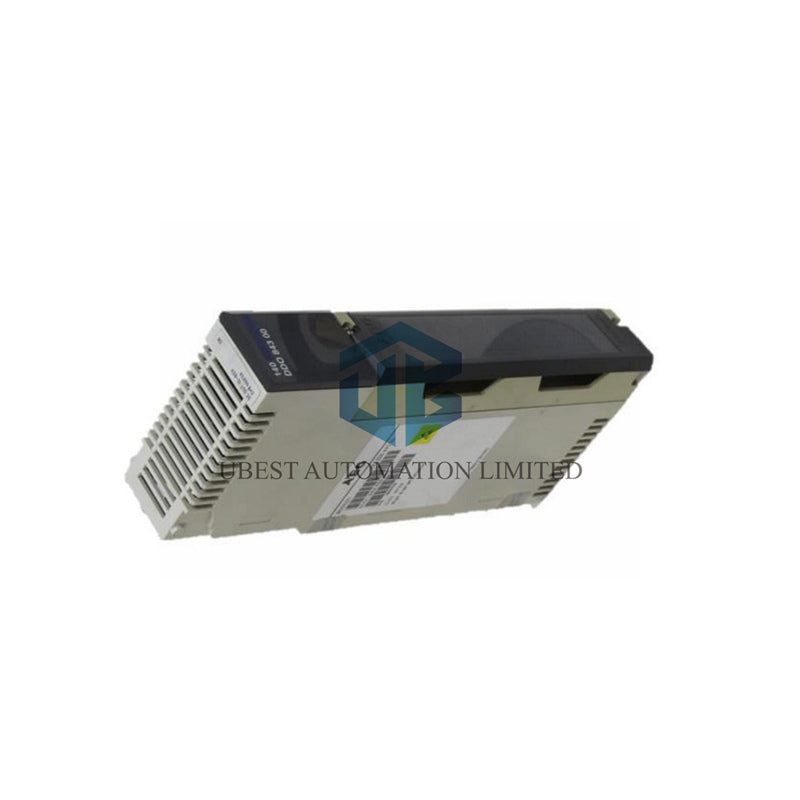

Schneider Electric 140DDO84300 DC Output Module
- Fast Same-Day Shipping
- 100% Genuine Product Guarantee
- Free Technical Support
- Competitive Market Pricing
High-Power DC Output Solution
The 140DDO84300 delivers robust DC output control for demanding applications. This 16-channel module handles high-current loads with precision and reliability.
Key Benefits
Wide voltage range - 10-60V DC output capability
High current capacity - 12A total, 6A per group
Fast response time - 1ms switching speed
Built-in protection - 8A fuses per group
Clear status indication - 16 green output LEDs
Technical Details
Brand: Schneider Electric
Model: 140DDO84300
Output Type: 16-Channel DC Sourcing
Voltage Range: 10-60V DC
Current Capacity: 2A per point, 12A total
Switching Speed: 1ms ON/OFF
Fuse Protection: 8A per group (2 groups)
Isolation Rating: 2500V DC to bus
Power Consumption: 160mA from backplane
Heat Dissipation: 1W + (1V × load current)
Operating Temperature: 0°C to 60°C
Product Weight: 0.45 kg
Installation & Compatibility
System Platform: Modicon Quantum
Addressing Needs: 1 output word
Channel Groups: 2 groups of 8 outputs
Logic Type: Positive (sourcing)
Package Contents
1 x 140DDO84300 Output Module
Installation documentation
Shipping & Support
Quick delivery via FedEx, UPS, DHL
12-month comprehensive warranty
Easy return policy available
Common Questions
What type of loads can this module control?
It can drive relays, solenoids, contactors, and other DC devices up to 60V and 2A per point.
How are the outputs protected?
Each group of 8 outputs has 8A fuse protection, and the module features 2500V isolation.
What is the maximum total current?
The module can supply 12A total, with 6A maximum per group of 8 outputs.
Can it handle inductive loads?
Yes, it's designed for industrial loads with formulas provided for inductive load calculations.
How quickly can it switch outputs?
It provides fast 1ms response time for both turning on and turning off outputs.
