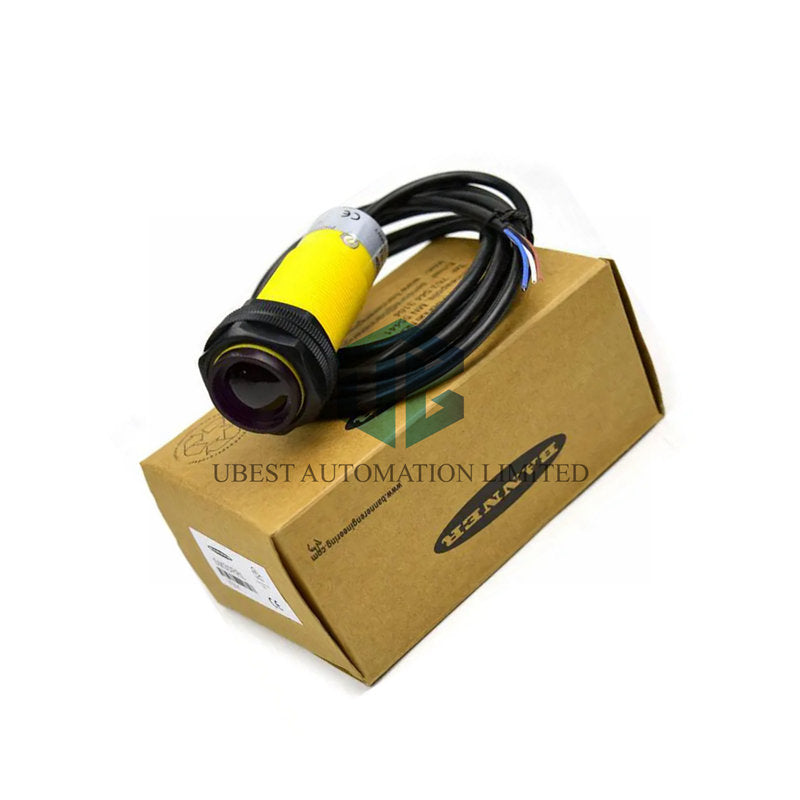

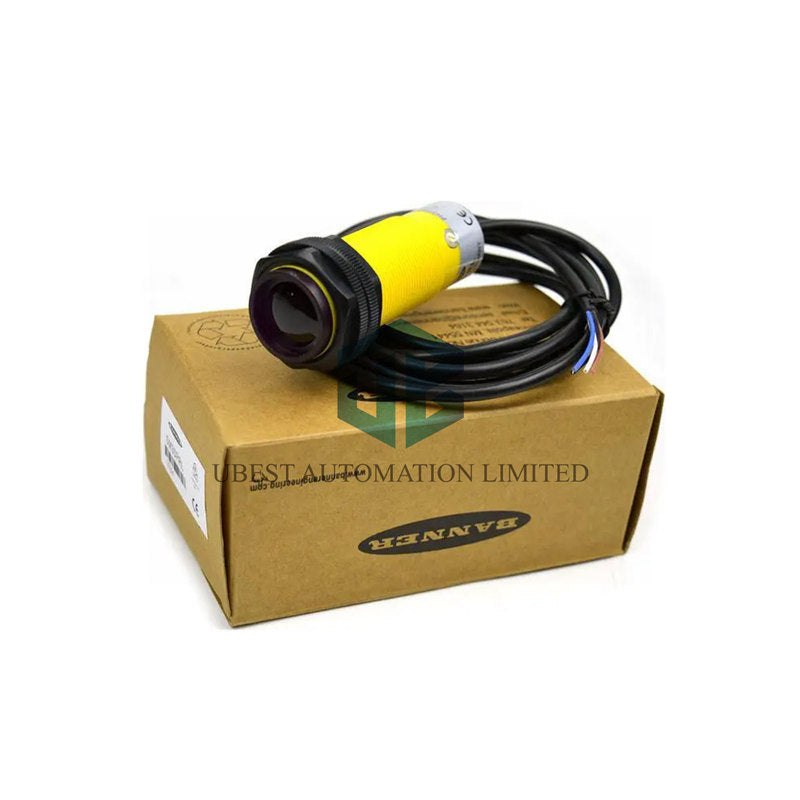

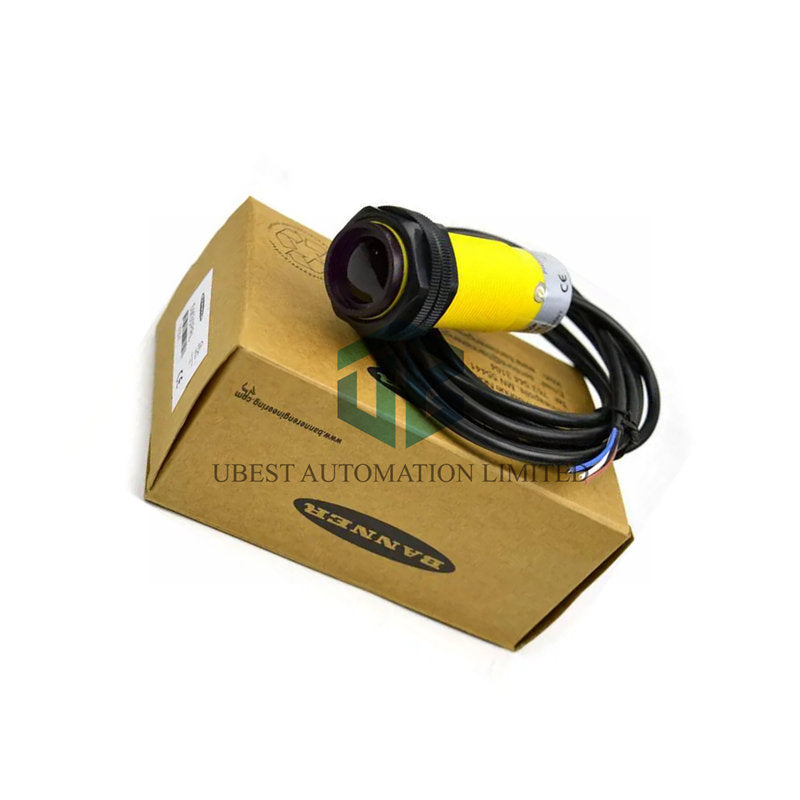

Banner SM30PRL Photoelectric Sensor: Long-Range Detection Up to 150m

This SM30PRL receiver sensor offers reliable long-distance object detection. It works with Frequency A emitters for precise through-beam sensing. Built with a tough PBT polyester housing, it handles harsh conditions from -40°C to 70°C. Perfect for industrial automation where durability and long range matter.

Key Features & Benefits

• Super Long Range: Detects objects up to 150 meters away.
• Dual Outputs: Choose NPN or PNP output to match your control system.
• Rugged Build:
  • IP67 & NEMA 6P rated for dust and water resistance.
  • Works in temperatures from -40°C to 70°C.
• Easy Setup: Includes a 2-meter cable for simple connection.
• Fast Response: 1 ms repeatability for quick detection.

Technical Data

• Brand: Banner Engineering
• Model: SM30PRL W/30 (P/N 27291)
• Series: SM30 Series, Receiver - Frequency A
• Sensing Range: 150,000 mm (150 m)
• Supply Voltage: 10-30 V DC
• Output Type: Bi-Modal (1 NPN and 1 PNP)
• Response Time: 1 ms
• Connection: 2 m, 4-pin cable
• Housing: 30 mm Barrel, Thermoplastic
• Operating Temperature: -40°C to +70°C
• IP Rating: IP67
• NEMA Rating: NEMA 6P

Installation Guide

Mount the sensor securely. Connect the 2-meter cable to your power and control system. Align it correctly with the paired emitter for best performance. The LED indicators help with setup.

Compatibility Notes

This receiver works with all Banner Frequency A emitters. The bi-modal NPN/PNP output works with most PLCs and control systems.

Package Includes

• 1x SM30PRL Photoelectric Sensor (Receiver)
• 1x 2-meter connection cable

Warranty & Shipping

We offer a 12-month warranty. We ship via FedEx, UPS, and DHL for fast delivery.
