GE Digital Signal Processor Control Board for EX2100 Systems
Product Description

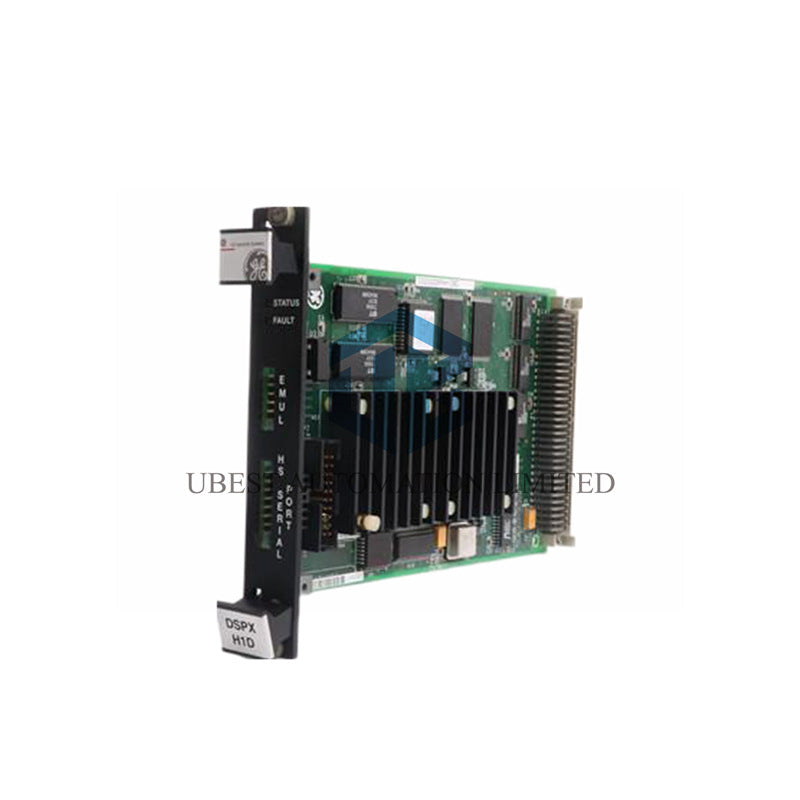

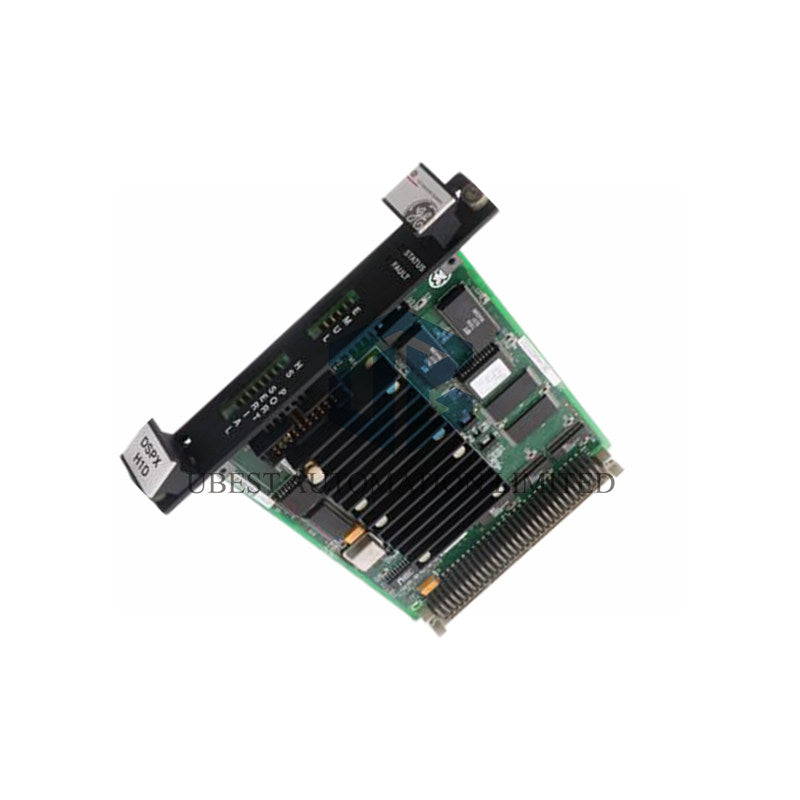

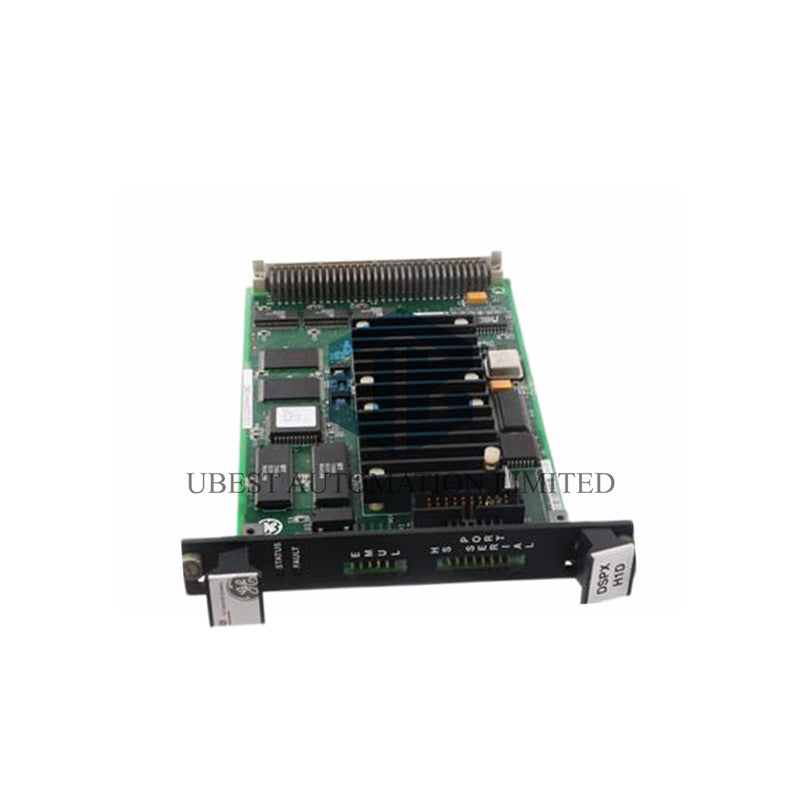

The IS200DSPXH1DBC is a high-performance Digital Signal Processor Control Board manufactured by General Electric. Designed for the EX2100 series, this board serves as the central control unit for Innovation Series drives and EX2100 Excitation Control systems. It provides precise regulation for bridge and motor functions and manages generator field control with advanced processing capabilities.
Technical Specifications
Brand: General Electric (GE)
Model: IS200DSPXH1DBC
Series: EX2100 Excitation Control
Country of Origin: USA
Operating Temperature: -30°C to 65°C
PCB Coating: Conformal Coating
Manual: GEI-100488
DSP Clock Speed: 60 MHz
Memory Types: FLASH, RAM, NVRAM, Add-Only Memory
Interrupts: 4 External Interrupts
Key Features
Advanced Processing: Features a 60 MHz DSP for complex control algorithms
Comprehensive Memory: Multiple memory types for boot images, data storage, and system parameters
Precision Control: Manages bridge regulation, motor gating, and generator field functions
Robust Design: Conformal coating protects against harsh environments
Reliable Operation: Wide operating temperature range for industrial applications
Installation & Compatibility
This DSPX board is compatible with EX2100 Excitation Control systems and Innovation Series drives. Installation requires professional technical knowledge. Refer to manual GEI-100488 for proper installation procedures. The board interfaces through Tool port, Unit Data Highway, and various communication interfaces.
Shipping & Packaging
We ship worldwide via FedEx, UPS, and DHL. Each board is carefully packaged in anti-static materials to ensure safe delivery. Package includes the IS200DSPXH1DBC control board only. Manuals available for download.
Warranty Information
12-Month Warranty: All our products come with a 12-month quality guarantee. We ensure full functionality upon delivery.
Availability: In Stock - Ready to Ship
Support: Technical documentation available upon request
