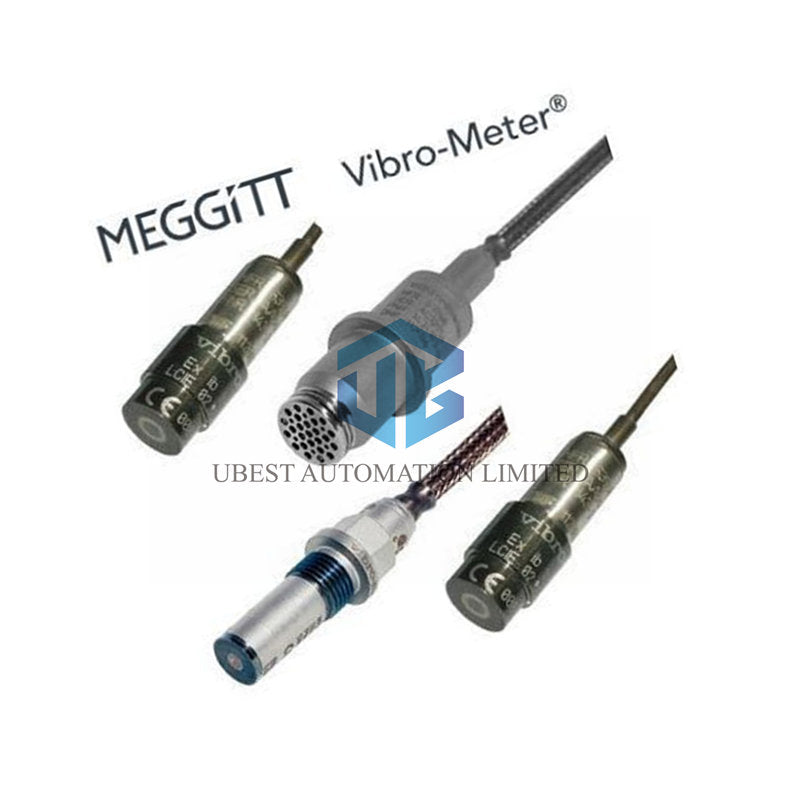

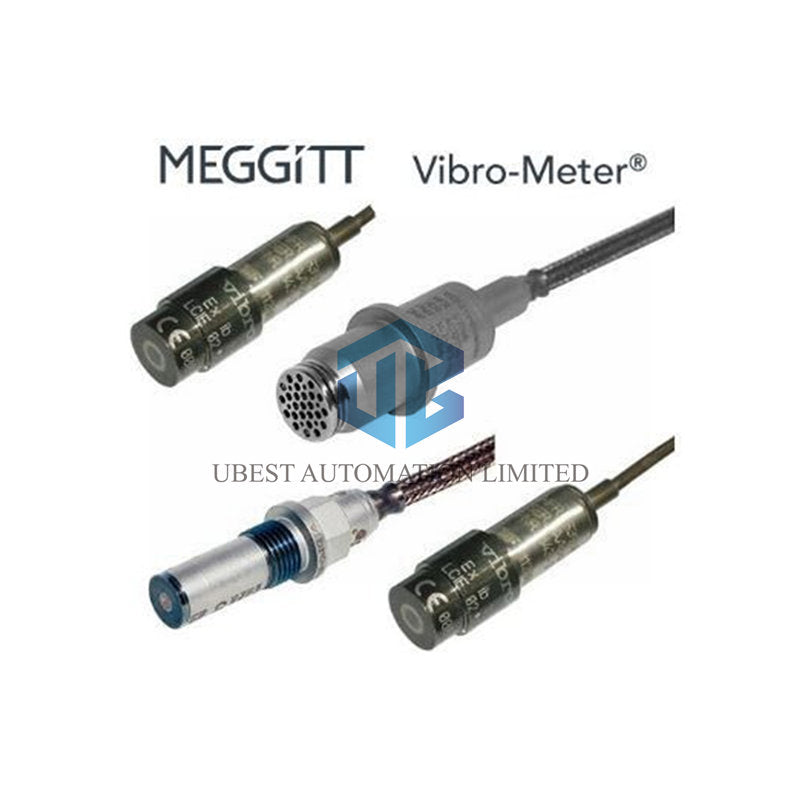

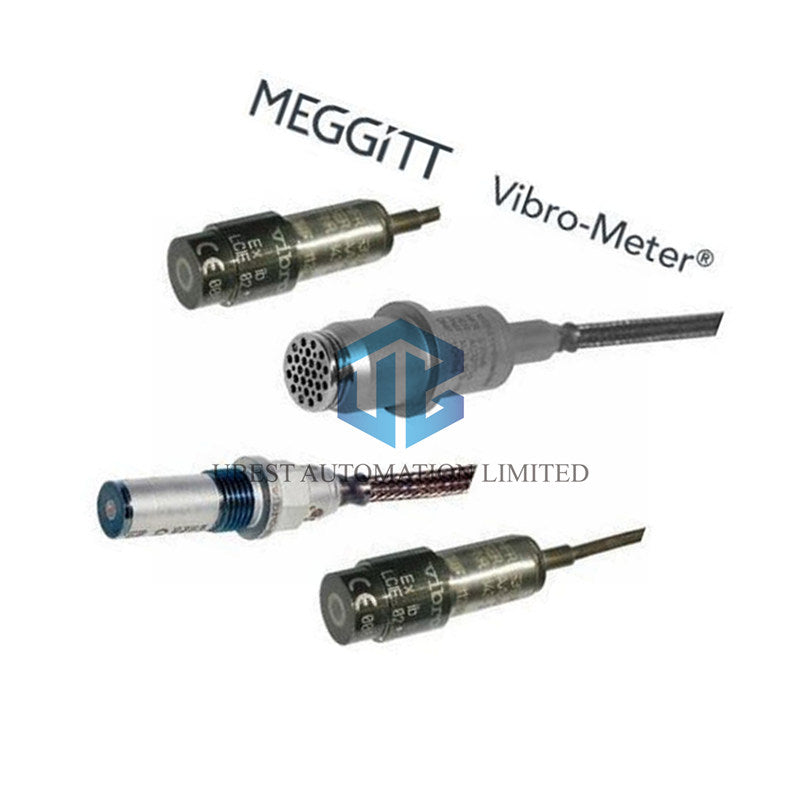

Vibro Meter CP 216 Ultra-High Temperature Pressure Transducer

The CP 216 with high-temperature connector excels in extreme thermal environments up to 650°C. This specialized version features a 1-meter mineral insulated cable for maximum heat resistance. Meggitt's advanced piezoelectric technology delivers reliable dynamic pressure measurement. The transducer performs flawlessly in gas turbine and aerospace applications.

Premium Technical Specifications

• Manufacturer Brand: Vibro-Meter® by Meggitt Sensing Systems
• Core Model: CP 216 High-Temp Connector Version
• Pressure Sensitivity: 200 pC/bar with ±1.5% tolerance
• Broadband Frequency: 2 Hz to 15,000 Hz ±2.5 dB
• Wide Dynamic Range: 0.0005 to 250 bar operational span
• Peak Overload Capacity: 350 bar maximum pressure limit
• Precision Linearity: Better than ±0.9% full scale
• Mechanical Resonance: Exceeds 82,000 Hz typical
• Acceleration Rejection: Less than 0.4 pC/g vibration effect
• Insulation Performance: > 1.5 GΩ at standard conditions

Extreme Thermal Capabilities

• High-temperature connector rated for -94°F to 1202°F operation
• Transducer body withstands -70°C to 520°C extreme conditions
• Continuous service from -65°F to 878°F without degradation
• NIMONIC alloy 90 construction maintains integrity at high temperatures
• INCONEL alloy 600 cable ensures reliable performance in heat
• Hermetically welded design prevents thermal cycling damage

Electrical Performance & Output

• Self-generating charge output requires zero external power
• 320 pF nominal capacitance between signal poles
• 13 pF typical capacitance from pole to transducer case
• 300 pF per meter additional cable capacitance to ground
• Two-pole system provides complete electrical isolation
• Compatible with Vibro-Meter IPC 704 signal conditioners

Rugged Mechanical Design

• Compact and lightweight design at only 12 grams
• 1-meter high-temperature mineral insulated cable included
• Total system weight of approximately 37 grams
• Explosion-proof certification for hazardous locations
• 2000 g shock resistance along measurement axis
• Radiation hardened for nuclear environments

Complete Package Contents

• One CP 216 piezoelectric pressure transducer unit
• Integrated 1-meter high-temperature cable assembly
• Vibro-Meter high-temperature connector pre-installed
• Factory calibration documentation with test data
• Technical specifications and installation guide
• Optional signal conditioning equipment available

Shipping & Delivery Services

• Immediate dispatch from available stock
• FedEx Express shipping for urgent requirements
• UPS Worldwide for reliable international delivery
• DHL Express service for time-sensitive projects
• Real-time tracking provided for all shipments
• Customs documentation prepared for international orders

Comprehensive Warranty Protection

• Full 12-month warranty covering all components
• Complete protection against material defects
• Workmanship guarantee for manufacturing quality
• Warranty activation from original purchase date
• Expert technical support throughout warranty period

Technical Application Questions

• What advantages does the high-temperature connector provide?
• It enables direct installation in environments up to 650°C without adapter cables
• How does the mineral insulated cable enhance performance?
• The MI cable maintains signal integrity while withstanding extreme temperatures
• Can this transducer operate in nuclear radiation environments?
• Yes, it withstands gamma flux of 10¹⁰ erg/g and neutron flux of 10¹⁷ n/cm²
• What is the expected service life in continuous operation?
• The CP 216 typically operates for years in continuous high-temperature service
• Does installation require special high-temperature techniques?
• Standard industrial practices apply but avoid thermal shock during installation
