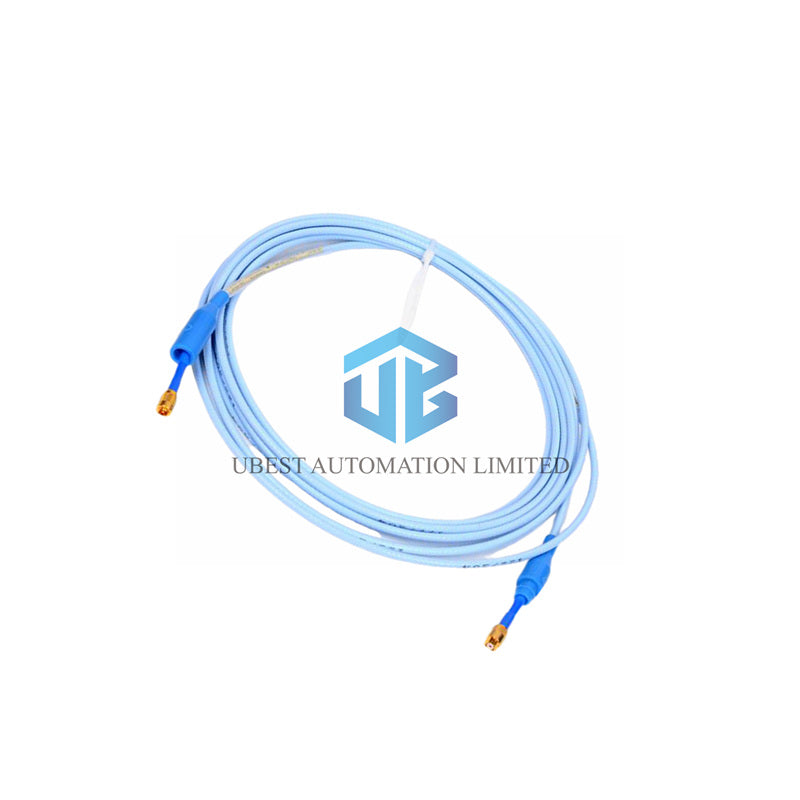

Bently Nevada 330191 XL 8mm Safety Certified Vibration Probe

The Bently Nevada 330191-00-08-10-05 offers premium vibration monitoring with full safety approvals. This 8mm ETR probe meets global hazardous area standards. Ideal for critical applications requiring certified equipment.

Complete Part Number Analysis

Base Model: 330191 - 3300 XL 8mm ETR Probe

Unthreaded Option: 00 - Minimum Length

Case Length: 08 - 0.8 Inch Compact

Cable Length: 10 - 1.0 Meter Standard

Certification: 05 - CSA, ATEX, IECEx

Technical Performance Data

Manufacturer: Bently Nevada

Product Series: 3300 XL 8mm ETR

DC Resistance: 7.59 ± 0.50 Ω

Voltage Range: -17.5 Vdc to -26 Vdc

Output Impedance: 50 Ω

Current Draw: 12 mA Maximum

Temperature Span: -55°C to +232°C

Cable Construction: 75Ω Triaxial FEP

Pull Strength: 330 N (75 lbf)

Thread Specification: 3/8-24 UNF

Engagement Limit: 0.563 Inch Maximum

Tip Composition: PPS Molded Plastic

Body Material: 304 Stainless Steel

Connector Type: Gold-Plated Brass

Torque Setting: 0.565 N•m (5 in•lbf)

Advanced Protection Features

TipLoc Technology ensures superior tip-to-body bonding

CableLoc System provides 330N cable retention strength

Optional FluidLoc blocks fluid migration through cables

Enhanced Durability with thicker probe tip construction

Installation Requirements

Follow maximum 0.563 inch thread engagement. Use with Bently Nevada extension cables. Connect to approved Proximitor systems. Observe drawing 140979 for safety circuits.

Global Compliance Status

Certified for CSA, ATEX, and IECEx standards. Suitable for hazardous area installations. Complete documentation provided.

Expert Technical Guidance

What safety certifications are included?

This model carries CSA, ATEX, and IECEx approvals for global use.

How does cable length affect system design?

One-meter systems typically don't require additional extension cables.

What maintenance advantages does it offer?

Thicker tip encapsulation reduces damage risk in high-vibration areas.

Can it handle sudden temperature changes?

Yes, rated for rapid thermal cycling from -55°C to +232°C.

What installation mistakes should I avoid?

Never exceed 0.563 inch thread engagement to prevent case damage.

Shipping Information

Express delivery available via FedEx, UPS, and DHL. All items ship in factory-sealed packaging.

Warranty Protection

12-month quality guarantee covers all manufacturing defects and performance issues.

Package Contents

• Bently Nevada 330191-00-08-10-05 Vibration Probe
• Safety Certification Documents
• Installation Guidelines
• Factory Quality Assurance
