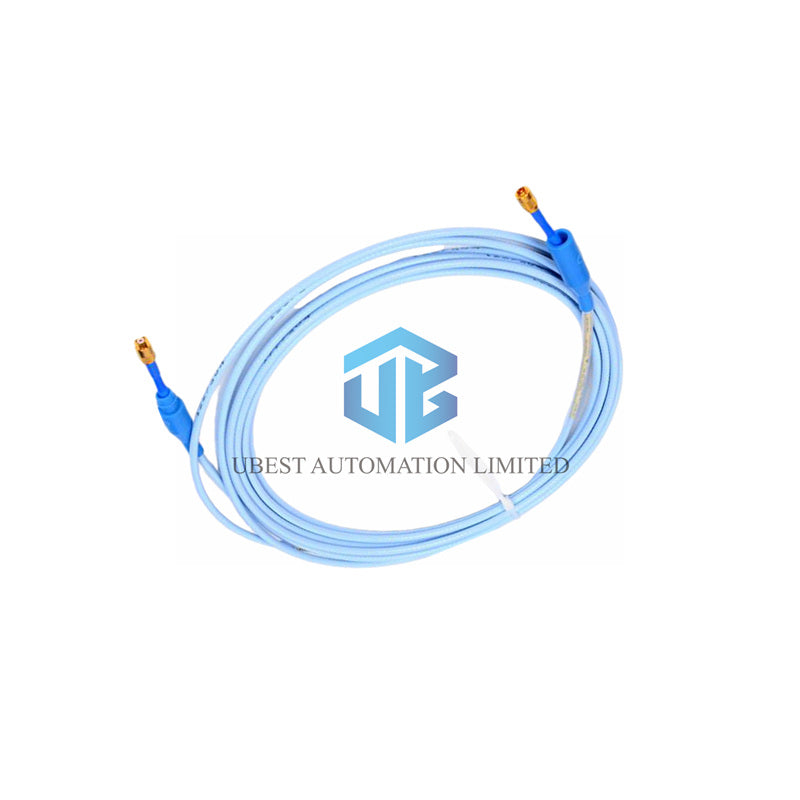

330192-00-08-15-CN Bently Nevada - 330192 Extra Long Probe
UBEST – Pouzdan globalni dobavljač delova za automatizaciju
Nudimo širok asortiman industrijskih rezervnih delova za automatizaciju koji su dostupni na lageru. Svi proizvodi dolaze sa 12-mesečnom garancijom i 30-dnevnim povraćajem novca zbog problema sa kvalitetom.
Bently Nevada 3300 XL 8mm Extra Long Vibration Probe
- Extra Long 1.5 Meter Cable
- Compact 0.8 Inch Case
- Country Specific Approvals
- Same Day Dispatch
Perfect For Hard-to-Reach Applications
The Bently Nevada 330192-00-08-15-CN delivers superior vibration monitoring with extra cable length. This 8mm ETR probe reaches where others cannot. Ideal for complex machinery layouts requiring extended connectivity.
Detailed Specifications
Product Code: 330192-00-08-15-CN
Manufacturer: Bently Nevada
Family: 3300 XL 8mm ETR Series
Sensing Size: 8mm Diameter
Body Length: 0.8 inch
Wire Reach: 1.5 meters (4.9 feet)
Circuit Value: 7.73 ± 0.50 ohms
Connection Type: 3/8-24 UNF Thread
Screw-in Limit: 0.563 inch max
Freeze Point: -52°C operational
Heat Maximum: +177°C standard
Extended Heat: +218°C probe tip
Detection End: PPS Material
Housing: 303/304 Stainless Steel
Weather Proof: Viton Sealing
Damp Conditions: IEC 68-2-3 tested
Setup Guide
Keep unthreaded section at least 0.8 inch shorter than case. Maximum screw depth: 0.563 inch. Avoid cold installation below -34°C to maintain seal integrity.
Compliance Information
Manufactured with country-specific agency approvals. Ready for international deployment with complete certification support.
Common Questions
How long is the cable on this model?
This version features an extra long 1.5 meter (4.9 feet) armored cable.
What is different about the electrical specs?
Longer cable gives 7.73 ohms resistance with same ± 0.50 ohms tolerance.
Can it handle higher temperatures?
Probe tip withstands up to 218°C in extended temperature applications.
Is installation different with longer cable?
Installation requirements remain identical despite extended cable length.
What countries accept these certifications?
Country-specific approvals cover multiple international markets and regions.
