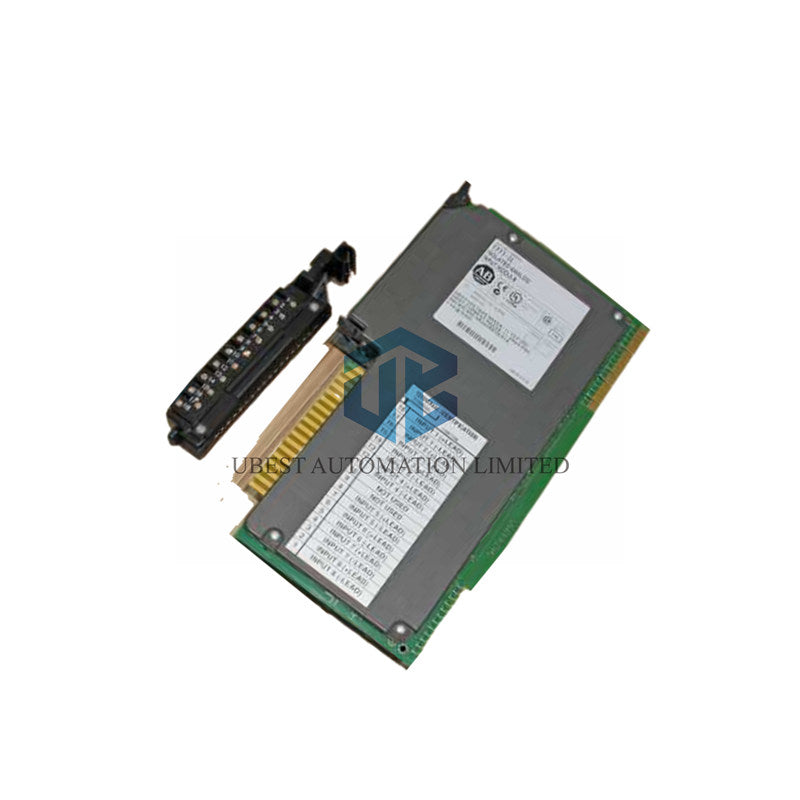

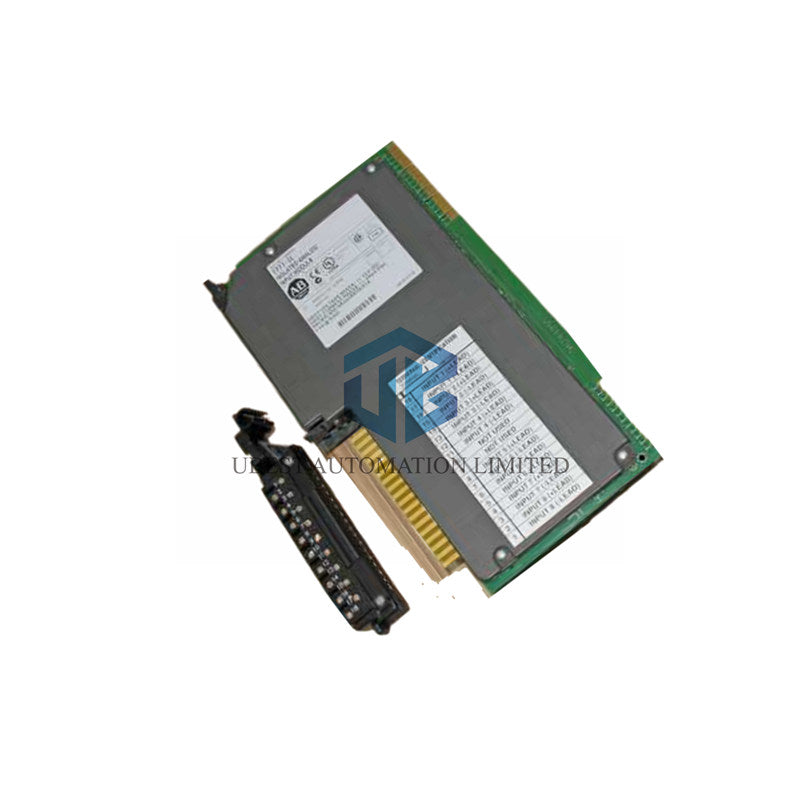

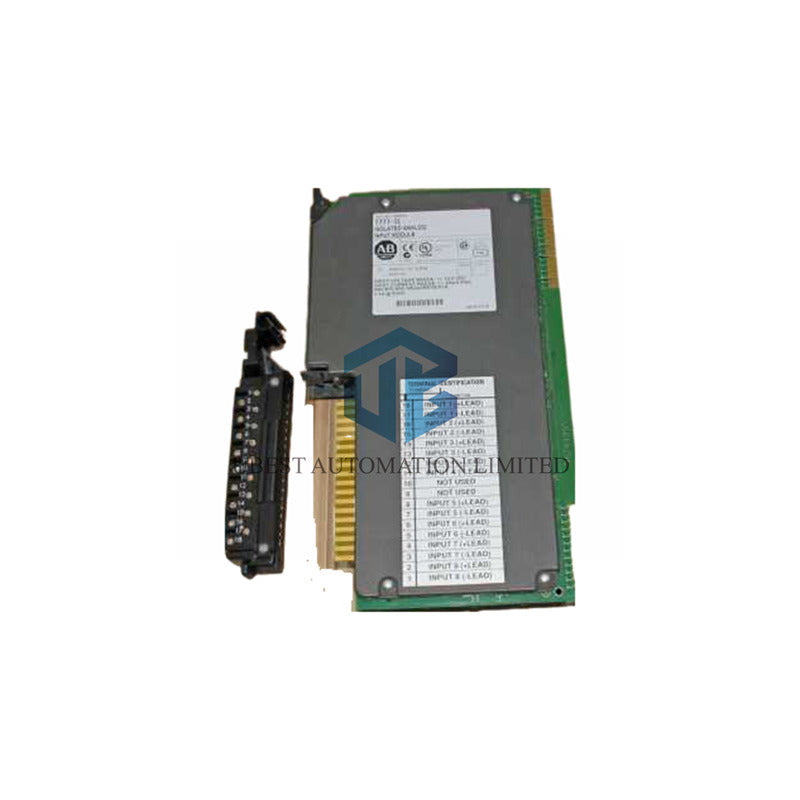

Allen-Bradley 1771-ILK Isolated Analog Input Module - High-Precision Signal Acquisition
Experience superior signal isolation with the 1771-ILK module. This advanced analog input module offers 1000V isolation per channel for maximum protection. No external power required - operates directly from backplane.
Premium Features
- 8 fully isolated differential inputs
- High 15-bit plus sign resolution
- 1000V channel-to-channel isolation
- No external power supply needed
- Multiple voltage and current ranges
Technical Specifications
Brand: Allen-Bradley/Rockwell Automation
Model: 1771-ILK Series
Module Type: Isolated Analog Input
Input Channels: 8 Differential
Isolation Rating: 1000V per Channel
Resolution: 15-bit + Sign
Update Rate: 500ms for 8 Channels
Voltage Ranges: 0-5V, 1-5V, ±5V, 0-10V, ±10V DC
Current Ranges: 4-20mA, 0-20mA, ±20mA
Data Format: Natural Binary or BCD ±9999
Backplane Current: 1.3A
Power Requirement: Backplane Only
Wiring Arm: 1771-WF
Coating: Conformal Coated
Mounting: Rack Mountable
Easy Setup
Simple rack mounting
1771-WF wiring arm included
No external power wiring
Direct backplane operation
Ideal For
High-noise environments
Critical measurement applications
Process control systems
Precision monitoring tasks
What You Receive
1771-ILK Analog Input Module
1771-WF Wiring Arm
Installation guide
Our Promise
12 Month Performance Warranty
Quick delivery: FedEx, UPS, DHL options
Technical Support
What does channel isolation provide?
1000V isolation protects each input from electrical noise and prevents ground loops in sensitive measurement applications.
How accurate is the signal conversion?
The 1771-ILK provides 15-bit plus sign resolution for highly precise analog-to-digital conversion.
What is the maximum update rate?
All 8 channels update every 500 milliseconds, providing consistent data refresh for process monitoring.
Can I mix voltage and current inputs?
The module supports both voltage and current signals but requires consistent input type configuration per application setup.
Is special wiring required?
Standard industrial wiring practices apply, using the included 1771-WF wiring arm for easy installation and maintenance.
