SICK S30A-6011BA S3000 Standard Safety Laser Scanner

Reliable and cost-effective safety for basic applications. The SICK S30A-6011BA from the S3000 Standard series provides essential area guarding. With an 8-meter range and easy M12 connection, it's perfect for protecting hazardous points and AGVs.

• Simple Setup: One field set for straightforward guarding of danger zones.
• Easy to Replace: Configuration stored in the system plug allows for quick device swap.
• Compact & Robust: IP65 aluminum housing for durable performance.
• Cost-Effective Safety: Delivers core protection functions at an economical price.

Core Technical Specifications

Brand & Model: SICK S30A-6011BA (S3000 Standard Series)
Protective Field Range: Up to 8 m
Scanning Angle: 190°
Resolution: 14 mm (Standard)
Response Time: ≤ 60 ms
Connection: System Plug, Male M12 5-pin
Supply Voltage: 24 V DC (16.8 - 28.8 V DC)
Outputs: 2 PNP OSSDs (short-circuit & cross-circuit protected)
Field Set Capacity: 1
Enclosure Rating: IP65
Housing Material: Aluminum Die-Cast
Weight: 3.3 kg
Alternate P/N: 1023546

Key Features & Functions

Plug & Play Replacement: Integrated memory in the system plug means no laptop is needed for device swaps.
Clear EFI Interface: Enables reliable communication with SICK safety controllers for expanded functions.
Selectable Resolution: Can be configured for hand, leg, or body detection requirements.
Simultaneous Monitoring: Can monitor up to 4 protective fields when used with a SICK safety controller.
Versatile Application: Ideal for stationary hazard points, access protection, and automated guided vehicles (AGVs).

Frequently Asked Questions (FAQ)

What is this scanner best used for?
It is designed for simple, stationary applications like guarding a machine entrance or a fixed hazardous point where one safety zone is sufficient.

How is it different from Advanced models?
The Standard model focuses on simplicity and value, typically storing only one field set, while Advanced models store multiple sets for more complex layouts.

Can I use it on a moving AGV?
Yes, its robust design is suitable for AGVs. For complex mobile applications requiring multiple zones, pairing it with a SICK safety controller is recommended.

What happens if the scanner needs to be replaced?
Replacement is very easy. Just unplug the old unit and plug in the new one—the configuration is stored in the cable plug, not the scanner itself.

Does it have a warning field?
Yes, it can define a warning field in addition to the protective field to provide an early alert before a safety stop is triggered.

Package & Support

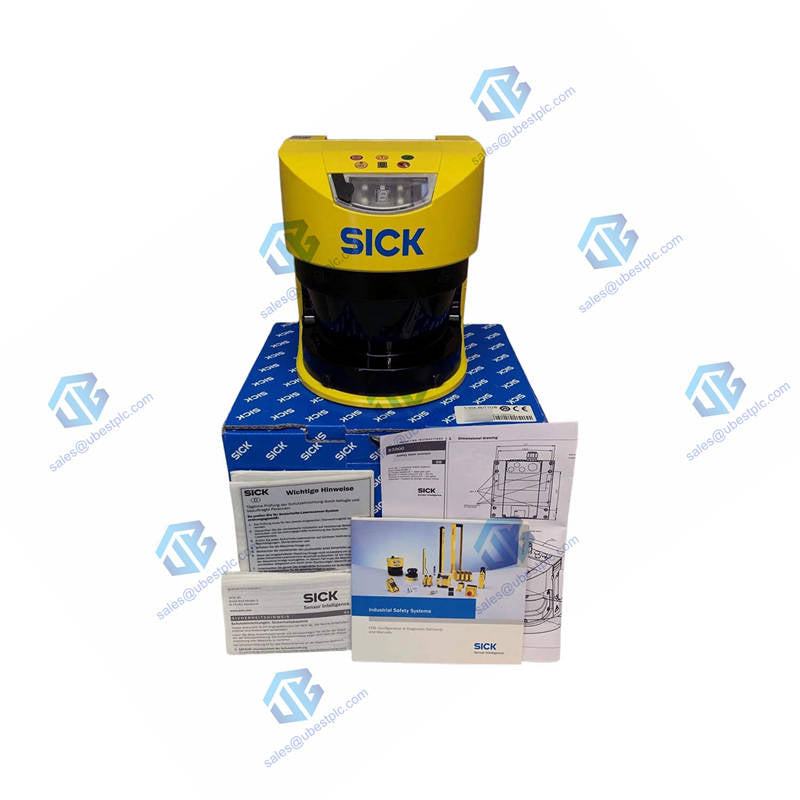

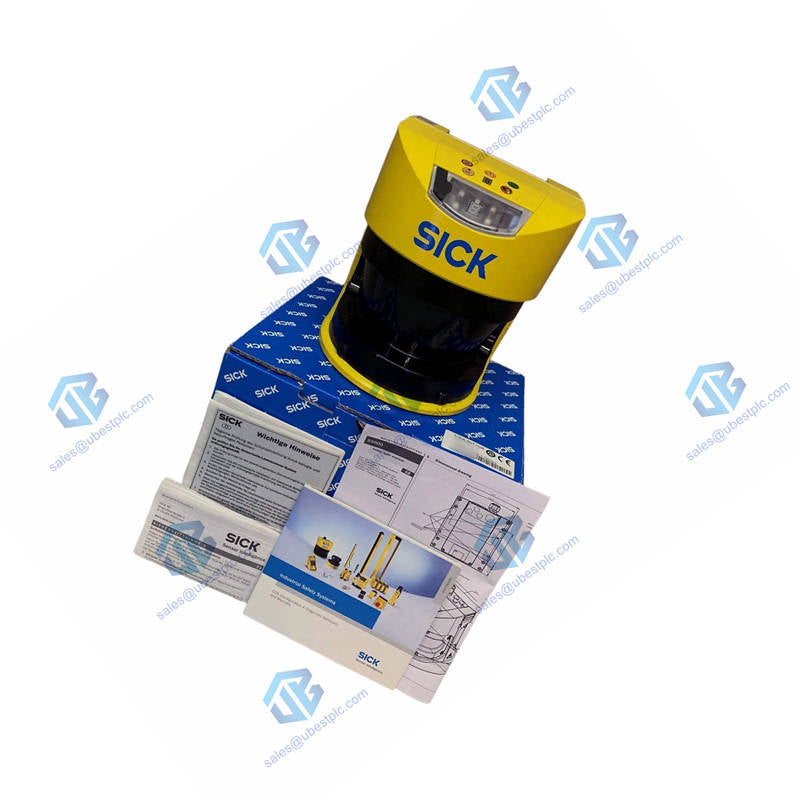

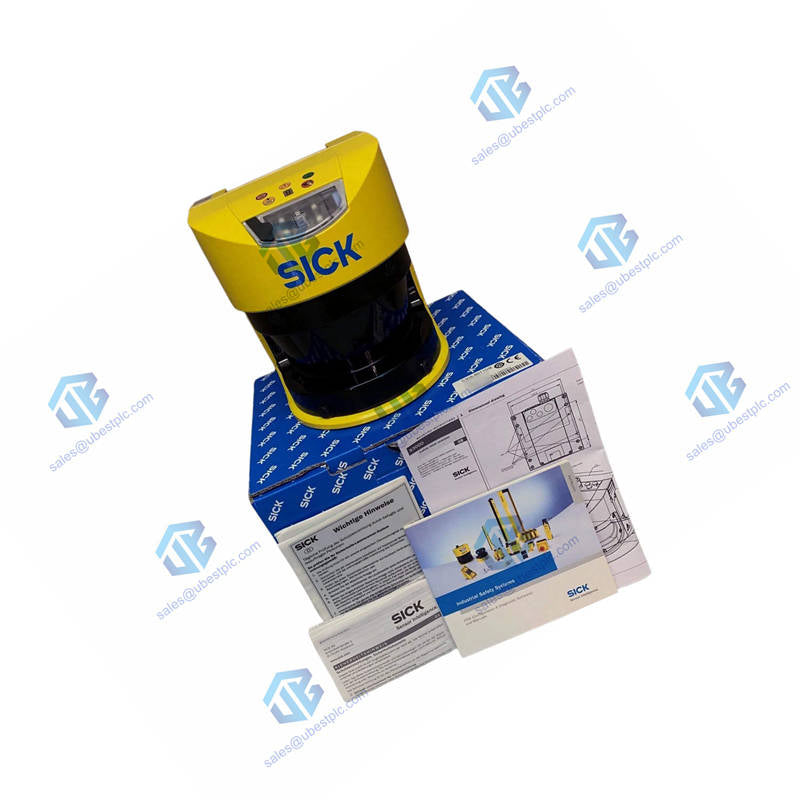

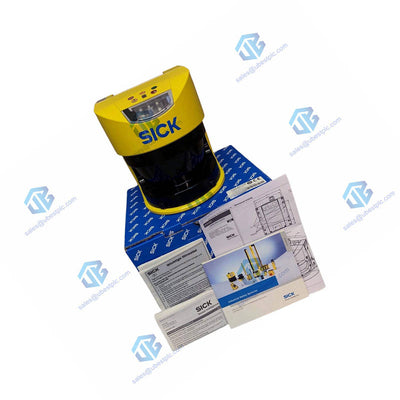

Package Includes: One SICK S30A-6011BA Safety Laser Scanner with system plug.
Warranty: Backed by a 12-month warranty.
Global Shipping: Reliable delivery via FedEx, UPS, and DHL.
