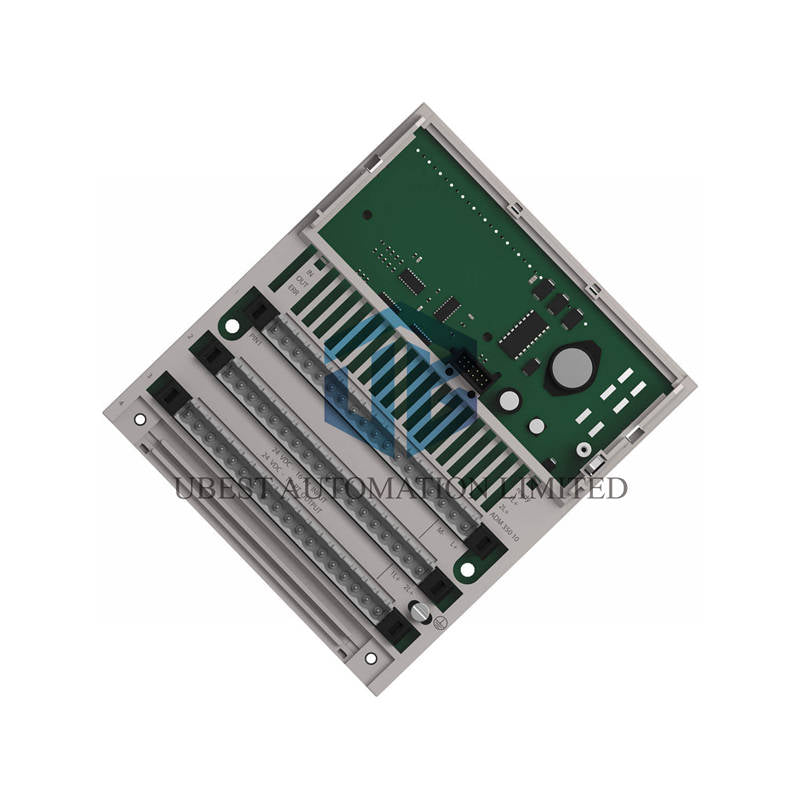

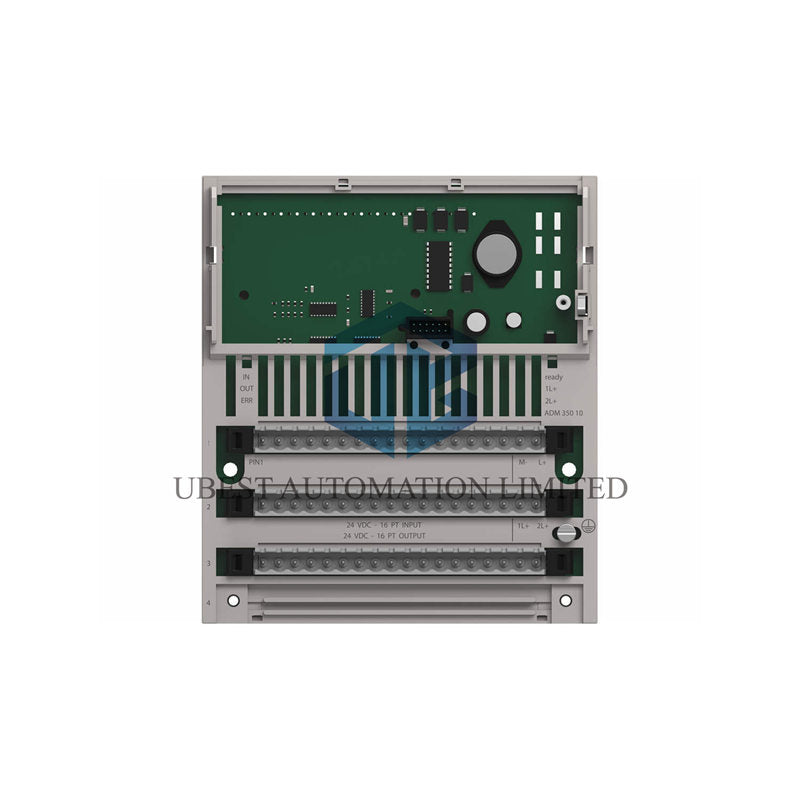

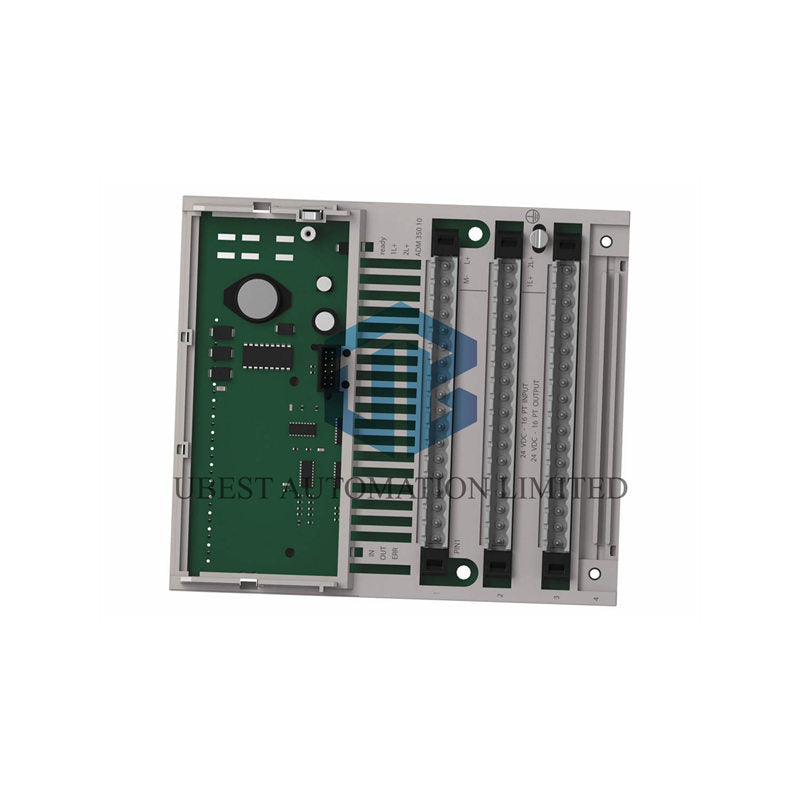

Schneider Electric 170ADM35010C: Versatile I/O Module
Compact 32-channel discrete I/O module for industrial control. Combines 16 inputs and 16 outputs in one unit. Perfect for space-saving installations in automation systems.
Key Features
- Dual Function: 16 inputs and 16 outputs in one module
- Wide Temperature Range: Works from -40°C to +70°C
- Solid State Reliability: No moving parts for long life
- Easy Installation: Standard Momentum base mounting
- Industrial Protection: Conformal coating for harsh environments
Technical Specifications
Brand: Schneider Electric
Model: 170ADM35010C
Series: Modicon Momentum
Product Type: Discrete I/O Module
Channels: 16 DI + 16 DO
Input Voltage: 24V DC
Output Voltage: ≤30V DC
Output Current: 0.5A per channel
Total Output Current: 8A maximum
Input Resistance: 4 kΩ
Output Type: Solid State Switch
Logic Type: Positive logic
Network Frequency: 47-63 Hz
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Operating Humidity: Up to 80% RH non-condensing
Storage Humidity: Up to 80% RH non-condensing
Protection: Conformal Coating (Humiseal 1A33)
Response Time: < 1ms
Isolation: 500V channel to system
Power Consumption: 3.5W typical
Installation Guide
Mount in standard Momentum base. Connect 24V DC power. Wire inputs and outputs according to positive logic configuration.
Frequently Asked Questions
How many devices can this module control?
The 170ADM35010C provides 16 output channels, each capable of switching 0.5A loads.
What input signals does it accept?
It accepts 24V DC digital input signals with 4kΩ input resistance for reliable sensing.
What temperature range does it handle?
This module operates in extreme temperatures from -40°C to +70°C for harsh environments.
Is it suitable for outdoor use?
With conformal coating and wide temperature range, it suits industrial environments but needs proper enclosure.
What type of outputs does it have?
Solid-state outputs provide reliable switching without mechanical wear for long service life.
Package & Warranty
Includes: 1 x Schneider Electric I/O module, installation documentation.
Backed by 12-month quality warranty. Fast worldwide shipping via FedEx, UPS, DHL.
