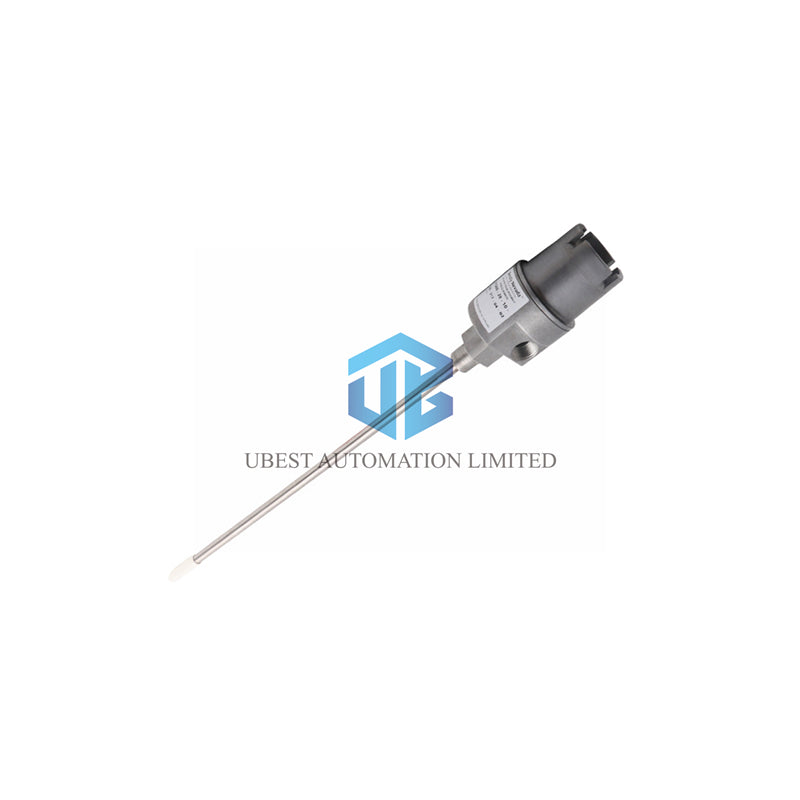

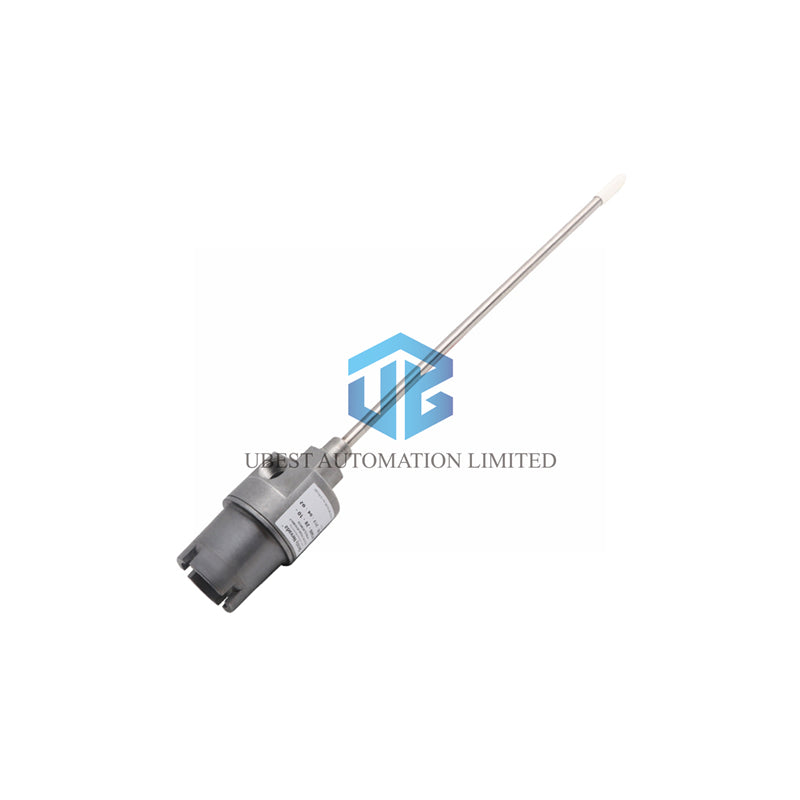

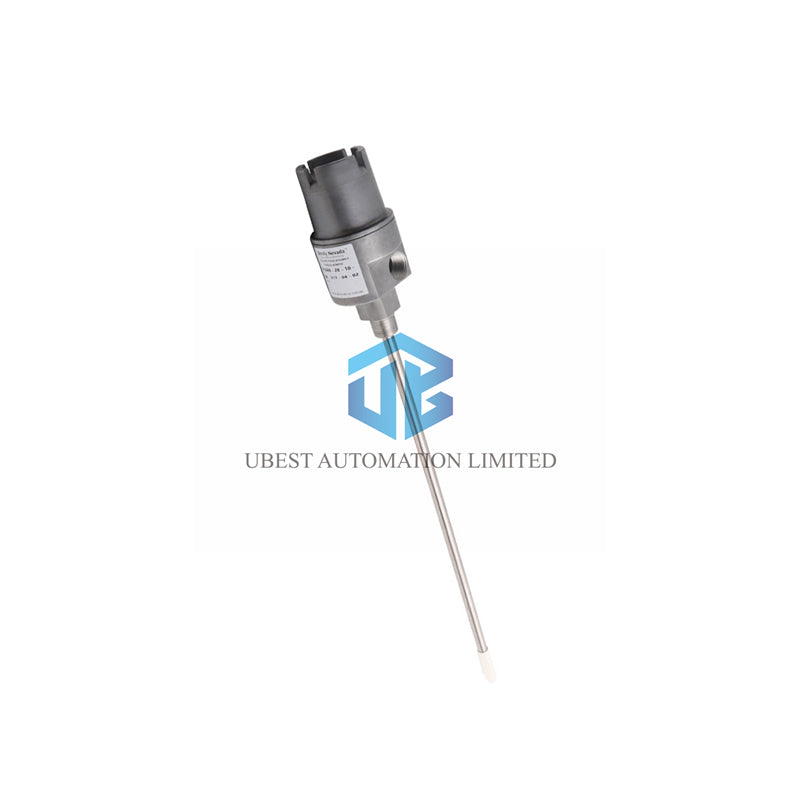

Bently Nevada 24701 Deep Penetration Custom Thread Housing

This 24701-28-05-00-110-03-01 housing provides 11.0 inch deep penetration capability. It combines compact 0.5 meter cable with threadless as-cast design. The complete fitting kit ensures ready installation. This 24701-28-05-00-110-03-01 unit features all-stainless construction. Includes 12-month warranty and fast global shipping. Download the official datasheet here

Technical Specifications

• Brand: Bently Nevada
• Product Series: 24701 Stainless Steel
• Body Material: 303 Stainless Steel
• Sleeve Material: 304 Stainless Steel
• Probe System: 3300 XL 8mm with Certifications
• Cable Length: 0.5 meter (20 inches) Compact
• Standoff Adapter: Not Included
• Probe Penetration: 11.0 inches Deep
• Fittings Package: Complete Installation Kit
• Mounting Thread: As-Cast Without Threads
• Total Assembly Height: 13.5 inches (34.3 cm)
• Unit Weight: 1.8 kg (4.1 pounds)
• Probe Visibility: Completely Internal
• Construction Type: All Stainless Steel
• Thread Design: Customizable Unthreaded
• Enclosure Class: CSA Type 4 Rated
• Safety Standard: Explosion Proof Certified
• Installation: Requires Custom Threading

Model Number Configuration Details

• 24701: Stainless Steel Housing Base
• 28: 3300 XL 8mm Probe with Approvals
• 05: 0.5 Meter Short Cable
• 00: No Standoff Adapter
• 110: 11.0 Inch Deep Penetration
• 03: Complete Fitting Kit Included
• 01: As-Cast Threadless Design

Specialized Design Advantages

• 11.0 Inch Deep Penetration for extended reach applications
• Threadless As-Cast Design allows complete customization
• Compact 0.5 Meter Cable ideal for space-limited installations
• Complete Fitting Kit provides all necessary components
• All Stainless Construction ensures maximum durability
• Explosion Proof Certified safe for hazardous locations

Package Contents

• Stainless steel protective dome
• Multiple threaded conduit ports
• 11.0 inch deep penetration sleeve
• Complete O-ring sealing set
• Reverse mount proximity probe
• Professional thread sealant
• 3/4-14 NPT closure plug
• Thread size reducer adapter
• Universal cable seal grip
• Three grommet size options

Installation Requirements

• Sleeve support required for 11.0 inch penetration
• Custom threading must be cut for installation
• Use complete fitting kit for connections
• Follow hazardous area electrical codes
• Ensure proper vibration damping
• Verify structural support integrity

Application Scenarios

• Deep penetration monitoring systems
• Custom threading applications
• Space-constrained installations
• Corrosive industrial environments
• Hazardous area machinery protection
• Specialized engineering projects

Service & Shipping Information

• 12-Month Quality Guarantee
• Original factory packaging
• Complete fitting kit included
• Technical documentation provided
• Express FedEx, UPS, DHL shipping
• Worldwide delivery available

Technical Support Questions

What thread size should be cut for installation?

Custom threading can be cut to your specific application requirements.

Is sleeve support mandatory for this depth?

Yes, sleeve support is required for the 11.0 inch penetration depth.

What fittings are included in the kit?

The kit includes NPT plugs, reducers, cable seal grip, and multiple grommets.

Can this housing be used in wet locations?

Yes, the CSA Type 4 rating provides weather and water protection.

What is the advantage of the short cable?

The 0.5 meter cable provides compact installation in tight spaces.
