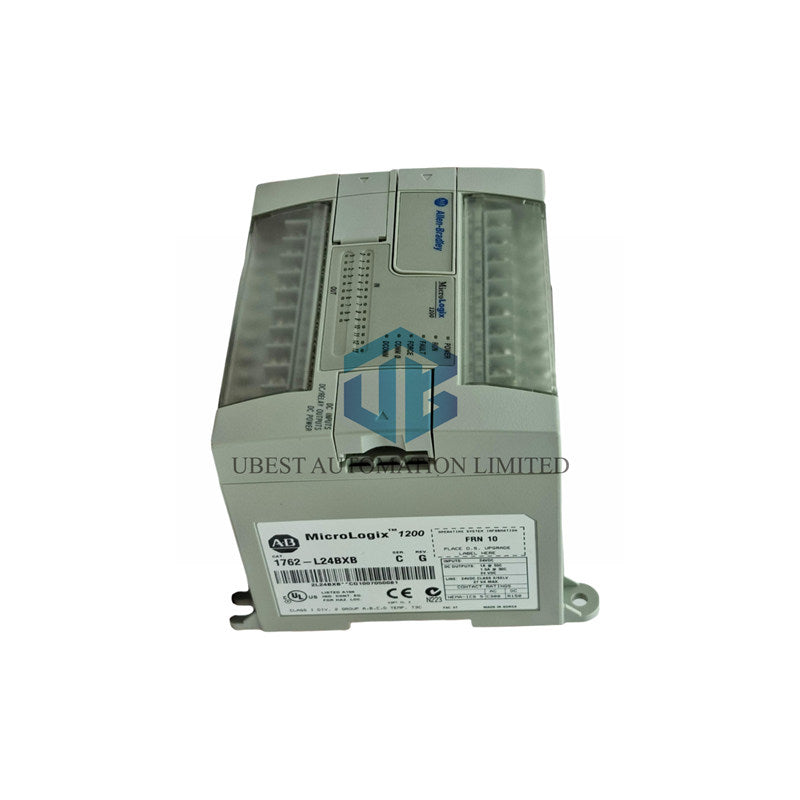

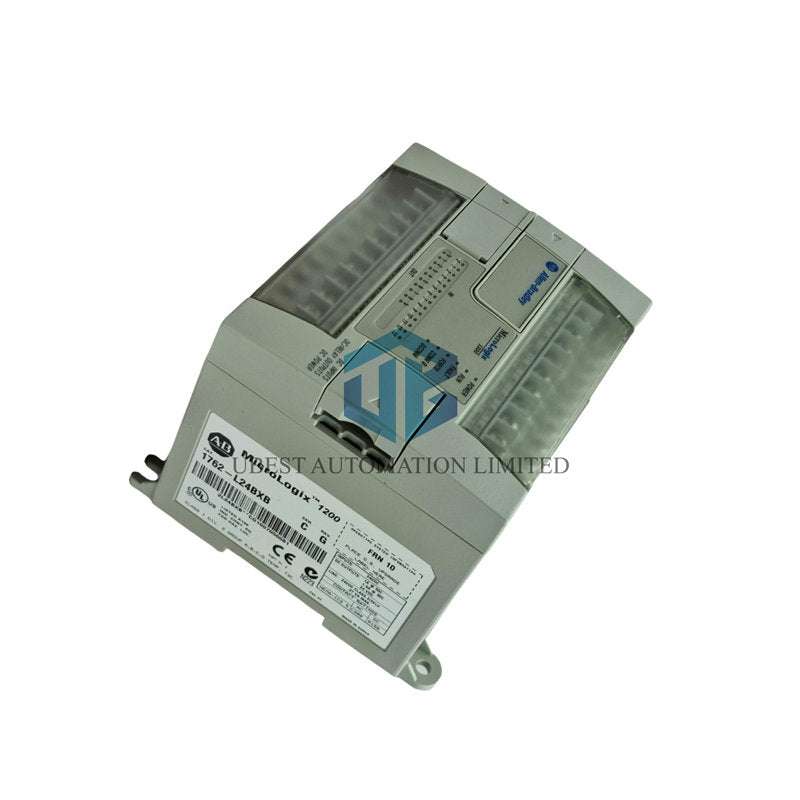

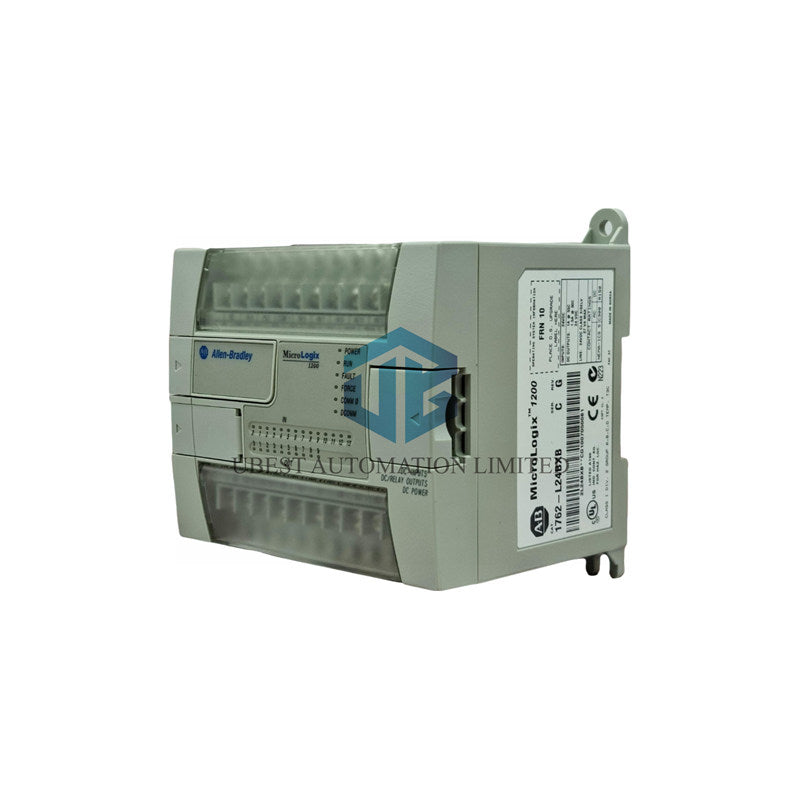

Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC

Compact and powerful controller with mixed I/O configuration. The 1762-L24BXB offers flexible control solutions for various automation applications.

Technical Specifications

Brand: Allen-Bradley
Model: 1762-L24BXB
Series: MicroLogix 1200
Input Power: 24VDC
Power Usage: 27W
Input Types: 10 standard + 4 fast 24VDC
Output Types: 5 relay + 4 FET + 1 high-speed
Relay Rating: 10A @ 24-125VDC/120-240VAC
Operating Temp: 0°C to 55°C
Communication: 8-pin mini-DIN port
Protocols: DF1, DH-485, ASCII, MODBUS
Dimensions: 90H x 160W x 87D mm
Weight: 2.4 pounds

Installation Options

Easy DIN rail or panel mounting. Compact size saves space. Install in industrial enclosure. Keep away from noise sources.

Warranty & Shipping

12-month product warranty. Fast delivery via FedEx, UPS, DHL. Quality guaranteed.

Download Documentation

Get complete technical information:

• Installation guide
• Wiring diagrams
• Programming manual
• Specification sheets

Download Complete Manual Here

Frequently Asked Questions

What is the maximum load current for relay outputs?

The relay contacts can handle 10A at 24-125VDC or 120-240VAC.

Can this controller communicate with MODBUS devices?

Yes, the 1762-L24BXB supports MODBUS protocol through its serial port.

What is the purpose of the fast inputs?

The 4 fast inputs allow high-speed counting and rapid response applications.

How much backup current does the power supply provide?

It supplies 400mA at 5VDC and 350mA at 24VDC for external devices.

What mounting methods are supported?

Both DIN rail and direct panel mounting are supported for flexible installation.
