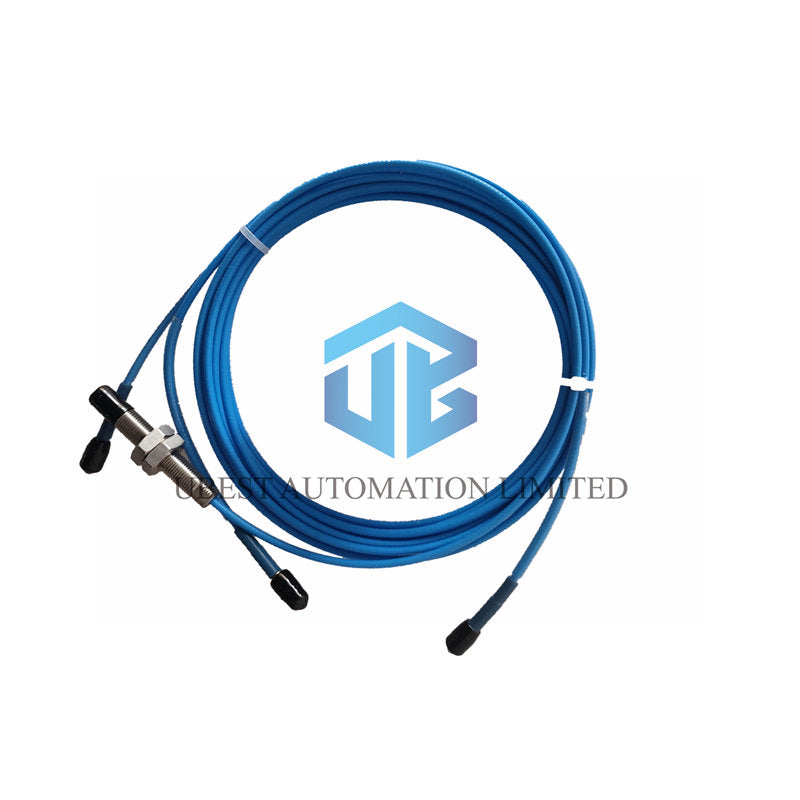

Emerson EZ1081 Armored Eddy Current Sensor with Enhanced Protection

Advanced Sensing Technology

• The Emerson EZ1081-03-00-010 features armored cable construction.
• This 8mm eddy current sensor provides non-contact displacement measurement.
• It offers superior protection in demanding industrial environments.
• The sensor detects shaft vibration, position, and eccentricity with precision.
• You get reliable performance for critical turbomachinery monitoring applications.

Precision Technical Specifications

• Brand: Emerson
• Model: EZ1081-03-00-010
• Measurement Range: 2.0 mm (0.08 inches) full scale
• Frequency Response: 0 to 15 kHz for dynamic measurements
• Sensitivity Options: 7.87 V/mm (API) or 8.0 V/mm (ISO)
• Linearity Error: Better than ±0.5% of full scale range
• Resolution: 0.08 μm for detecting minute vibrations
• Temperature Stability: ±2% accuracy from -20°C to +85°C
• Initial Gap Setting: 0.5 mm optimal starting distance
• Cable Type: 1-meter armored FEP cable for protection

Robust Environmental Protection

• IP67 rating ensures complete dust protection and water resistance.
• Armored cable construction prevents damage in harsh installations.
• Stainless steel case withstands corrosive environments and impacts.
• Glass-fiber reinforced PEEK tip resists wear and thermal degradation.
• The sensor operates reliably in high-vibration industrial settings.

Installation & Mounting Specifications

• Use M10x1 mounting thread with recommended 15-20 Nm torque.
• Compact 30mm sleeve length fits space-constrained applications.
• Zero unthreaded length allows for direct flush mounting.
• Maintain 0.5mm initial gap using appropriate setting tools.
• Ensure target material meets AISI 4140 or equivalent specifications.

Global Safety Certifications

• ATEX and IECEx certifications for explosive atmosphere safety.
• CE compliance ensures meeting European Union directives.
• UL and CSA approvals for North American market requirements.
• SIL 2 capable for safety instrumented system applications.
• Marine DNV GL certification for offshore and shipboard use.

Enhanced Protection Features

• Armored cable provides crush resistance up to 1500 N force.
• Enhanced EMI/RFI immunity ensures stable signal transmission.
• Superior oil and chemical resistance for harsh environments.
• Extended mechanical lifespan exceeds 100 million cycles.
• Improved strain relief at cable entry point prevents damage.

Shipping & Package Information

• Each unit includes one complete sensor with armored cable.
• Standard 1-meter cable length ready for immediate installation.
• We ship globally via FedEx, UPS, and DHL express services.
• All orders include real-time tracking and delivery confirmation.
• Products undergo rigorous quality testing before dispatch.

Expert Technical Support

• What advantages does armored cable provide?
• Armored cable prevents damage from abrasion, crushing, and chemicals.
• How does temperature affect sensor performance?
• Performance stays within ±2% from -20°C to +85°C ambient temperature.
• Can this sensor measure both static and dynamic positions?
• Yes, it accurately measures both static gap and dynamic vibration.
• What is the recommended maintenance interval?
• These sensors typically require no regular maintenance in service.
• How do I verify proper sensor operation after installation?
• Check output voltage and waveform using appropriate test equipment.
