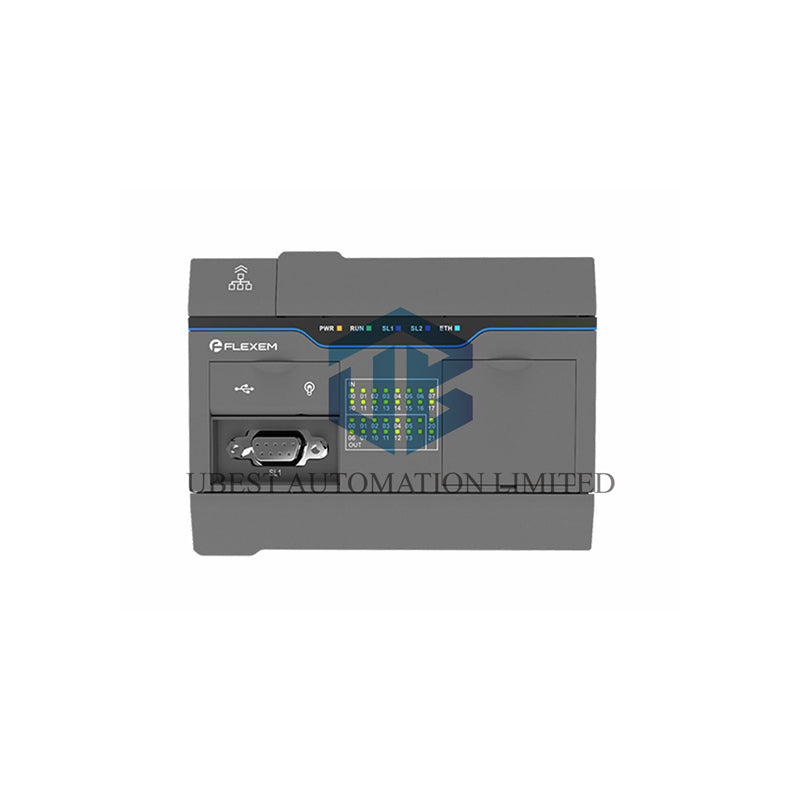

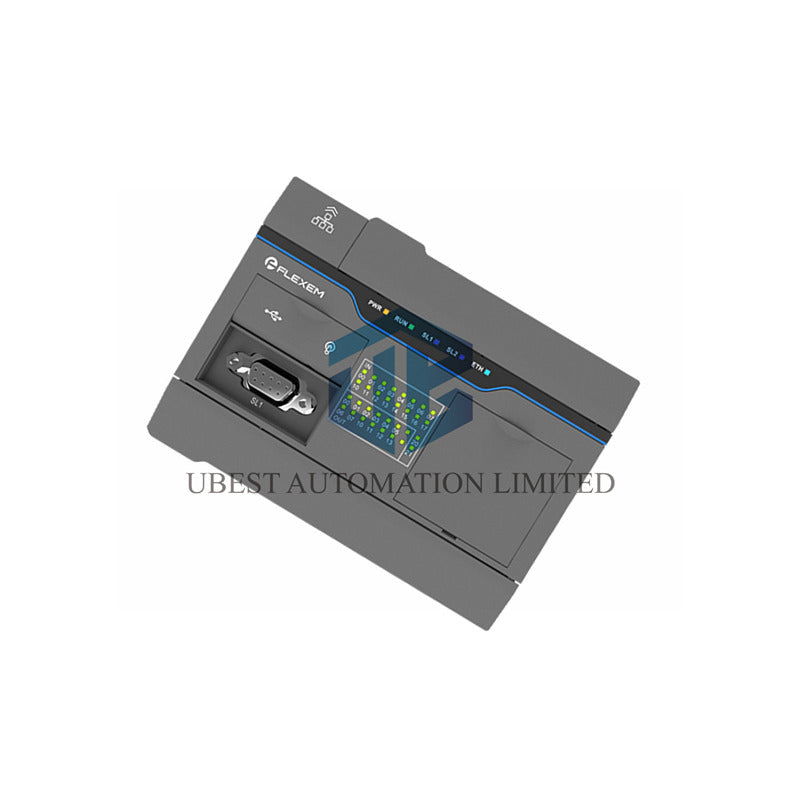

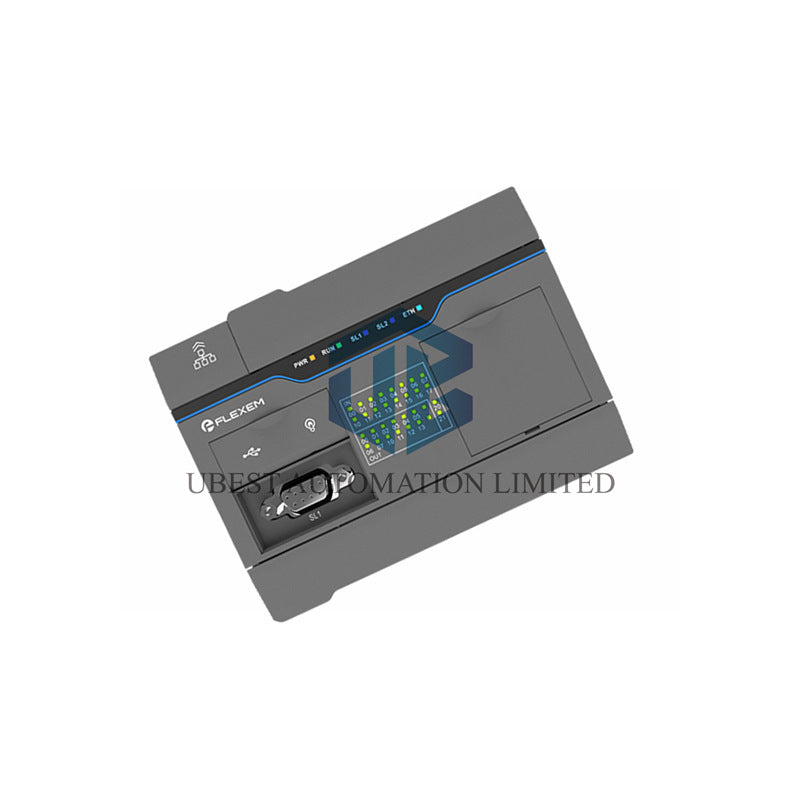

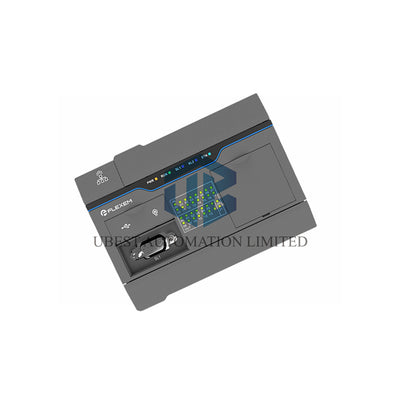

Flexem FC5-30MN-DC: Compact Programmable Logic Controller

Discover the Flexem FC5-30MN-DC PLC unit. This all-in-one controller combines 30 I/O points with multiple communication options. Perfect for small to medium automation projects requiring reliable control and easy connectivity.

Why Choose FC5-30MN-DC?

• Complete I/O Package: 18 inputs and 12 outputs in one unit
• Multiple Connectivity: Ethernet, serial ports, and USB-C options
• Expandable Design: Supports additional I/O modules when needed
• Real-Time Clock: Built-in timekeeping with battery backup

Complete Technical Specifications

• Product Model: Flexem FC5-30MN-DC
• Total I/O Points: 30 integrated points
• Input Type: 18 digital input points
• Output Type: 12 NPN transistor outputs
• Power Supply: 24V DC operation
• Communication Ports: 2 serial, 1 Ethernet, 1 USB-C
• Serial Port 1: RS232/RS485 selectable
• Serial Port 2: RS485 communication
• Baud Rate Range: 4800 to 115200 bps
• Ethernet Port: 10/100M self-adaptive RJ45
• USB Interface: Type-C for programming and monitoring
• Expansion Capability: Supports 1 expansion board
• Max Expansion: Up to 31 I/O modules (with CPU)
• Real-Time Clock: Built-in with battery backup
• Clock Accuracy: ±3 seconds per day
• Battery Backup: 1 year data retention
• Modbus Support: 2 channels available
• Modbus Port 1: DB9 connector type
• Modbus Port 2: Terminal block connection
• Operating Voltage: 24V DC ±20% range
• Power Consumption: Low energy design

Professional Questions & Answers

How many devices can I connect to this PLC?

With 2 serial ports, 1 Ethernet port, and expansion capability, you can connect multiple devices including HMIs, drives, and sensors.

What is the purpose of the built-in clock?

The real-time clock allows time-based operations and event logging, with battery backup maintaining time during power outages.

Can I add more input and output points?

Yes, the FC5-30MN-DC supports one expansion board and can work with up to 31 I/O modules when connected to a compatible CPU.

What programming software is needed?

You can program using Flexem's software via the USB Type-C port for easy download and online monitoring.

Is this suitable for Modbus networks?

Yes, it provides two Modbus communication channels supporting both RS232 and RS485 protocols for industrial networks.

Warranty Information

We provide complete 12-month product protection with full technical support for all your application needs.

Shipping Services

Fast worldwide delivery through FedEx, UPS, and DHL shipping partners.

Need help selecting the right controller? Contact our automation specialists!
