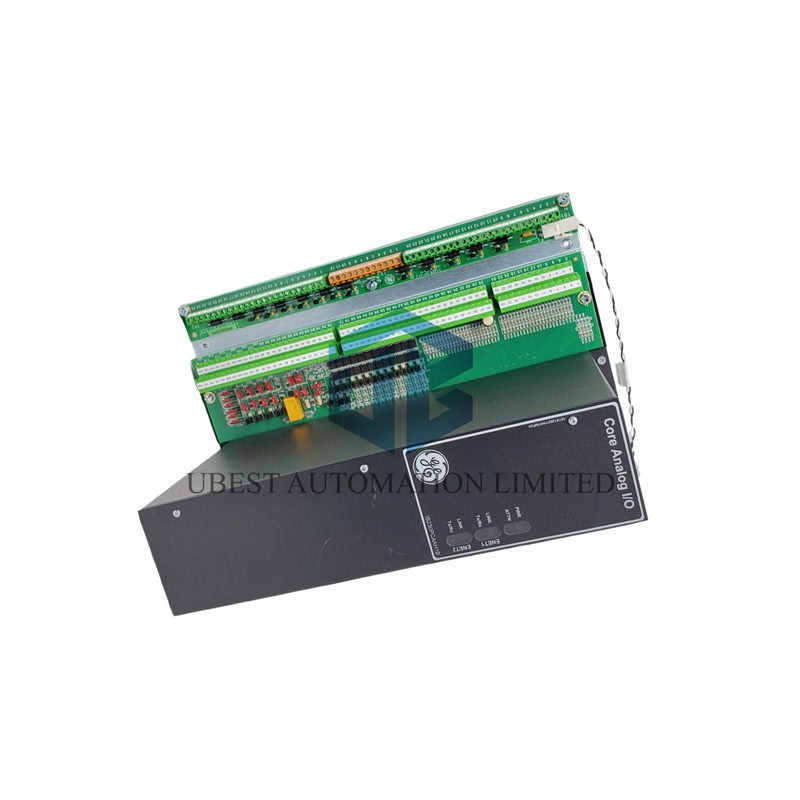

GE IS230PCAAH1B Analog I/O Module - Mark VIe Multi-Signal Interface
UBEST – Доверен световен доставчик на части за автоматизация
Предлагаме широка гама от налични резервни части за индустриална автоматизация. Всички продукти идват с 12-месечна гаранция и 30-дневно връщане на парите при проблеми с качеството.

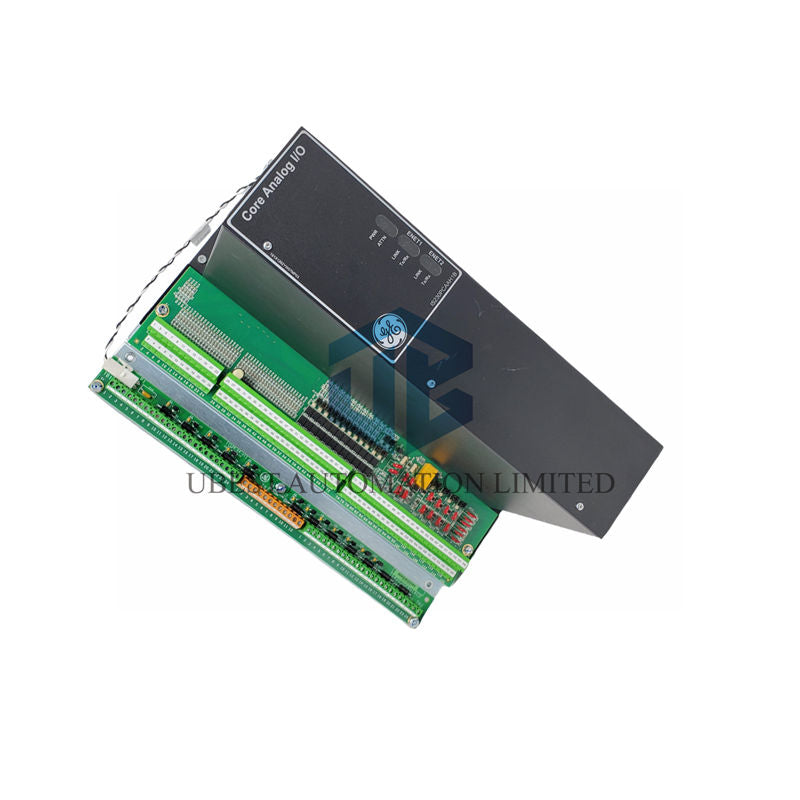

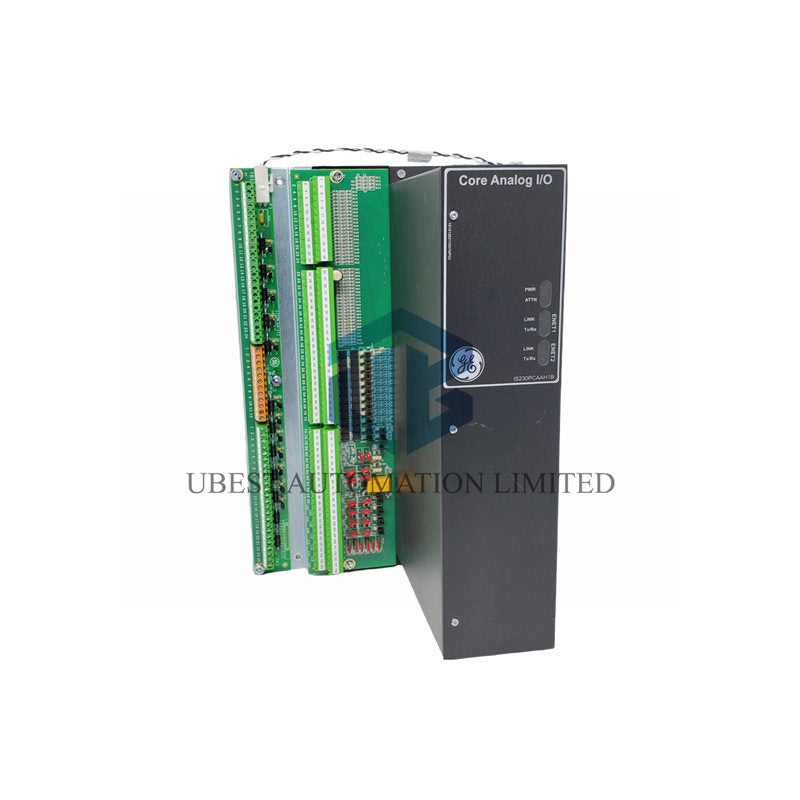

GE IS230PCAAH1B Core Analog I/O Module
Handle complex analog signals with this versatile I/O module from General Electric. Perfect for Mark VIe turbine control systems. Provides accurate measurement and control. Works in simplex, dual, and TMR configurations.
- Multiple Signal Types - Handles thermocouple, LVDT, and 4-20mA signals
- High Accuracy - Precise measurement for critical applications
- Easy Integration - Dual Ethernet ports for simple connection
- Rugged Design - Operates in tough industrial environments
Technical Specifications
Brand: General Electric
Model: IS230PCAAH1B Core Analog I/O Module
Series: Mark VIe Control System
Input Types: 25 analog inputs total
Output Signal: 4-20 mA current loop
Voltage Input Accuracy: ±0.50% (0-10V DC)
LVDT Input Accuracy: ±1.00%
Servo Output Accuracy: ±3.50%
Power Supply: 28V DC ±5%
Operating Temperature: -30°C to +65°C
Ethernet Ports: 2 RJ45 connectors
Frame Rates: 40ms and 10ms operation
Dimensions: 33.02cm H x 17.8cm W
Technology: Surface-mount design
Field Terminals: 120 Euro-style terminals
Key Features
Multiple Signal Support - Works with thermocouples, LVDT, seismic sensors
Flexible Configuration - Supports simplex, dual, and TMR systems
Reliable Operation - Built for continuous industrial use
Easy Monitoring - Status LEDs for quick diagnostics
Frequently Asked Questions
What signal types can this module handle?
The IS230PCAAH1B supports thermocouples, 4-20mA signals, LVDT inputs, seismic sensors, and servo outputs.
How many Ethernet ports are available?
There are two independent 10/100 Ethernet ports for network connectivity.
What is the operating temperature range?
It operates reliably from -30 degrees Celsius to +65 degrees Celsius.
Can this module work in redundant systems?
Yes, it supports simplex, dual, and triple modular redundant (TMR) configurations.
What power supply does it require?
It needs 28V DC power with ±5% tolerance for proper operation.
Package Contents
• GE IS230PCAAH1B analog I/O module
• Installation documentation
• Mounting hardware
