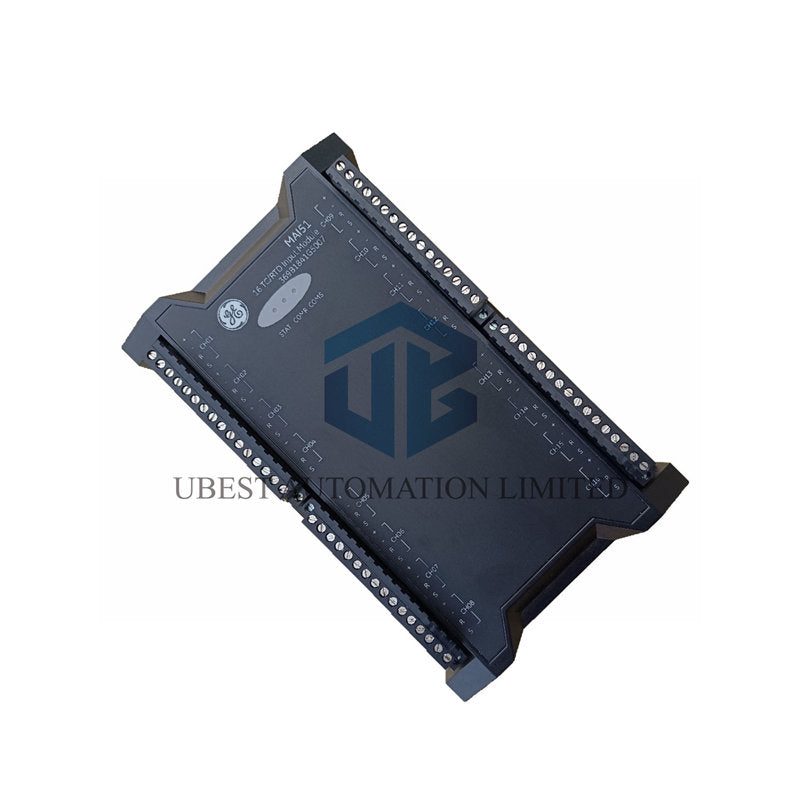

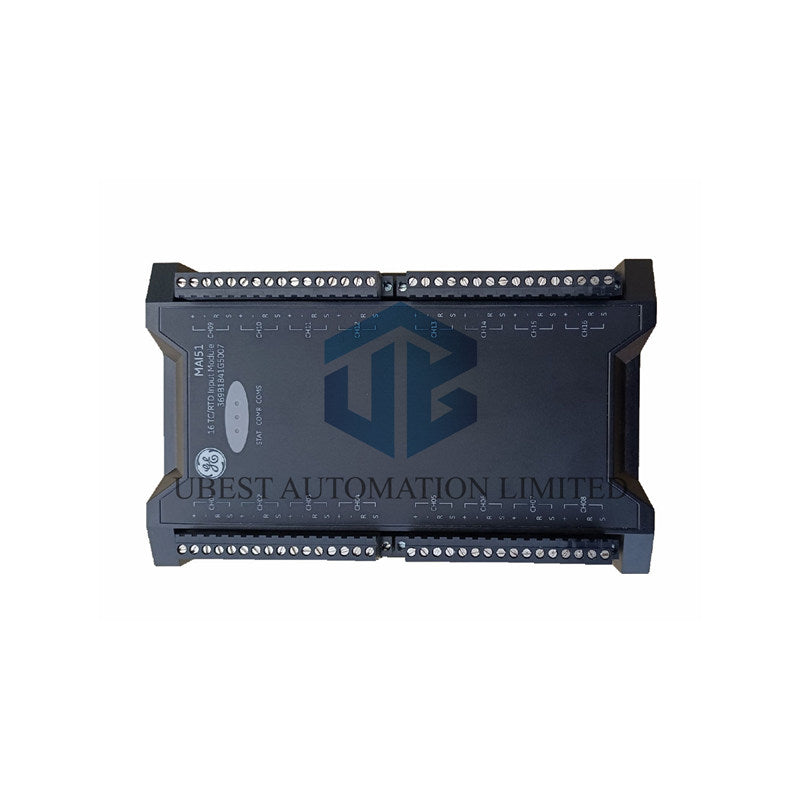

GE Nexus 369B1841G5007: Versatile Temperature Input Module
- Monitor 16 temperature points with one compact module
- Connect both RTD and thermocouple sensors easily
- Rely on dual power inputs for continuous operation
- Get precise readings with 0.2% maximum error
Product Overview
The GE Nexus 369B1841G5007 handles temperature measurement. This MAI51 module works with RTDs and thermocouples. It offers 16 isolated channels for flexible sensor connections. Built-in LEDs show real-time status. Perfect for industrial temperature monitoring.
Technical Specifications
- Brand: GE Nexus
- Model: 369B1841G5007 MAI51
- Input Types: RTD and Thermocouple
- RTD Support: Pt100, Pt10, Cu50, Cu100
- TC Types: E, J, K, T, R, S, B, N
- Channels: 16 isolated inputs
- Accuracy: Within 0.2%
- Resolution: 16-bit ADC
- Power: 21.6-26.4V DC, 1.8W typical
- Isolation: 1500V AC protection
- Wiring: 2-wire or 3-wire RTD connection
Installation & Setup
Simple screw mounting. Use removable terminal blocks. Maximum wire size 2.5mm². Keep ambient temperature between 0-60°C. Ensure proper air circulation.
Power Supply
Dual 24V DC power inputs. Automatic switchover if one fails. Low power consumption under 2W.
Environmental Protection
Operates in harsh conditions. Handles vibration and dust. Works in high humidity up to 90%.
Shipping & Support
Fast worldwide delivery via FedEx, UPS, DHL. Includes 12-month product warranty. Technical support available.
Frequently Asked Questions
Which temperature sensors work with this module?
It supports all common RTDs including Pt100 and Cu50, plus eight thermocouple types from E to B.
How many sensors can I connect simultaneously?
All 16 channels can be used at the same time with mixed sensor types if needed.
What wiring configurations are supported for RTDs?
Both 2-wire and 3-wire RTD connections are supported for installation flexibility.
How accurate are the temperature readings?
Maximum error is 0.2% across the entire measurement range with stable performance.
Is electrical noise a concern in industrial settings?
Excellent noise rejection >120dB CMRR ensures reliable operation in electrically noisy environments.
