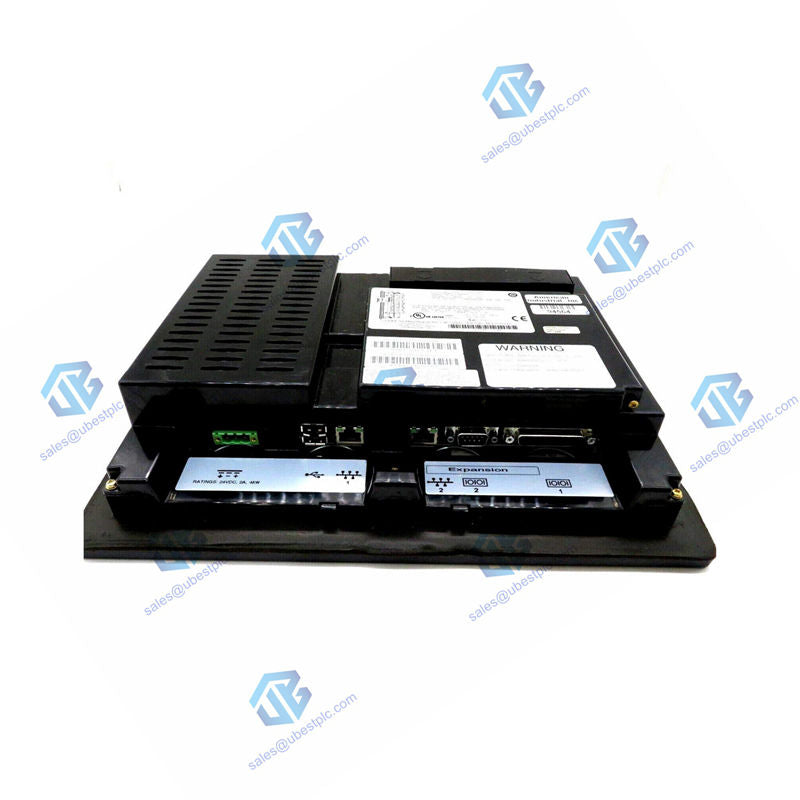

GE QuickPanel View IC754CSF12CTD: 12-Inch Widescreen HMI Controller

The GE QuickPanel View IC754CSF12CTD is an advanced all-in-one microcomputer HMI controller featuring a modern 12-inch widescreen color display. Running on Windows Embedded Compact 7, it provides a powerful and familiar 32-bit graphical interface for machine control and monitoring. With its ARM core processor, versatile connectivity, and robust design, this unit serves as a centralized interface for complex industrial automation tasks.

Complete Technical Specifications

Brand & Line: GE Fanuc / Emerson | QuickPanel View Series

Model: IC754CSF12CTD

Display: 12-inch Color TFT Widescreen Touchscreen

Resolution: 800 x 480 Pixels (WVGA)

Operating System: Microsoft Windows Embedded Compact 7

Processor: Advanced ARM Core Microprocessor

Memory: 512 MB DRAM (shared for OS & Application), 64 MB Flash, 512 KB Battery-Backed SRAM

Communication Ports: Ethernet (10/100 with LEDs), RS-232, RS-485

Development Software: Proficy View-Machine Edition

Input Power: 12 V DC or 24 V DC

Power Consumption: 15 W

Max Voltage: 30 V DC

Operating Temperature: 0°C to +50°C

Enclosure Recommendation: IP65, JEM1030

User Indicators: Tri-color Status LED, Onboard Buzzer

Weight: 3.01 kg (6.63 lbs)

Installation & Compatibility Guide

Mounting: Install within a panel that meets IP65 or JEM1030 ingress protection ratings to ensure protection against dust and water jets. Maintain ambient temperature within 0-50°C.

Power & Wiring: Use the supplied quick-connect plug to wire the 12/24V DC power supply. Ensure frame ground is properly connected as per installation guidelines.

Compatibility: This controller is programmed using GE's Proficy Machine Edition software. Its Ethernet and serial ports allow communication with a vast array of GE and third-party PLCs, drives, and instruments, making it a central hub for system integration.

Certifications & Compliance

This product is designed for industrial use and is recommended for installation in IP65-rated enclosures. It is engineered to operate in environments with Pollution Degree 2 (non-conductive pollution) and can withstand defined levels of vibration, ensuring reliability in typical factory settings.

What's in the Box & Warranty

Package Includes:
1 x GE QuickPanel View IC754CSF12CTD HMI Controller
1 x Quick-Connect Power Plug
1 x Set of Mounting Hardware
1 x User Documentation

This product is covered by a standard 12-Month Warranty against defects in materials and workmanship.

Shipping: We deliver worldwide using reliable express carriers including FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

What is Windows Embedded Compact 7?

It is a modern, component-based 32-bit real-time operating system from Microsoft, providing a stable and familiar platform for industrial HMI applications.

What is the battery-backed SRAM for?

It provides non-volatile storage for critical runtime data, alarms, and recipe parameters, preserving them during a power cycle.

Does it have an Ethernet port?

Yes, it features a 10/100 Mbps Ethernet port with two integrated LEDs to show link status and network activity.

What software is needed for development?

Applications are developed and deployed using GE's Proficy Machine Edition software.

Can it be used in damp environments?

Yes, when installed in a properly sealed IP65-rated enclosure, it is protected against dust and water jets.

What is the purpose of the onboard buzzer?

The buzzer can be programmed to provide audible alarms or confirmations for operator actions.
