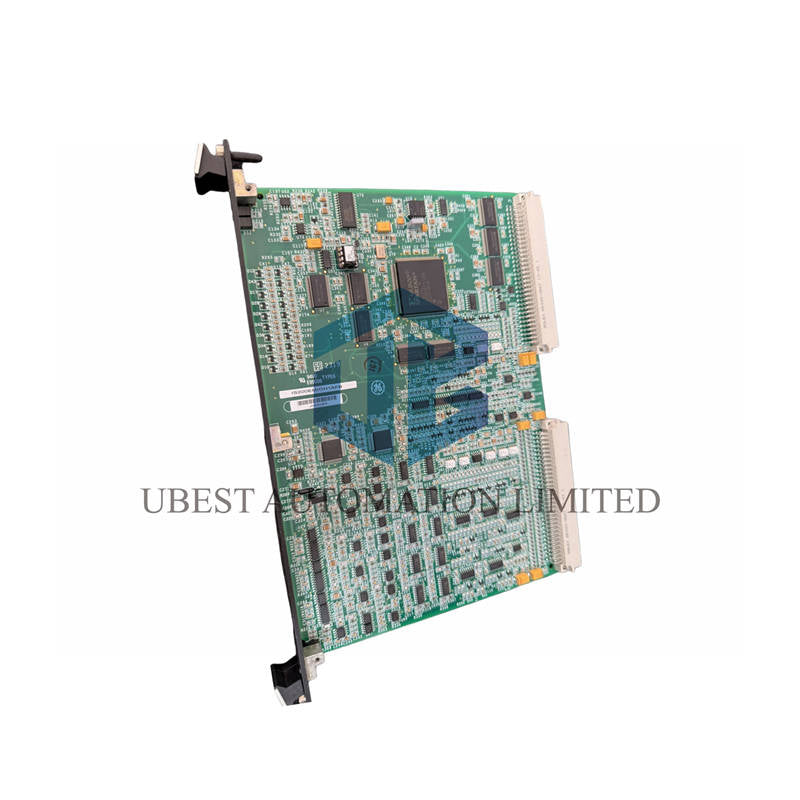

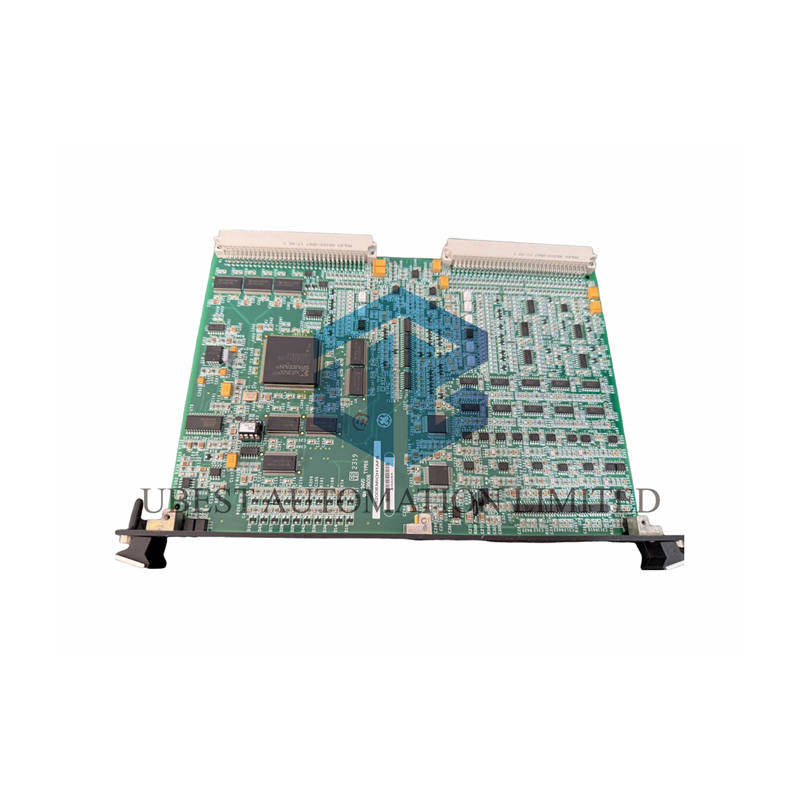

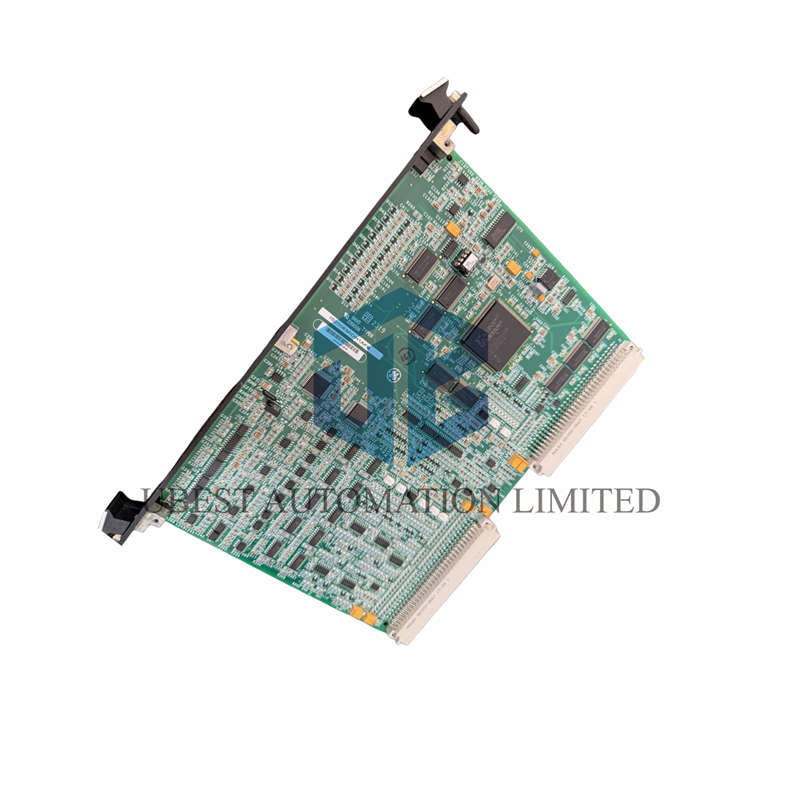

GE EX2100 Exciter Main I/O Board IS200EMIOH1A

Core Functionality & System Integration

• The IS200EMIOH1A serves as the central I/O management hub within the EX2100 control system.
• This General Electric board processes signals from multiple terminal boards including ECTB, EACF, EXTB, and EPCT.
• It handles critical tasks like contact input monitoring and output relay driving for system control.
• The board also generates and sends logic-level gate pulse signals to the ESEL board via the backplane.
• Its operation initiates de-excitation sequences by controlling the connected EDEX board.

Detailed Technical Specifications

• Manufacturer & Model: General Electric IS200EMIOH1A
• Product Series: EX2100 Excitation Control System
• Board Type: Exciter Main Input/Output (I/O) Board
• Form Factor: Single-slot, Double-height VME Style Card
• Dimensions: 9.25 Inches (Length) x 6.5 Inches (Width)
• Operating Voltage: 5V DC (for Power LED indication)
• Signal Handling: PT/CT signals, Contact Inputs, Relay Drivers
• Status Monitoring: 2 LEDs (Power and FPGA Status)
• FPGA Integration: IMOK output linked to Status LED for health monitoring
• Board Weight: Approximately 2 pounds (0.91 kilograms)
• Backplane Interface: Connector P1 for inter-board communication
• I/O Connection: Connector P2 for external signal interface via EBKP

Hardware Features & Physical Characteristics

• The front plate features two LED indicators for immediate status checks.
• It utilizes captive screws on the faceplate for secure and easy installation.
• The board contains no jumpers, fuses, or direct cable connectors for simplified maintenance.
• All I/O board cabling connects directly through the control backplane (EBKP).
• This double-height VME module fits standard EX2100 control rack slots.

Packaging & Shipping Information

• We package each IS200EMIOH1A board securely to prevent transit damage.
• Your shipment includes the Exciter Main I/O board ready for installation.
• We ship worldwide using reliable carriers including FedEx, UPS, and DHL.
• You will receive tracking information immediately after your order dispatches.
• All products come with a comprehensive 12-month warranty for your peace of mind.

Expert Technical Support & FAQs

• What is the primary function of the Status LED on the EMIO board?
• The Status LED connects directly to the FPGA's IMOK output, providing real-time board health status.
• How does the EMIO board interface with other system components?
• Connector P1 handles backplane communication with other control boards, while P2 interfaces with I/O signals.
• Can the IS200EMIOH1A operate without the EBKP backplane?
• No, all I/O board cabling connects through the EBKP backplane, which is essential for operation.
• What types of signals does this board process for excitation control?
• It handles PT and CT signals, contact inputs, output relay drivers, and pilot trip relay drives.
• Where can I find technical documentation for this board?
• Consult manual GEI-100453 or the GEH-6632 EX2100 User's Guide, page forty-eight for reference.
