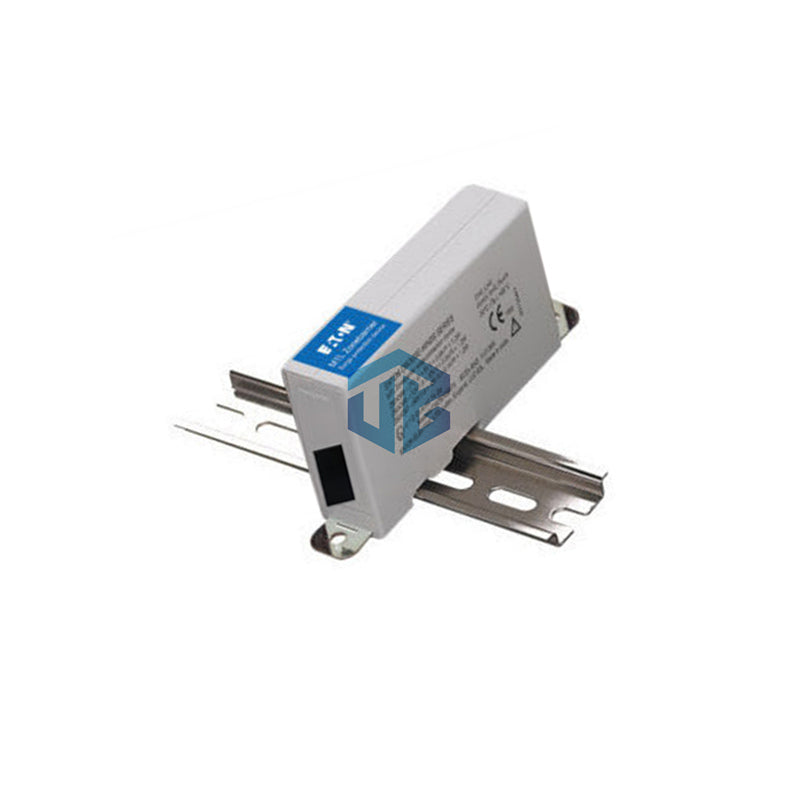

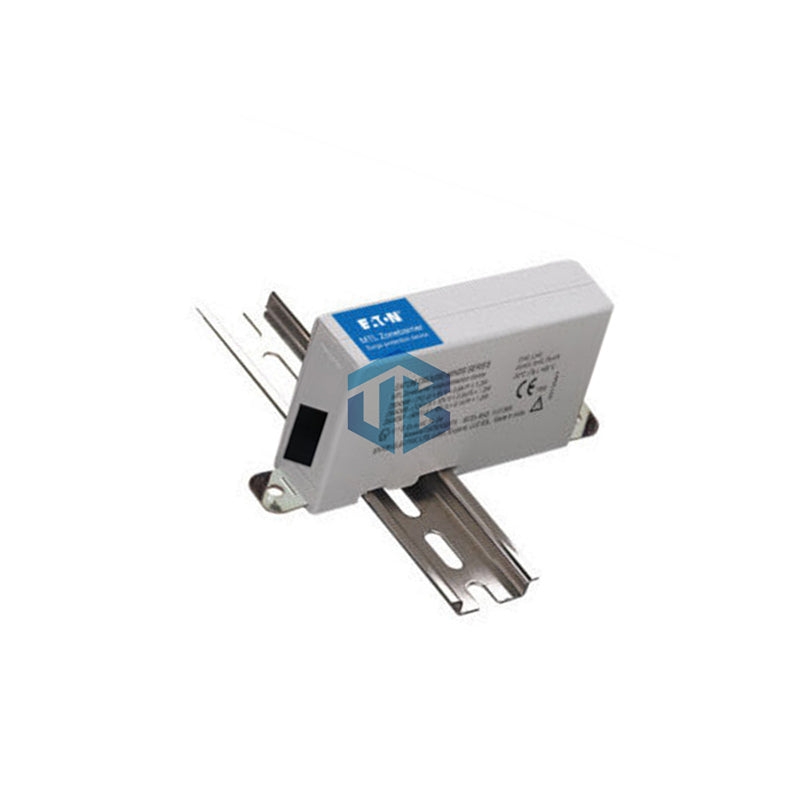

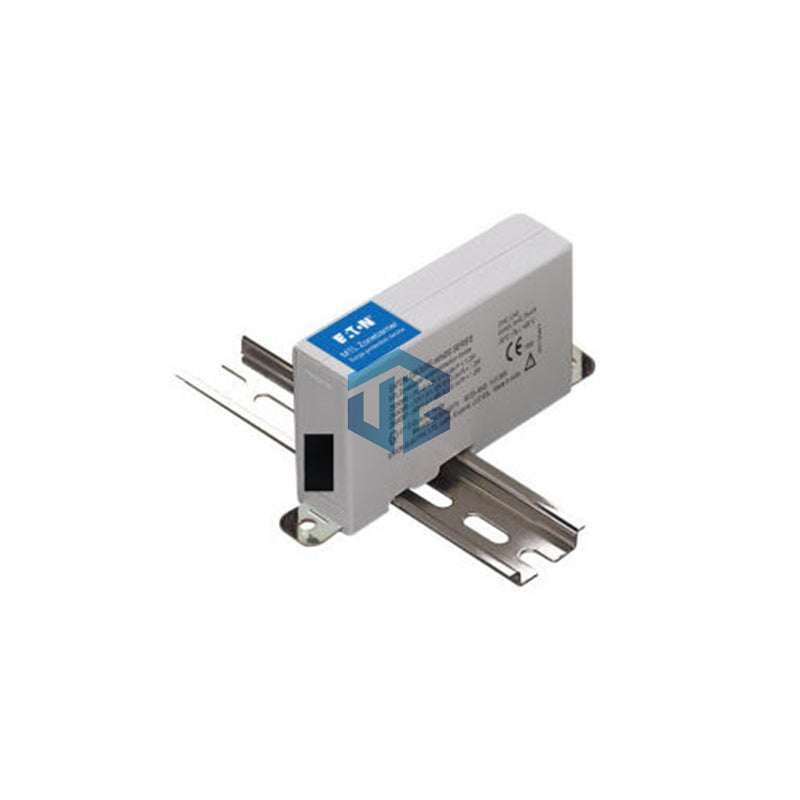

MTL ZBS-24VCL-6W-TS (ZB24542): 6-Channel Intrinsic Safety Barrier

Product Highlights

The ZBS-24VCL-6W-TS protects 6 instrument loops in hazardous areas. This ZoneBarrier module delivers 30V surge protection for 4-20mA signals with pluggable terminals for easy maintenance.

Key Specifications

• Brand: MTL Instruments
• Model: ZBS-24VCL-6W-TS (ZB24542)
• Type: 4-20mA isolation barrier
• Channels: 6 isolated loops
• Voltage: 24V DC (30V max)
• Current: 0.5A continuous per channel
• Surge Protection: 10kA maximum
• Response: 0.5MHz bandwidth
• Termination: Pluggable screw terminals
• Safety: ATEX/IECEx certified

Advanced Protection Features

• Ultra-low 5µA leakage current
• <5Ω line resistance maintains signal accuracy
• Clear "Protected/Unprotected" labeling
• Molded plastic casing for durability
• -40°F to +185°F operating range

Installation Guide

Mount in-line with instrument loops. Use proper grounding. Keep wiring runs short for best performance.

Package Contents

• 1x ZBS-24VCL-6W-TS barrier
• Installation manual

Warranty & Shipping

12-month product warranty. Ships via FedEx, UPS, or DHL worldwide.

Technical FAQs

• Q: Can it protect Ethernet signals?
  A: No, this model is for 4-20mA signals only
• Q: What certifications does it have?
  A: ATEX, IECEx, and BS EN standards
• Q: How many barriers can be daisy-chained?
  A: Consult the manual for system design
• Q: Is it suitable for Zone 0 areas?
  A: Yes, when properly installed
• Q: What's the expected service life?
  A: 10+ years with proper maintenance
