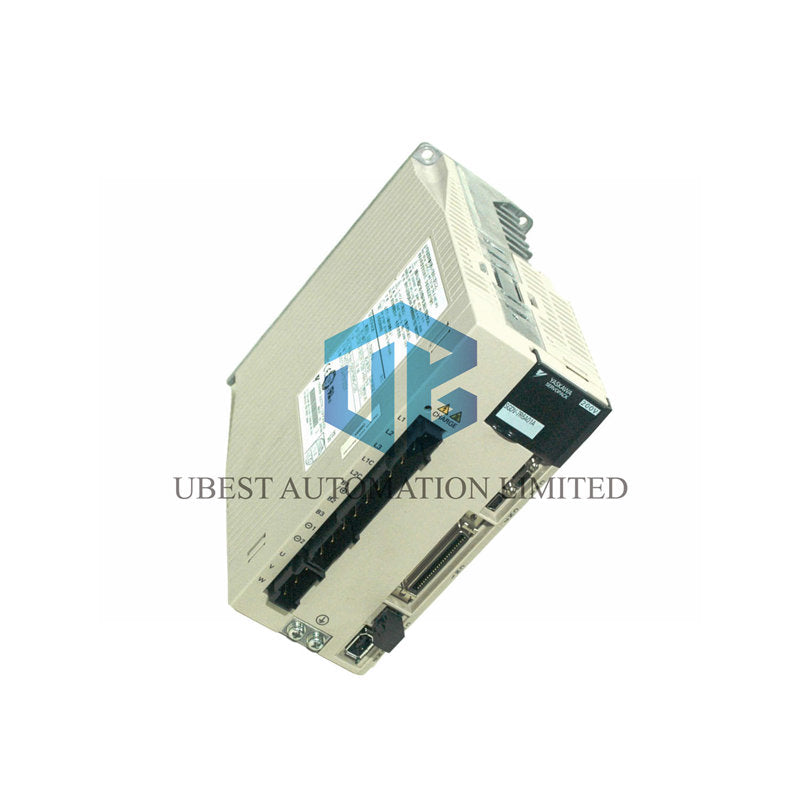

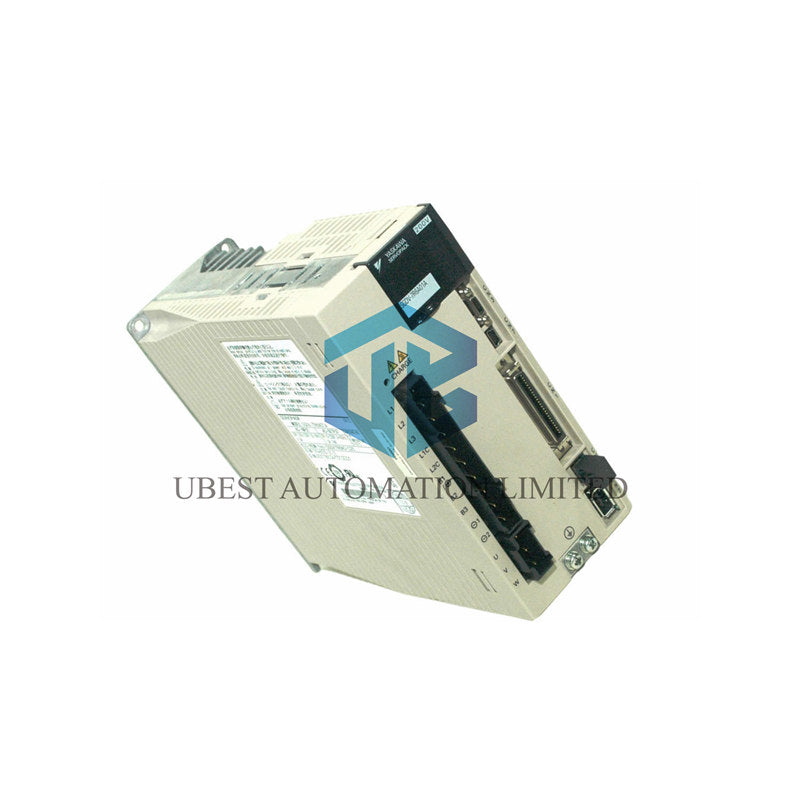

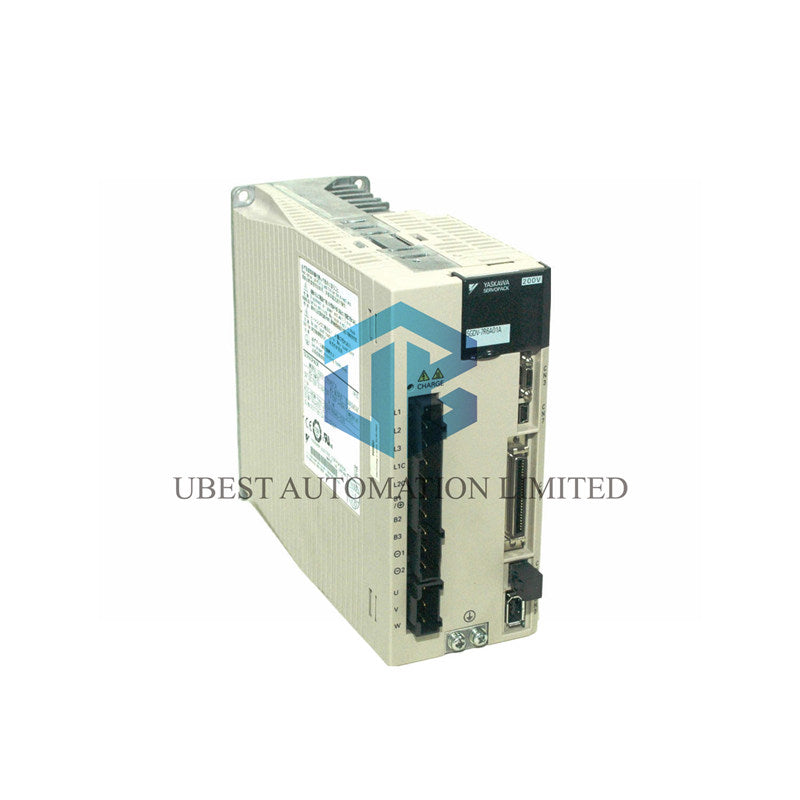

SGDV-7R6A01A002000 Yaskawa 1kW SERVOPACK Drive
UBEST – Доверен световен доставчик на части за автоматизация
Предлагаме широка гама от налични резервни части за индустриална автоматизация. Всички продукти идват с 12-месечна гаранция и 30-дневно връщане на парите при проблеми с качеството.
Precise 1 kW Servo Drive for Smooth Motion Control
The Yaskawa SGDV-7R6A01A002000 is a powerful AC servo drive. It delivers 1 kW of power for accurate machine movement. Perfect for automation, robotics, and CNC applications.
Key Features & Benefits
- High power density in a compact, 1.47 kg unit.
- Wide input voltage range (170-253V AC).
- Supports fast operation with 0-400 Hz frequency.
- Robust 7.6 A current output for demanding loads.
- Compatible with standard 50/60 Hz power systems.
- Part of the reliable Yaskawa SERVOPACK series.
Complete Technical Specifications
Brand: Yaskawa
Model: SGDV-7R6A01A002000 SERVOPACK Drive
Power Rating: 1 kW
Current Rating: 7.6 A
Input Voltage: 170 - 253 V AC, 3-Phase
Frequency Range: 0 - 400 Hz
Rated Speed: 1500 RPM
Operating Frequency: 50 / 60 Hz
Shaft Diameter: 19 mm
Flange Diameter: 110 mm
Weight: 1.47 kg
Control Mode: Torque, Speed, Position
Feedback: Compatible with standard servo motors (Incremental encoder).
Protection: Overcurrent, Overvoltage, Overheating safeguards.
Frequently Asked Questions (FAQ)
What type of motor works with this SGDV drive?
It is designed to pair with Yaskawa SGMJV or similar series servo motors that match the 1kW power rating and use incremental encoders.
Can it be used for spindle control?
While designed for servo applications, its 0-400 Hz frequency range and speed control make it suitable for some basic spindle drives requiring precise speed regulation.
How do I connect and set it up?
Connect three-phase power, the matched servo motor, and a controller (like a PLC). Basic parameters can be set via the digital operator or software for tuning.
What's the main advantage of the 400 Hz frequency capability?
It allows for very high motor speeds and extremely fast acceleration/deceleration rates, which is critical for reducing cycle times in automated machinery.
Is dynamic braking or regeneration supported?
Yes, this drive typically includes a built-in regenerative resistor circuit to safely dissipate energy during motor braking, protecting the unit.
Package & Support Information
Your order includes the genuine Yaskawa SGDV-7R6A01A002000 servo drive. We ship quickly via FedEx, UPS, or DHL. All products are covered by our reliable 12-month warranty.
