Yaskawa SGM-08U3B4L: High-Performance Motion for Advanced Automation

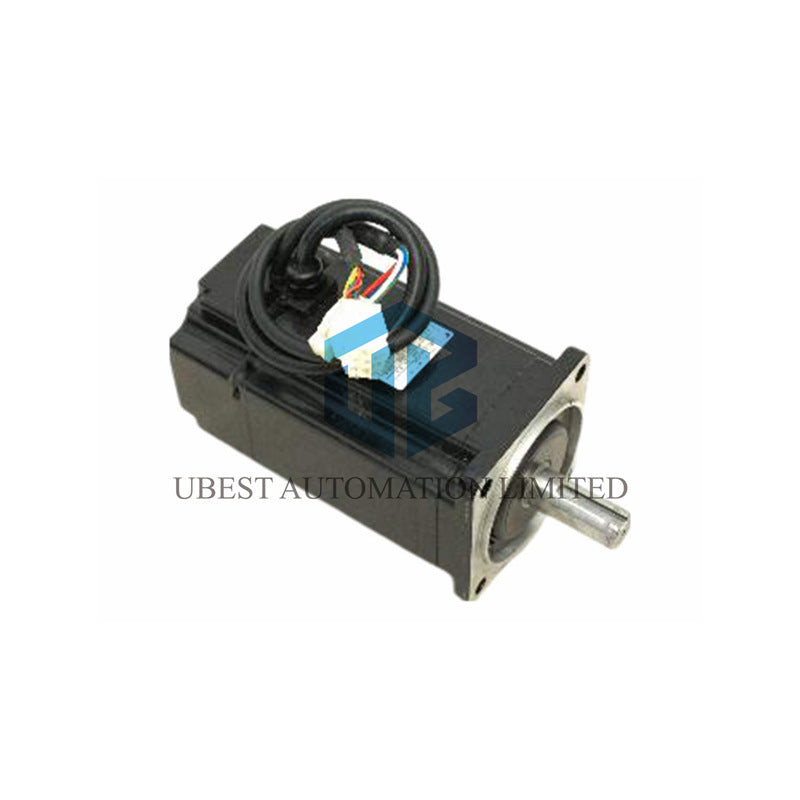

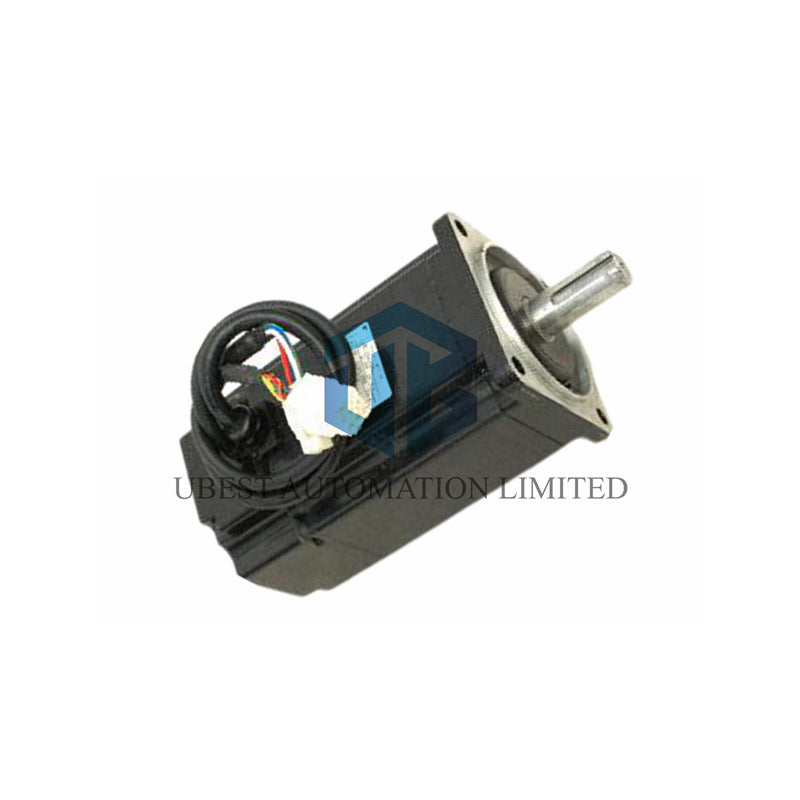

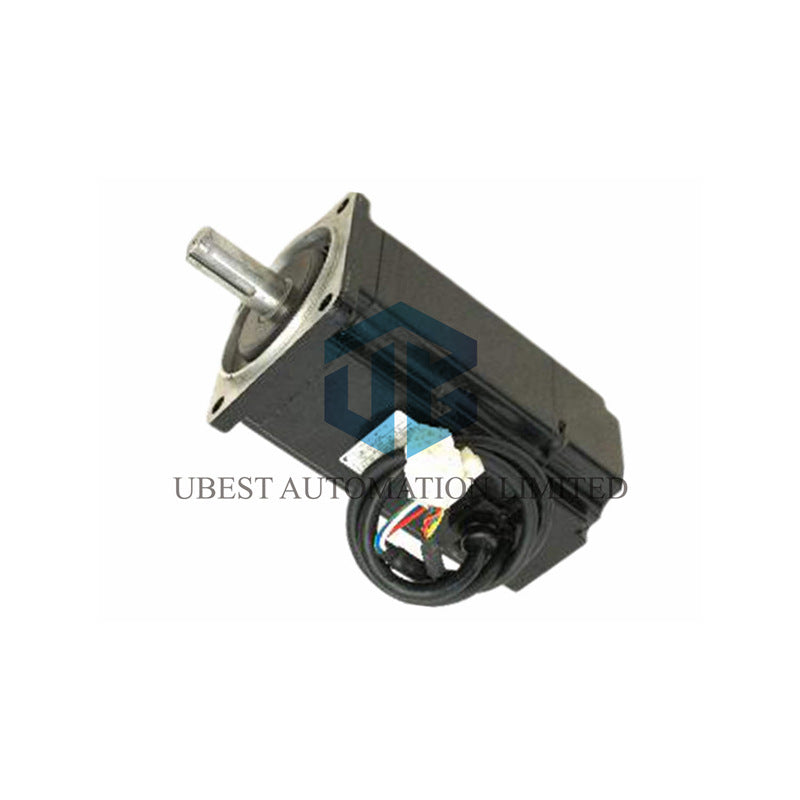

Elevate your machine's precision with the Yaskawa SGM-08U3B4L Sigma-7 series servo motor. This unit delivers 750W of power, equivalent to 1.01 HP, with a robust 2.39 Nm of continuous torque. It is engineered for demanding applications requiring smooth operation, high responsiveness, and reliable feedback.

Superior Performance in a Compact Design

• High Torque Density: Generates 2.39 Nm of continuous torque for powerful motion from a compact frame.
• Efficient Power Output: Rated at 750 Watts (1.01 HP), ideal for medium-duty automation tasks.
• Optimized for 200V Systems: Designed for direct connection to common 200 VAC industrial servo drive systems.
• Precise Speed Control: Operates at a rated speed of 3000 RPM with excellent speed regulation.
• Advanced Sigma-7 Technology: Features low vibration and low audible noise for smoother operation.

Comprehensive Technical Data Sheet

• Brand & Model: Yaskawa SGM-08U3B4L
• Series: Sigma-7 (High Performance)
• Rated Output Power: 750 W
• Rated Horsepower: 1.01 HP
• Rated Torque: 2.39 Nm
• Rated Speed: 3000 rpm
• Rated Current: 4.4 A
• Voltage Rating: 200 VAC
• Peak Torque: 7.16 Nm (300% of rated torque)
• Max Speed: 5000 rpm
• Motor Inertia (Rotor): 0.93 x 10⁻⁴ kg·m²
• Torque Constant: 0.54 Nm/A
• Back EMF Constant: 56.5 V/krpm
• Winding Resistance (line-to-line): 1.05 Ω at 20°C
• Winding Inductance (line-to-line): 5.8 mH
• Insulation Class: Class B (130°C)
• Thermal Sensor: PTC thermistor embedded for overheat protection.
• Feedback Device: 24-bit (approx. 16 million ppr) incremental encoder.
• Ambient Operating Temp: 0 to 40°C (non-condensing).
• Storage Temperature: -20 to 85°C (non-condensing).
• Protection Class: IP65 (Shaft through) / IP67 (Shaft seal)*
• Mounting: Flange mount
• Shaft: Straight shaft with keyway (standard dimensions).
• Approximate Weight: 2.27 kg (5.0 lbs)

Package Includes

• One (1) Yaskawa SGM-08U3B4L servo motor.
• One (1) motor connector pre-attached to the cable.
• Standard mounting hardware as supplied from the factory.
• All components secured in original protective packaging.

Warranty & Support Promise

• This motor is covered by a reliable 12-month warranty from the invoice date.
• The warranty ensures the product is free from defects in material and construction.
• Our experts provide technical guidance for successful system integration.

Shipping & Logistics

• We ship promptly using global express carriers: FedEx, UPS, and DHL.
• Items are carefully packed to prevent any transit damage.
• Full tracking information is provided immediately after dispatch.

Integration Expertise & FAQs

What Sigma-7 servo drive is compatible with this motor?

The Yaskawa SGM-08U3B4L pairs perfectly with Yaskawa's Sigma-7 series drives, such as the SGD7S-200A10A. The drive automatically recognizes the motor's high-resolution 24-bit encoder for optimal tuning and performance.

How does the 24-bit encoder benefit my application compared to a lower-resolution one?

The ultra-high 24-bit resolution provides extremely fine position data. This enables smoother low-speed rotation, minimizes velocity ripple, and allows for more precise positioning. It is critical for applications like semiconductor manufacturing or high-accuracy CNC indexing.

Can I operate this motor at its maximum speed of 5000 RPM continuously?

No, the rated continuous speed is 3000 RPM. You can use the 5000 RPM maximum for short durations, but sustained operation at higher speeds requires torque derating. Consult the speed-torque characteristic curve in the manual for safe operating limits.

What does the “U3B4L” suffix in the model number specifically indicate?

This suffix code defines key options: 'U' for voltage class, '3' for winding type, 'B' for shaft and key specifications, and '4L' for the feedback type (24-bit incremental encoder) and connector style. Always verify the exact configuration against the factory datasheet.

What is a critical electrical consideration during installation?

Ensure proper grounding and use shielded motor cables. Run the motor power cables and encoder feedback cables separately from high-voltage AC lines. This practice minimizes electrical noise interference, which can cause erratic motion or communication errors with the drive.
