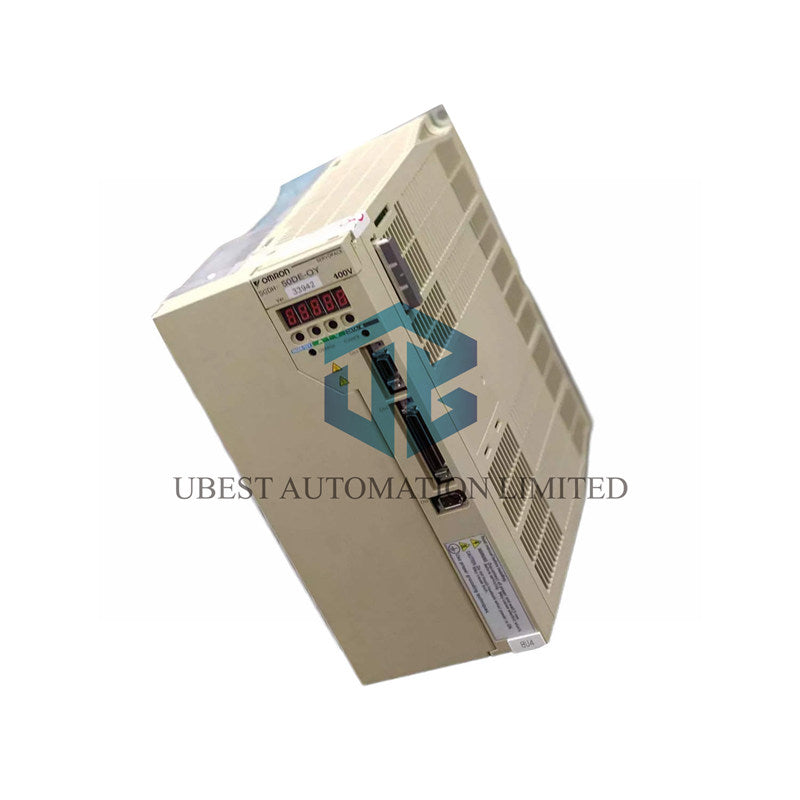

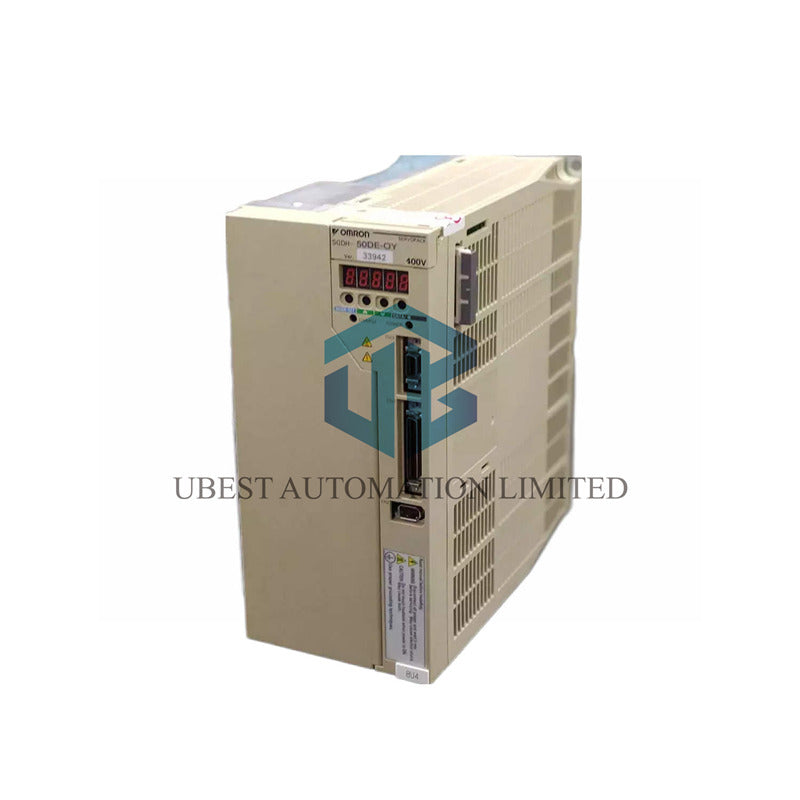

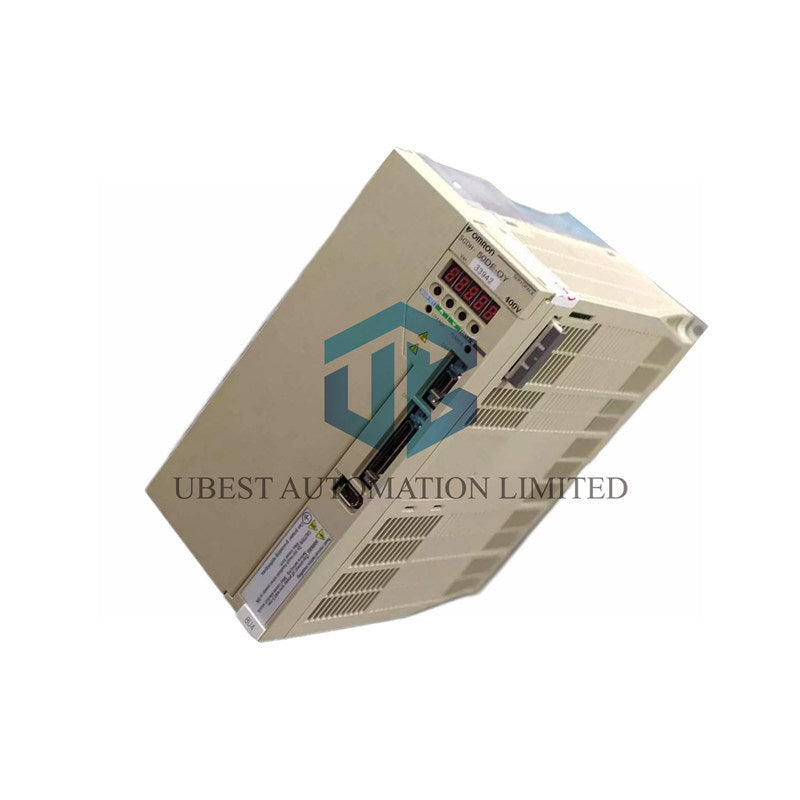

Yaskawa SGDH-50DE: Power and Precision for Demanding Motion Control

Drive your high-performance automation systems with the Yaskawa SGDH-50DE servo amplifier. This 5 kW unit from the renowned Sigma II series delivers robust 6.7 HP for precise speed and torque control. It handles industrial three-phase power directly for seamless integration into your production line.

Designed for Industrial Reliability

• High Power Density: Delivers 5 kW (6.7 HP) output from a compact, rugged chassis.
• Broad Voltage Compatibility: Connects directly to common 380-480 VAC three-phase mains power.
• Wide Speed Range: Generates output frequencies from 0 to 300 Hz for flexible motor control.
• Robust Construction: Built to perform reliably in typical industrial ambient temperatures.
• Proven Sigma II Platform: Leverages Yaskawa's trusted technology for stable, responsive servo control.

Complete Technical Specifications

• Brand & Model: Yaskawa SGDH-50DE (Sigma II Series)
• Rated Output Power: 5.0 kW
• Equivalent Horsepower: 6.7 HP
• Input Power Supply: 380-480 VAC, 3-Phase, 50/60 Hz
• Rated Input Current: 14.9 A
• Rated Output Current: 16.5 A
• Maximum Output Voltage: 0 - 480 VAC (corresponds to input voltage)
• Control Method: IGBT PWM Control (Sinusoidal Drive)
• Feedback Support: Standard for Sigma II servomotors (incremental encoder).
• Communication Interface: Pulse train input for position/speed command; standard digital I/O.
• Protection Functions: Overcurrent, Overvoltage, Undervoltage, Overheat, Motor Overload.
• Ambient Operating Temperature: 0 to 55 °C (32 to 131 °F)
• Storage Temperature: -20 to 65 °C (-4 to 149 °F)
• Vibration Resistance: 5.9 m/s² (0.6 G) max.
• Approximate Weight: 15.0 lbs (6.8 kg)

Package Contents

• One (1) Yaskawa SGDH-50DE Servo Amplifier main unit.
• One (1) set of standard connector covers (as shipped from factory).
• Relevant mounting hardware and documentation.
• All items are secured in original protective packaging.

Warranty Information

• This product is covered by a comprehensive 12-month warranty period.
• The warranty guarantees the drive is free from operational defects upon arrival.
• We provide full support to assist with any technical queries during the warranty.

Shipping & Delivery Options

• We ship worldwide using premium express services: FedEx, UPS, and DHL.
• Orders are processed and dispatched promptly from our stocked warehouse.
• You will receive detailed tracking information via email after shipment.

Expert FAQs for System Integration

What size Sigma II servomotor should I pair with the SGDH-50DE?

Match the amplifier's 16.5A continuous output current to a motor with a similar or lower rated current. Common matches include the SGMGH-44A or SGMSH-55A models. Always consult the Yaskawa Sigma II sizing catalog for the optimal torque-speed combination for your load.

Can I use this drive on a 400VAC European or 480VAC North American line?

Yes, the Yaskawa SGDH-50DE input range of 380-480VAC covers both common industrial voltages. You do not need to change taps or hardware. The drive automatically adapts to the supplied voltage within this range.

How do I handle regenerative energy from the motor with this amplifier?

The SGDH-50DE requires an external regenerative resistor for applications with high inertia or frequent deceleration. You must select and install an appropriately sized resistor on the drive's designated terminals to prevent overvoltage faults.

What is the most common setup mistake with this servo drive?

Incorrectly setting the motor model and feedback type parameters. If these auto-tuning parameters are wrong, the system may exhibit vibration, overheating, or erratic motion. Always correctly input the exact servomotor model code from its nameplate during initial setup.

Is there a recommended maintenance schedule for long-term reliability?

Perform periodic visual inspections for dust accumulation and check terminal tightness annually. The key maintenance item is the DC bus capacitors. For continuous operation, plan for a professional inspection or replacement of electrolytic capacitors after approximately 7-10 years of service.
