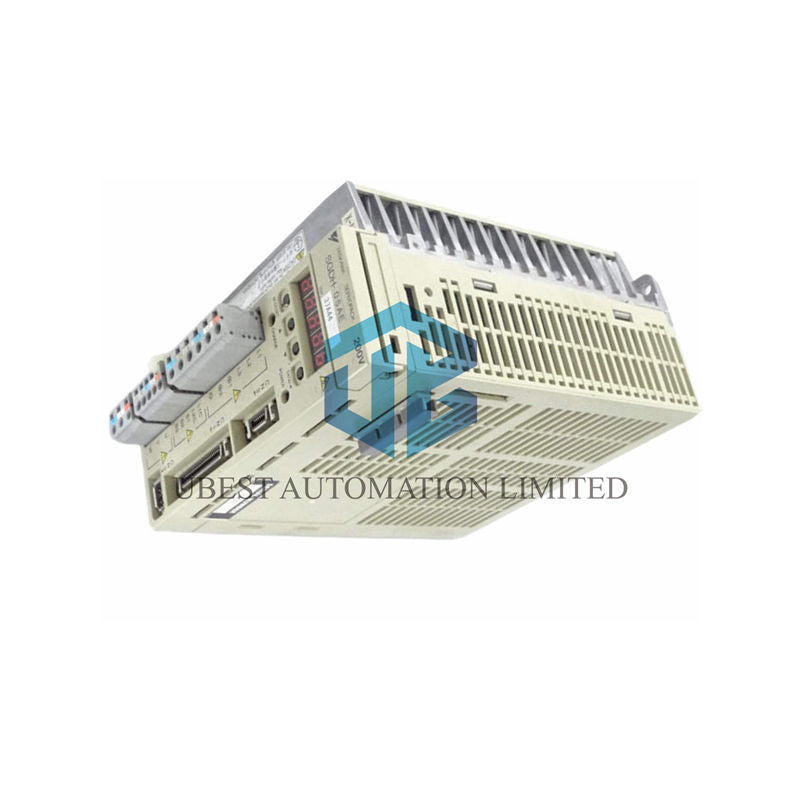

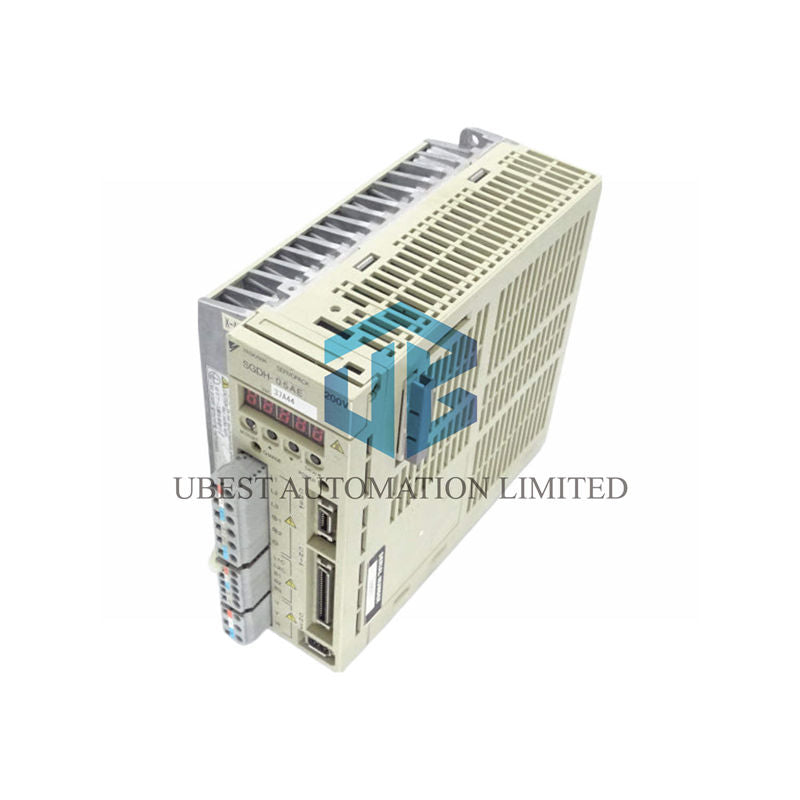

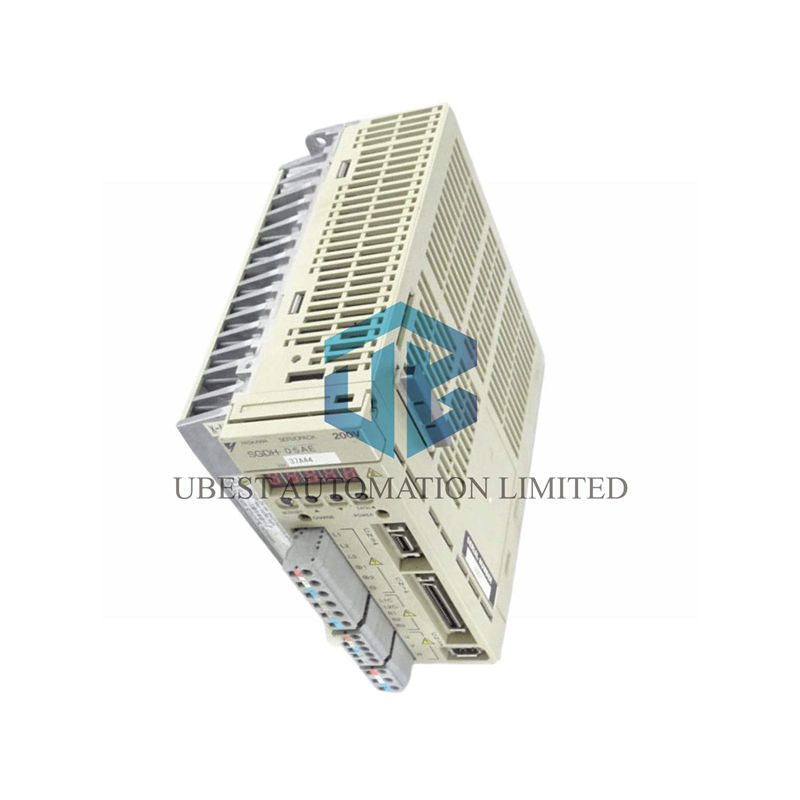

Yaskawa SGDH-05AE Servopack Drive

Control your servo motors precisely. The Yaskawa SGDH-05AE is a compact 500W servopack. It uses 200-230VAC 3-phase power. This drive is perfect for small to medium automation tasks.

Drive Overview & Main Benefits

• Compact size saves valuable panel space.
• Provides smooth and accurate motor control.
• Works with both 50 Hz and 60 Hz power supplies.
• Includes protection for encoder connection issues.
• Easy to set up and integrate into your system.

Complete Product Specifications

• Brand & Model: Yaskawa SGDH-05AE
• Product Type: Servopack Drive
• Power Rating: 500 W (0.67 HP)
• Input Voltage: 200-230 VAC, 3-Phase
• Input Current: 4.0 A
• Input Frequency: 50/60 Hz
• Output Current: 3.8 A
• Output Voltage: 0-230 VAC
• Key Protection: Encoder Open Circuit Detection
• Ambient Temperature: 0°C to +55°C
• Dimensions (WxHxD): 20 mm x 142 mm x 128 mm
• Weight: 5.0 lbs (2.27 kg)

Typical Applications

The Yaskawa SGDH-05AE is versatile for many industries. It is a reliable choice for powering servo motors.

• Small CNC machines and routers.
• Precision assembly and pick-and-place units.
• Indexing tables and rotary actuators.
• Textile and small packaging machines.
• Automated testing equipment.

Service & Delivery

We offer fast worldwide delivery. Choose from FedEx, UPS, or DHL for shipping. This product is covered by a solid 12-month warranty from the date of purchase.

Technical FAQ

What size servo motor can the SGDH-05AE drive?

It is designed for motors up to 500W (0.67 HP). Always check that your motor's rated current is within the drive's 3.8A output capacity.

What does "fully closed encoder open circuit detection" mean?

It is a safety feature. The drive monitors the encoder cable connection. It will stop the motor and generate an alarm if the cable breaks or disconnects, preventing runaway.

Can I use this drive with a single-phase input?

No. The SGDH-05AE requires a three-phase (3-phase) 200-230VAC power input for proper operation.

Are the control cables included?

No, the drive is supplied alone. You need to purchase the motor power cable, encoder cable, and control signal cables separately.

From a maintenance perspective, what is a common failure point?

The cooling fan. Ensure the drive's vents are not blocked and the internal fan is clean. Overheating due to a failed or dirty fan is a frequent cause of premature drive failure in industrial environments.
