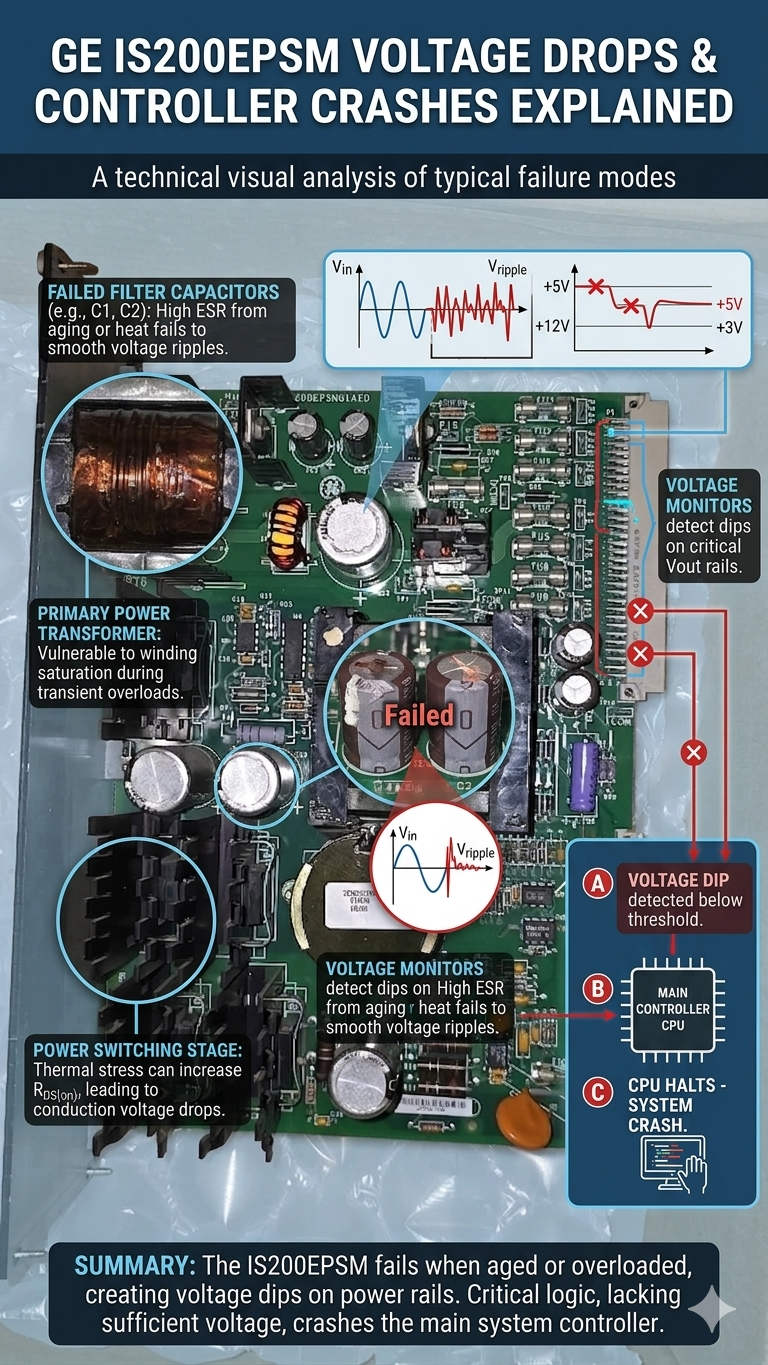

Can GE IS200EPSM Power Supply Voltage Drops Cause Controller Crashes?
The IS200EPSMG1AED, IS200EPSMG1A, and IS200EPSMG2A serve as critical power supply modules within GE EX2100 excitation systems and Mark VI/VIe control architectures. Their primary role involves delivering stable, regulated DC power rails to processors and I/O modules. In heavy industries like power generation and oil and gas, power stability directly dictates total system availability. Even a brief voltage sag on these rails can lead to controller resets, communication interruptions, or turbine trips. Therefore, maintaining these modules is crucial to avoiding catastrophic production downtime across your industrial automation footprint.
The Critical Impact of 5V Logic Supply Rail Instability
The 5V DC rail represents the most vulnerable circuit because it powers sensitive CPUs, flash memory, and communication processors. When this voltage drops below the standard 5% design tolerance, severe control anomalies occur almost instantly. Operators frequently observe unexpected controller reboots, Mark VI watchdog faults, and sudden HMI communication drops. A transient voltage sag lasting only milliseconds can exhaust onboard capacitive hold-up times. As a result, the processor executes an emergency reset, which abruptly halts critical turbine control sequences in modern factory automation environments.
How 24V Faults Disrupt I/O and Field Device Performance
The 24V output rail typically energizes digital input circuits, relay drivers, solenoid interfaces, and external field instrumentation. When this supply sags under heavy dynamic loads, engineers often face frustrating intermittent control symptoms. Typical issues include false digital input status changes, unexpected contactor releases, and noticeable relay chatter. In complex petrochemical plants, these power fluctuations generate ghost alarms that mask true process conditions. Consequently, technicians waste valuable time troubleshooting field instruments when the actual root cause resides entirely within the decaying power module of the control systems.
Maintaining 15V Analog Power Integrity for Excitation Control
The ±15V analog supply loop supports operational amplifiers, sensor interfaces, and vital excitation control feedback circuits. When this module section degrades, severe analog input drift and excessive signal noise immediately pollute the control loop. In GE EX2100 excitation systems, this instability directly compromises generator voltage regulator accuracy and tracking performance. Moreover, prolonged operation with unstable analog power accelerates component aging inside connected I/O packs. Therefore, maintaining clean 15V rails is essential to ensuring high-level mathematical compliance in your automated processes.
Advanced Field Installation and Diagnostics for EPSM Hardware
A frequent maintenance mistake involves measuring output voltages while the control system rests completely unloaded. Many failing EPSM modules show perfect nominal voltages until the processors and I/O packs begin drawing dynamic current. Therefore, technicians must measure the 5V, 15V, and 24V rails under normal runtime conditions using an oscilloscope. This practice allows you to detect harmful transient dips and high-frequency ripple. In installations older than ten years, aging electrolytic capacitors represent the primary cause of intermittent voltage drops and unexplained controller lockups.
Engineering Checklist for EPSM Maintenance
- ✅ Dynamic Testing: Always test voltage stability under full system load rather than open-circuit conditions.
- ⚙️ Capacitor Inspection: Check for physical swelling, leaks, or elevated operating temperatures on old boards.
- 🔧 Ground Verification: Ensure cabinet grounding resistance complies with IEEE standards to eliminate external EMI.
- 📈 Oscilloscope Analysis: Verify that DC output ripple stays within the manufacturer's tight millivolt tolerances.
Expert Diagnostics from Ubest Automation Limited
At Ubest Automation Limited, our field experience shows that many "mysterious CPU failures" are actually power supply problems. When a Mark VI or Mark VIe controller crashes without generating a specific software fault code, the EPSM module should be your primary suspect. Blindly substituting processor boards without verifying the power backplane can damage new hardware and inflate your repair budget. We highly recommend keeping verified, revision-matched EPSM spares on hand to ensure rapid recovery during emergency outages.
To source genuine GE power modules or consult with our technical team on system retrofits, please visit Ubest Automation Limited. We provide the reliable hardware required to stabilize your critical plant infrastructure.
Application Scenario: Eliminating Watchdog Trips in a Gas Turbine
A combined-cycle power plant experienced weekly watchdog timeouts on a Mark VIe controller, causing severe generation losses. Plant engineers initially suspected a faulty processor board. However, after connecting an oscilloscope to the backplane, they captured a 5V rail drop down to 4.6V whenever the heavy field relays cycled. Replacing the degraded IS200EPSMG1A module instantly solved the issue. The control system has since achieved over a year of uninterrupted uptime.
Industrial Power Supply Frequently Asked Questions
Not always. While they share the same core architecture, different group versions (G1 vs G2) denote distinct power handling capacities, component generations, or specific backplane pin configurations. Mixing revisions without cross-checking your original GE cabinet drawings can trigger configuration mismatches or prevent the system from booting.
Poor bonding introduces floating neutral voltages into the AC input side of the module. This imbalance disrupts the internal switching regulator circuitry, forcing the module to work harder to maintain DC stability. Over time, this extra thermal stress causes premature capacitor degradation and output voltage sag.
Yes, it can. If an external 24V solenoid shorts out and the branch circuit lacks proper individual fusing, the excessive current draw will pull down the entire 24V rail. This overcurrent condition forces the EPSM into a thermal fold-back mode, which can eventually burn out its internal power transistors.
