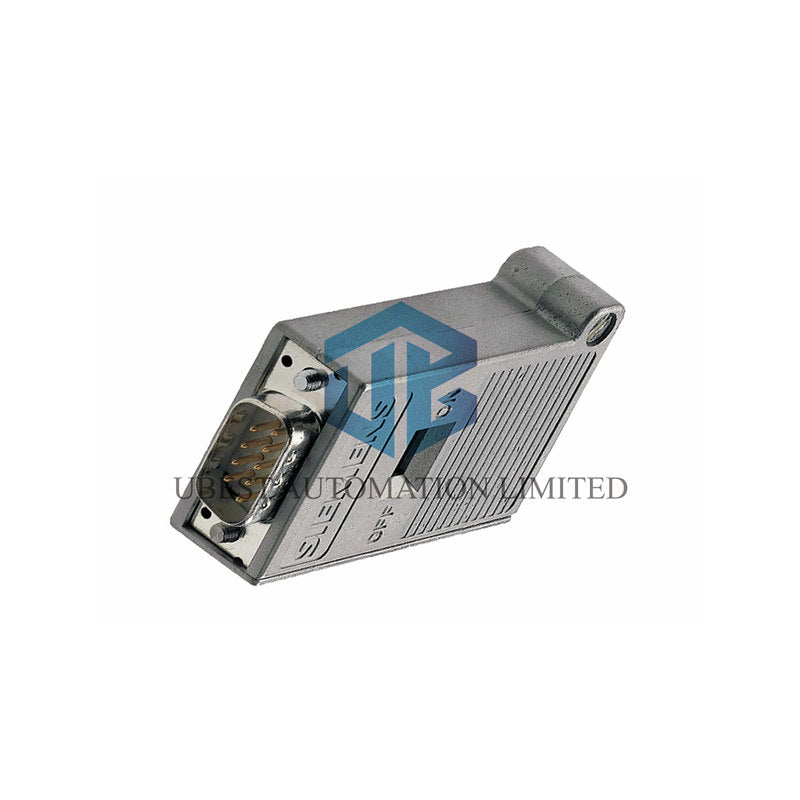

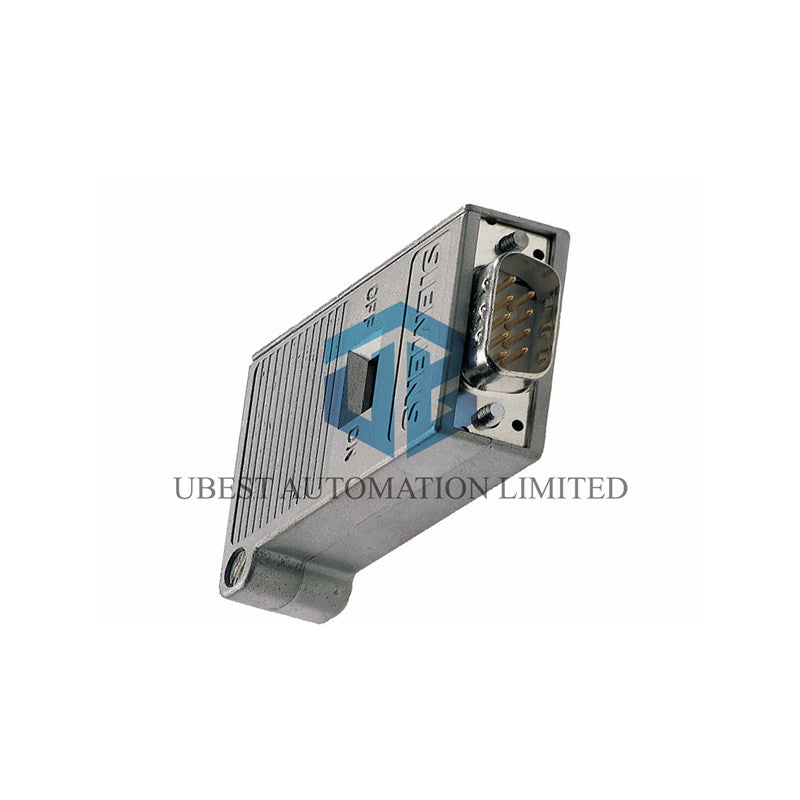

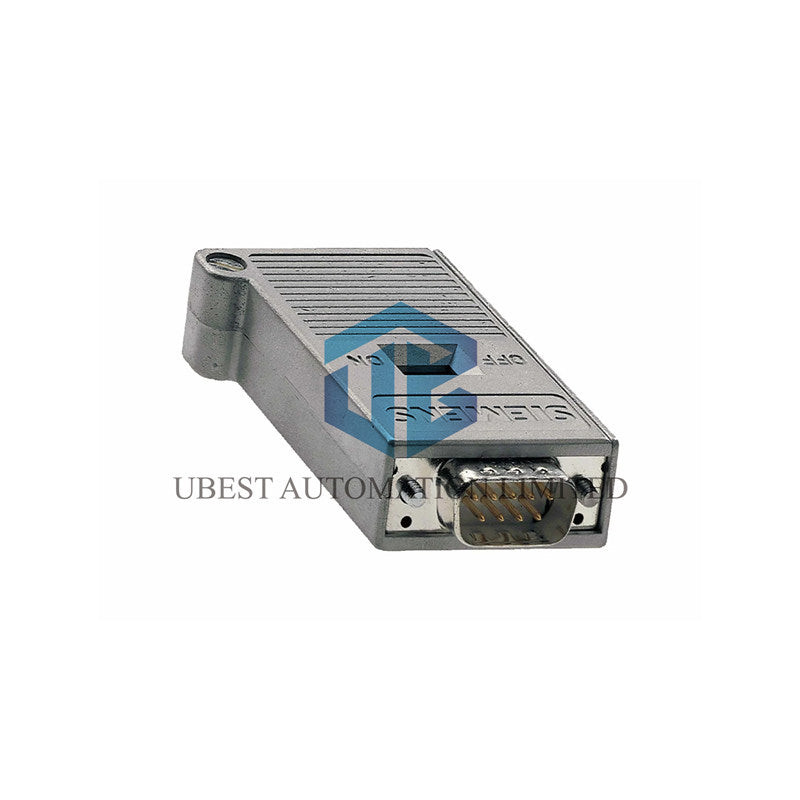

Siemens 6GK1500-0EA02 PROFIBUS Bus Connector
Professional bus connector for industrial networks. Perfect for connecting PROFIBUS devices with reliable performance and easy installation.
- Axial cable outlet for clean cable routing
- Metal housing for durability
- Switchable terminating resistor for network flexibility
- High speed up to 12 Mbit/s
- Easy installation with screw terminals
Technical Specifications
- Brand: Siemens
- Model: 6GK1500-0EA02
- Product Type: PROFIBUS Bus Connector
- Transfer Rate: 9.6 kbit/s to 12 Mbit/s
- Connections: 2 for bus cables, 1 for devices
- Device Connector: 9-pin SUB-D
- Cable Connection: Terminal block
- Housing Material: Metal
- Cable Outlet: 180° axial design
- Dimensions: 57 x 39 x 15 mm
- Weight: 100 grams
- Protection Class: IP20
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -25°C to 80°C
- Terminating Resistor: Integrated, switchable
- Silicone-free: Yes
- RoHS Compliant: Yes
Compatible Devices
- SIMATIC Industrial PCs
- SIMATIC Operator Panels
- Optical Link Modules (OLMs)
- All PROFIBUS network devices
- Industrial automation equipment
Installation Guide
- Use proper PROFIBUS cable types
- Set terminating resistor at network ends
- Ensure secure cable connections
- Route cables away from power lines
- Verify switch settings before powering
Frequently Asked Questions
Where should I use the terminating resistor?
Only at the first and last devices in your PROFIBUS network segment.
What cable types are compatible?
Standard PROFIBUS cables with proper impedance and shielding characteristics.
Can I use this connector in harsh environments?
IP20 rating makes it suitable for control cabinets, not direct outdoor exposure.
What is the maximum network speed?
12 Mbit/s, which is the maximum PROFIBUS DP specification.
How many devices can I connect with one 6GK1500-0EA02?
It provides one device connection and maintains two bus cable connections for daisy-chaining.
