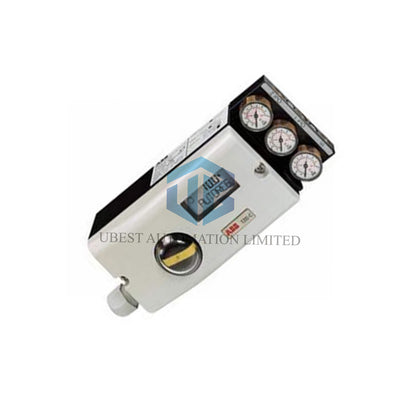

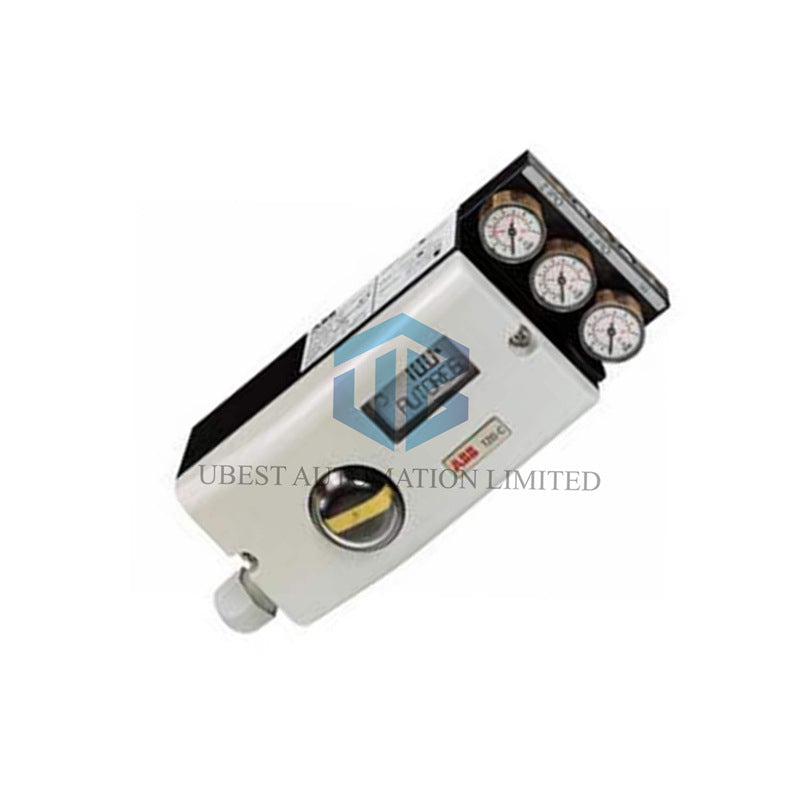

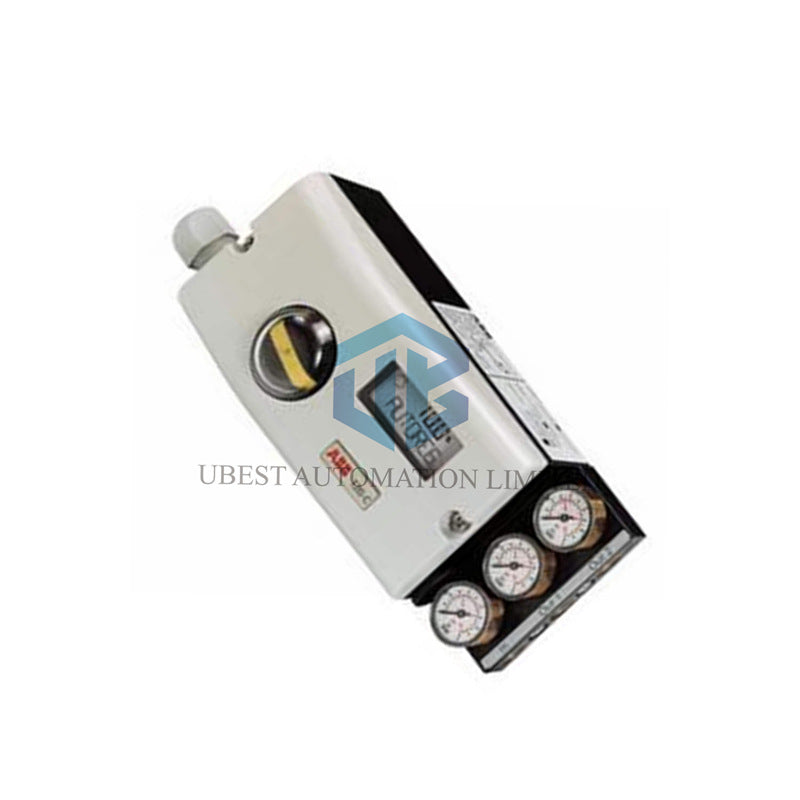

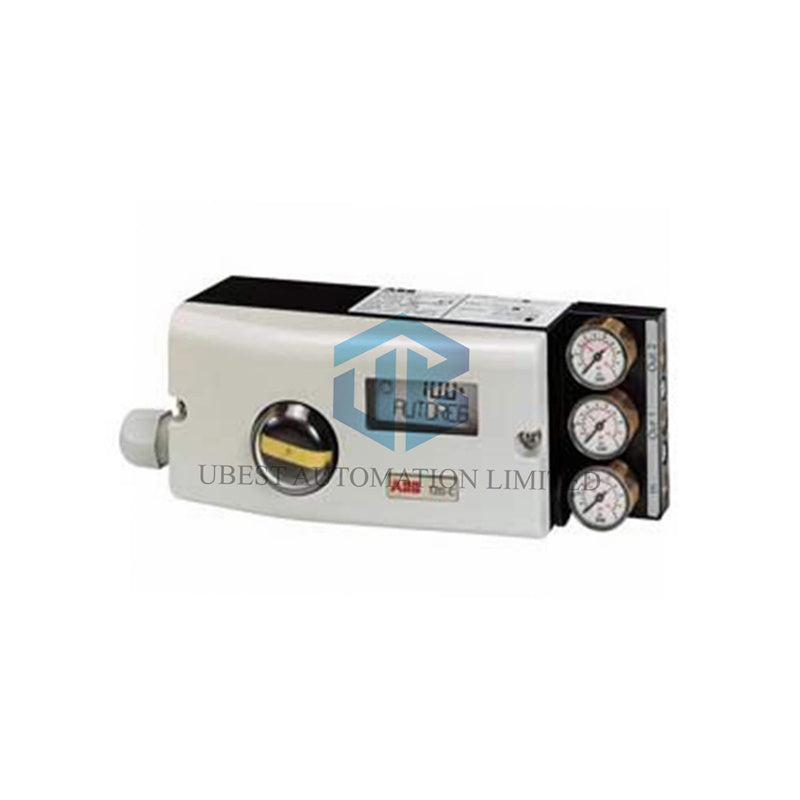

ABB TZIDC-120 Smart Valve Positioner – HART Communication Ready

Upgrade your valve control with the ABB V18345-1020521001. This smart electro-pneumatic positioner brings advanced features to your plant. It supports HART communication for easy setup and monitoring. The device works with both single and double-acting actuators. Its robust IP65 aluminum case protects against tough industrial conditions. Enjoy precise control and reliable performance.

Your Product's Complete Feature Map: V18345-1020521001

The full model number V18345-1020521001 details every feature. Here is a clear breakdown of what each digit provides for your specific unit.

• Core Unit: V18345 – TZIDC intelligent electro-pneumatic positioner.
• Position 1 (Housing): '1' – IP65/NEMA 4X aluminum enclosure.
• Position 2 (Type): '0' – Standard intelligent positioner unit.
• Position 3 (Input): '2' – 4-20mA with HART protocol (FSK module).
• Position 4 (Ex Protection): '0' – Standard, non-explosion proof.
• Position 5 (Output): '5' – Double-acting output with fail-freeze.
• Position 6 (Ports): '2' – 1/2" NPT electrical, 1/4" NPT pneumatic.
• Position 7 (Feedback): '1' – Includes analog 4-20mA position feedback.
• Position 8 (Digital Kit): '0' – No digital feedback kit.
• Position 9 (Reserved): '0' – Standard placeholder.
• Position 10 (Finish): '1' – Standard black design.

Key Performance Specifications

• Input Signal: 4 to 20 mA with integrated HART communication.
• Output Action: Double-acting for controlling two air ports.
• Safe State: Fail-freeze function locks air on power loss.
• Position Feedback: Analog 4-20 mA signal for valve position.
• Linearity Accuracy: High precision with ≤ 0.5% deviation.
• Adjustable Dead Band: Configurable from 0.1% to 10%.
• High Resolution: More than 4000 steps for smooth control.
• Fast Response: 20 millisecond sampling rate.
• Temperature Stable: ≤ 0.5% error per 10°C change.
• Vibration Resistant: ≤ ±1% error up to 10g at 80Hz.
• Seismic Rating: Meets DIN/IEC 68-3-3 Class III standards.
• Mounting: No performance effect from orientation.
• Enclosure: Durable IP65 / NEMA 4X aluminum housing.
• Weight: Lightweight at 1.7 kg for easy handling.

Installation & System Integration

This positioner fits many setups. Mount it on linear actuators per DIN/IEC 534. It also works with rotary actuators per VDI/VDE 3845. The HART protocol allows digital configuration from your control room. Use standard tools for easy calibration and diagnostics. Ensure clean, dry air supply for best performance.

Our Commitment to Your Success

We provide strong support for your operations. Your order comes with a full 12-month warranty. This covers any material or workmanship issues. We ship quickly to keep your projects on time. Choose from FedEx, UPS, or DHL for reliable global delivery.

Frequently Asked Questions

What is the main benefit of the HART communication in this model?

HART allows two-way digital communication. You can configure, calibrate, and diagnose the V18345-1020521001 remotely using standard tools, saving time.

What does 'double-acting, fail-freeze' mean for operation?

It controls actuators with two air ports. During a power failure, it locks both air outputs. This holds the valve securely in its last position.

Does this model provide a valve position signal?

Yes. It includes an analog feedback module. This gives a separate 4-20 mA signal that matches the valve's 0-100% position.

Can I adjust the control response sensitivity?

Yes. The adjustable dead band from 0.1% to 10% lets you prevent small actuator movements from signal noise.

Is this device suitable for high-vibration environments?

Absolutely. It is tested to perform within ±1% accuracy under strong vibrations, making it ideal for pumps and compressors.
