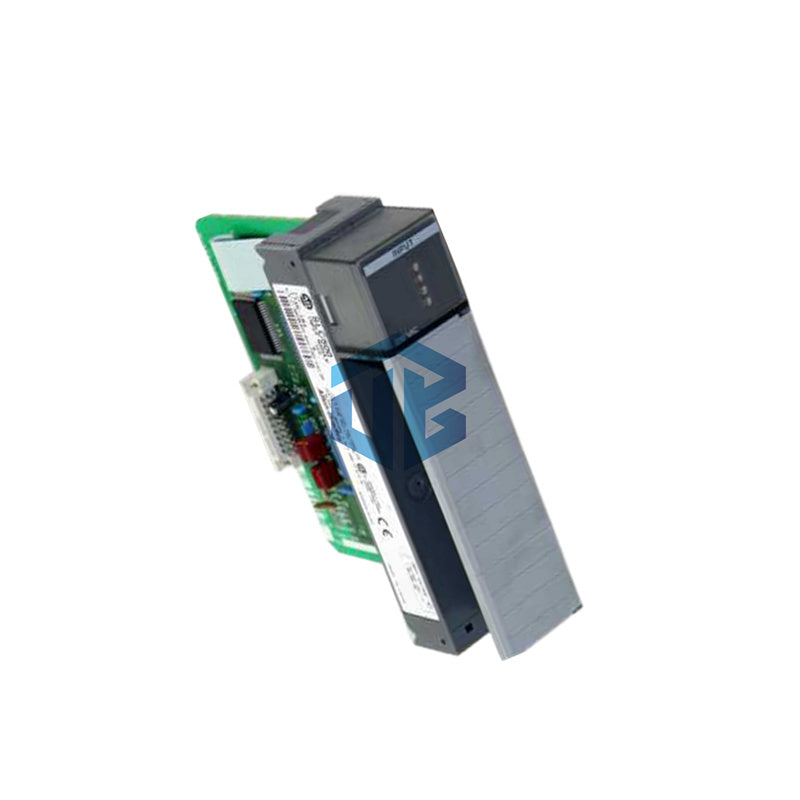

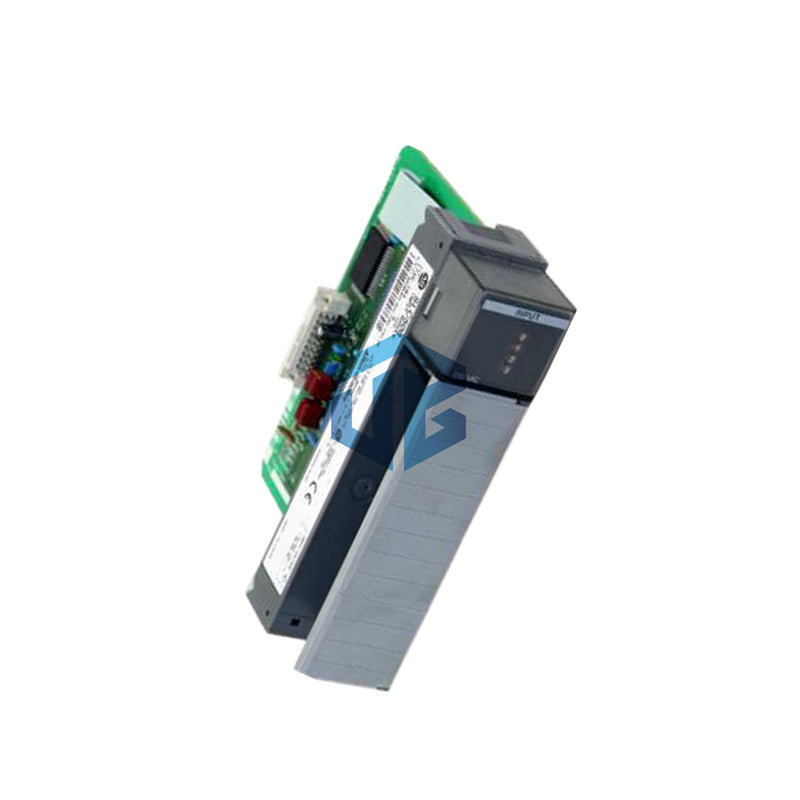

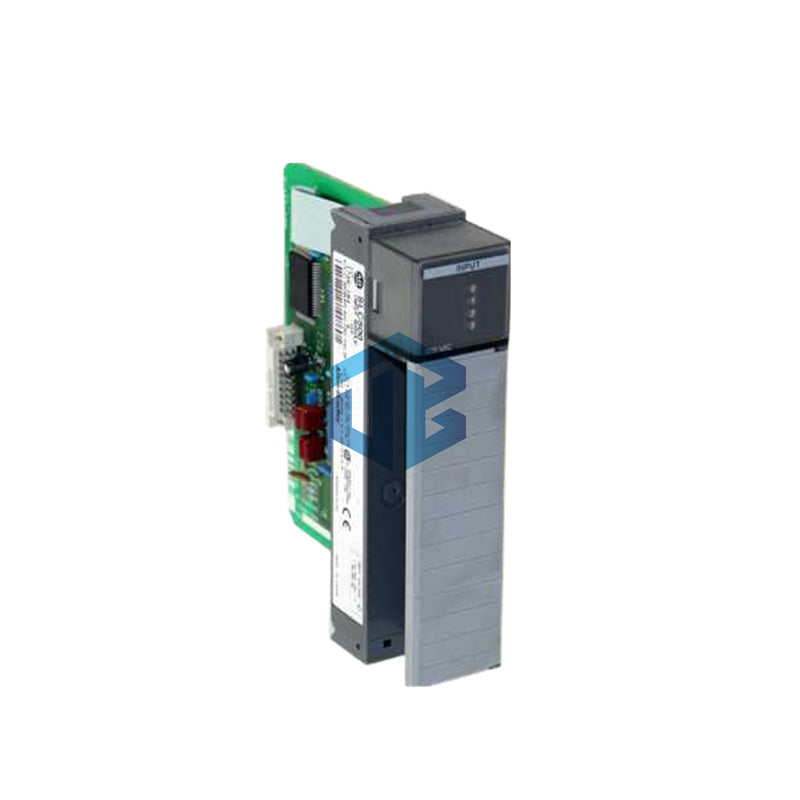

Allen-Bradley 1746-IM4 Digital AC Input Module
Product Overview
The Allen-Bradley 1746-IM4 is a 4-input AC digital module for SLC 500 systems. It works with 170-265V AC power and fits into 1746 I/O chassis. This module is perfect for general industrial use with fast response times and safe operation.
Technical Specifications
Brand: Allen-Bradley
Model: 1746-IM4 (Complete Suffix Information)
Series: SLC 500
Module Type: Digital AC Input
Voltage Range: 170-265V AC
Number of Inputs: 4
Input Current: 12mA at 240V AC
Signal Delay: 35ms ON / 45ms OFF
Backplane Current: 35mA at 5V DC
Operating Temperature: 0 to 60°C (32 to 140°F)
Power Dissipation: 1.6W total
Installation Guide
Install in 1746 I/O chassis using 1746-HT or 1746-HCA connectors. Ensure proper voltage range and follow safety rules. The module needs 5V DC from backplane.
Compatibility
Works with SLC 500 series controllers and 1746 I/O chassis. Compatible with standard industrial control systems.
Certifications
UL, CSA, C-UL certified for hazardous locations. Meets NEMA ICS 2-230 noise immunity standards.
Package Includes
• One 1746-IM4 Module
• Installation Documentation
