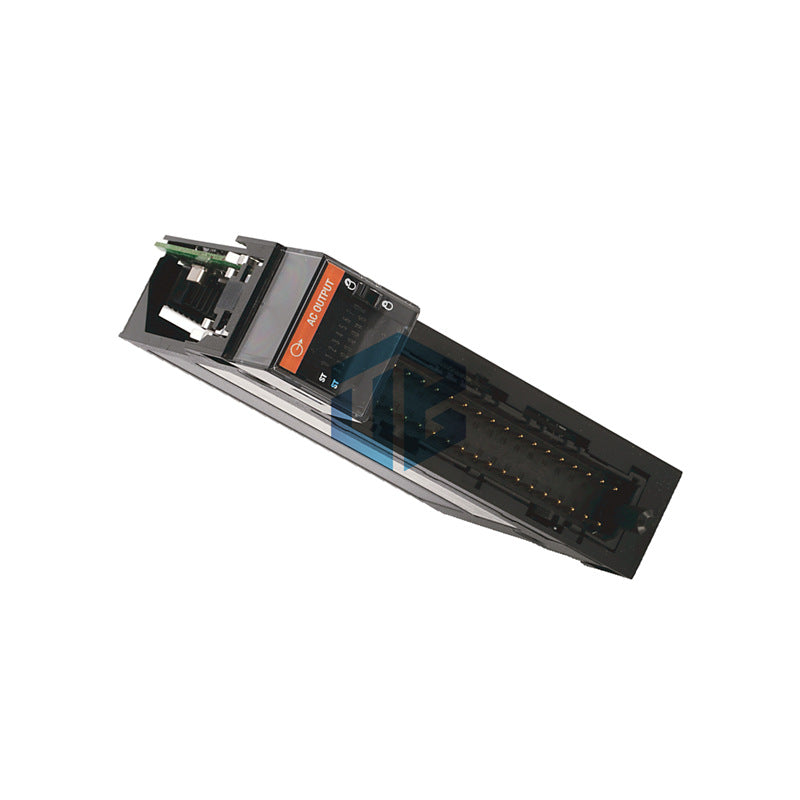

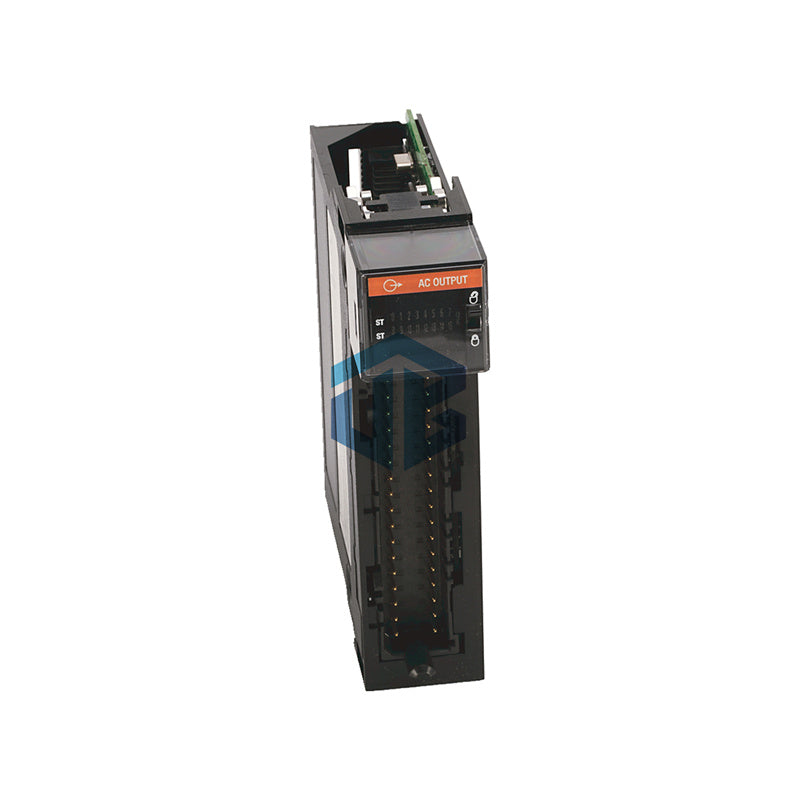

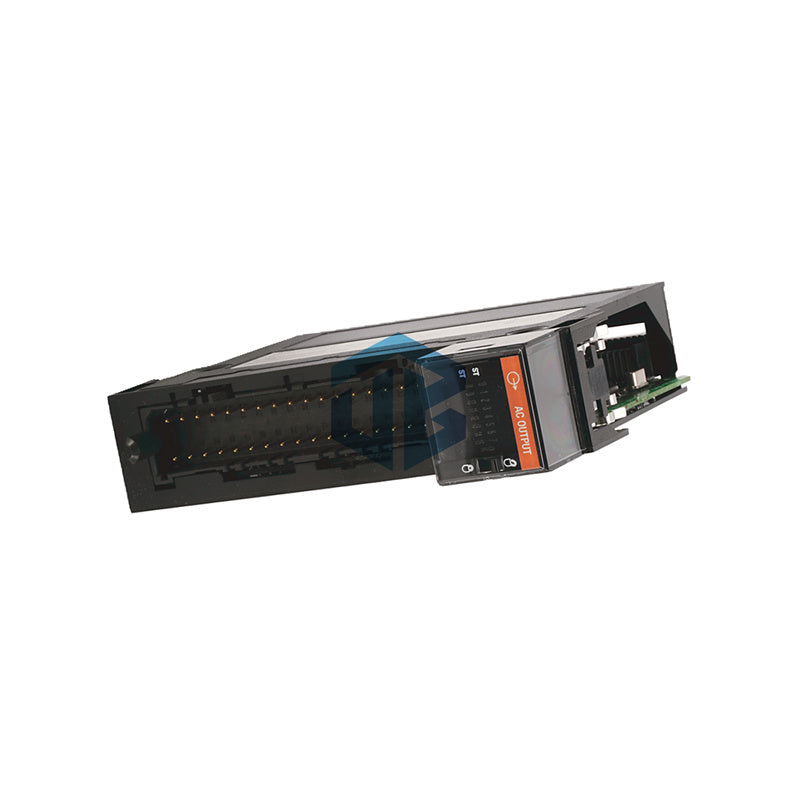

Allen-Bradley 1756-OA16IK ControlLogix Isolated AC Output Module
The 1756-OA16IK delivers reliable power control with 16 individually isolated outputs. This 1756-OA16IK module is designed for demanding industrial applications requiring safe, isolated switching.
Technical Specifications
- Brand: Allen-Bradley
- Series: ControlLogix
- Part Number: 1756-OA16IK
- Module Type: Isolated AC Output
- Number of Outputs: 16 points
- Voltage Range: 74-265V AC
- Current per Point: 2A @ 30°C, 1A @ 60°C
- Total Module Current: 5A @ 30°C, 4A @ 60°C
- Power Dissipation: 5.5W maximum
- Isolation Voltage: 50V continuous
- Backplane Power: 300mA @ 5V, 3mA @ 24V
- Connector Type: 36-pin
Installation & Compatibility
This module installs in any ControlLogix chassis slot. Use with 1756-TBCH or 1756-TBS6H removable terminal blocks for easy wiring.
Safety & Protection
- Individual isolation for each output channel
- Conformal coated for environmental protection
- 50V continuous isolation rating
- Wide operating temperature range
Warranty & Shipping
All orders include a 12-month warranty. We ship internationally via FedEx, UPS, and DHL.
Frequently Asked Questions
- What is the maximum voltage rating? 265V AC continuous operation.
- How many outputs are isolated? All 16 outputs are individually isolated.
- What terminal blocks are compatible? 1756-TBCH and 1756-TBS6H.
- What is the power consumption? Maximum 5.5 watts at 60°C.
- Is there environmental protection? Yes, conformal coating is standard.
For complete technical details: Download the full specification sheet here.
